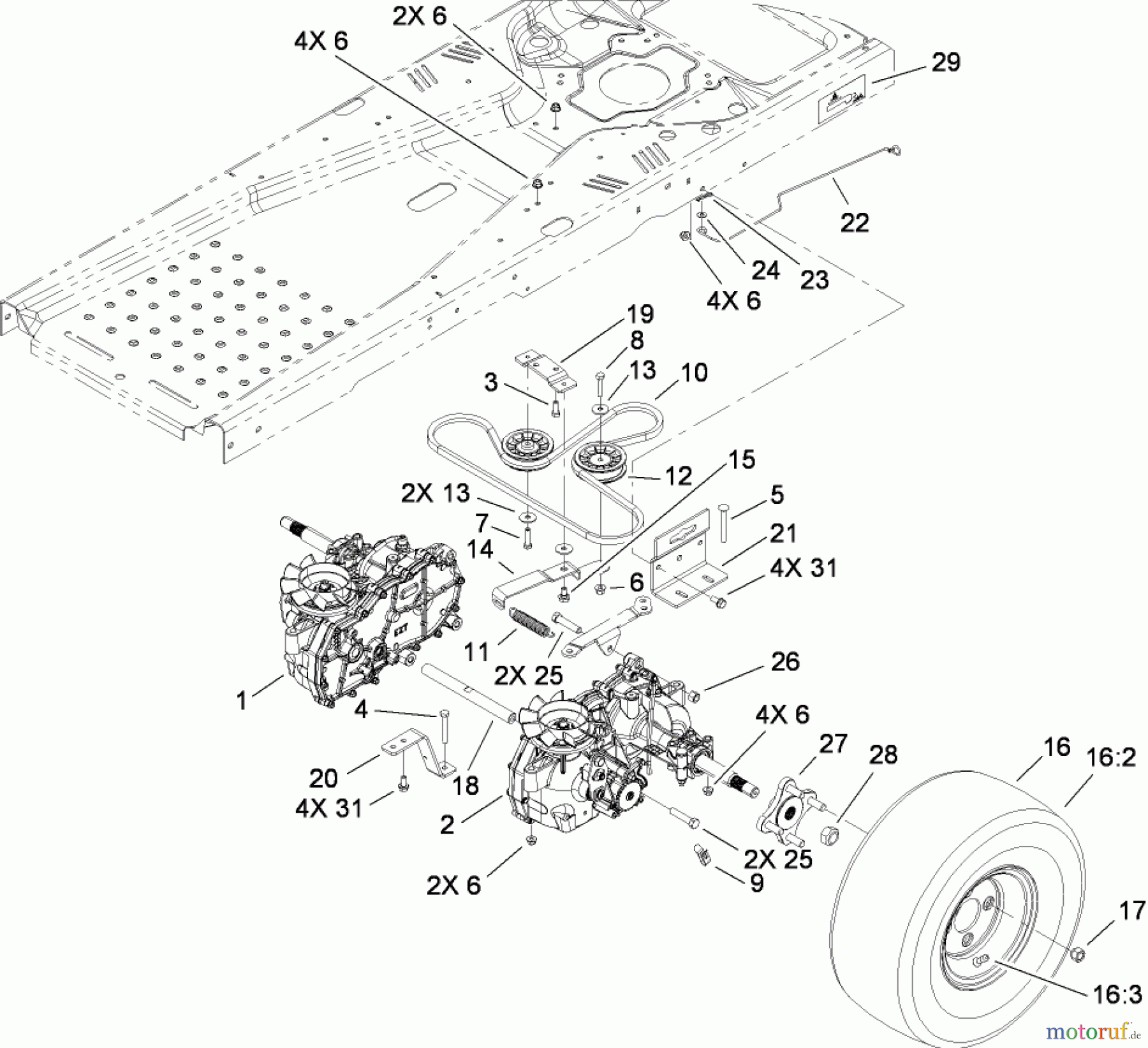

Toro 74360 (Z4200) - TimeCutter Z4200 Riding Mower, 2009 (290000001-290001198) HYDRO DRIVE ASSEMBLY Ricambi

HYDRO DRIVE ASSEMBLY 74360 (Z4200) - Toro TimeCutter Z4200 Riding Mower, 2009 (290000001-290001198)

Toro Neu Mowers, Zero-Turn 74360 (Z4200) - Toro TimeCutter Z4200 Riding Mower, 2009 (290000001-290001198) HYDRO DRIVE ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR120-5501HYDRO - RH
2 TR120-5500HYDRO - LH
3 TR322-4Schraube
4 TR322-11SCREW-HH
5 TR3230-9SCREW-CARR
6 TR104-8300Mutter
7 TR322-6Schraube
8 TR322-7Schraube
9 TR110-6677CLIP-SPRING
10 TR110-6774V-BELT
11 TR63-1590Federspanner
12 TR110-6775PULLEY-IDLER
13 TR5-4460Scheibe
14 TR110-1925ARM-IDLER
15 TR37-8771Schraube
16 TR110-6881WHEEL AND TIRE ASM
16:2 TR110-6885TIRE
16:3 TR5108VENTIL
16:99 TR107-2491TUBE-TIRE
17 TR242-50Mutter
18 TR110-6807SHAFT-CROSS
19 TR110-1926PLATE-PIVOT
20 TR110-6806-03STRAP-TORQUE
21 TR110-6878-03SUPPORT-HYDRO
22 TR110-6787ROD-BYPASS
23 TR1-806003HAARNADELSICHERUNG
24 TR3256-22Scheibe
25 TR324-8Schraube
26 TR3296-48Stopmutter
27 TR112-3979HUB ASM
28 TR112-3982NUT-LOCK
29 TR114-8532DECAL-TRANSPORT, LH
30 TR114-8531DECAL-TRANSPORT, RH
31 TR3234-47SCREW-HHF
