Toro 74360 (Z4200) - TimeCutter Z4200 Riding Mower, 2008 (280000001-280999999) CRANKCASE ASSEMBLY KOHLER SV590-0019 Ricambi

• Start
• Toro Neu
• Mowers, Zero-Turn
• 74360 (Z4200) - Toro TimeCutter Z4200 Riding Mower, 2008 (280000001-28
• CRANKCASE ASSEMBLY KOHLER SV590-0019

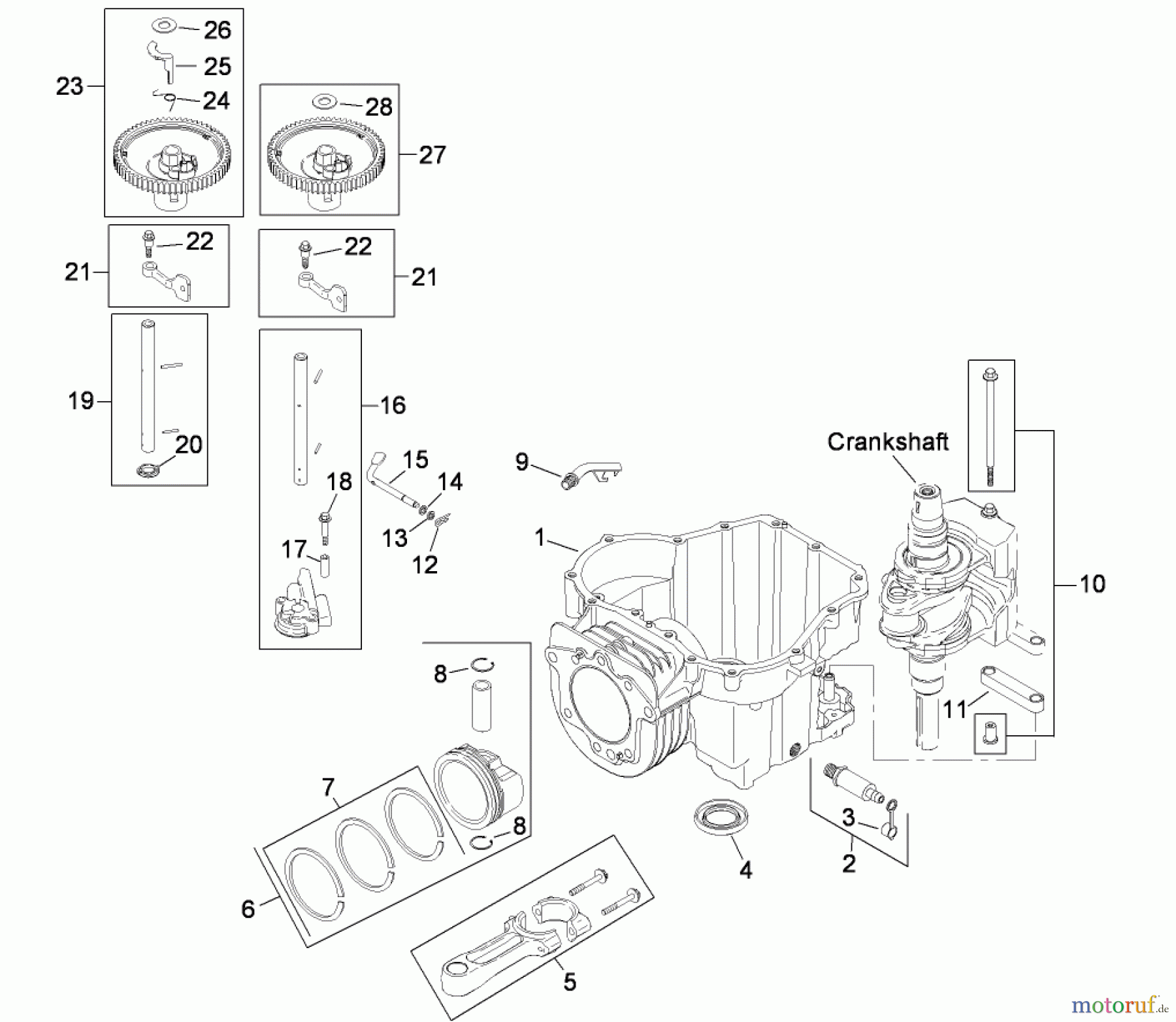

CRANKCASE ASSEMBLY KOHLER SV590-0019 74360 (Z4200) - Toro TimeCutter Z4200 Riding Mower, 2008 (280000001-280999999)

Posizione		Articolo numero	Descrizione
1		KH2052202	SHORT BLOCK SV530/540
2		KH2575514-S	KIT, OIL DRAIN VALVE
3		KH2517314-S	CAP, OIL DRAIN VALVE
4		KH2003208-S	SEAL, OIL
5		KH-2006704-S	PLEUELSTANGE
6		KH2087401-S	KIT, PISTON W/RING SET (94MM)
7		KH2010804-S	RING SET (94MM)
8		KH2001804-S	RETAINER, PISTON PIN
9		KH2012302-S	TUBE, DRAINBACK
10		KH2038016-S	KIT, GUIDE PIN - DISCONTINUED
11		KH2018602-S	SIEHE 2018604-S-KOH
12		KH1215405-S	CLIP, HITCH PIN
13		KHM-631015-S	WASHER, FLAT 6 MM
14		KHX-25-102-S	WASHER, FLAT 1/4"
15		KH2014402-S	SHAFT, GOVERNOR CROSS
16		KH2039302-S	KIT, OIL PUMP ASSEMBLY
17		KH2008612-S	SCREW, SHD THD FRM
18		KH2008613-S	SCREW, OIL PUMP
19		KH2014411-S	KIT,CAM CENTER SHAFT (EXHAUST)
20		KH2046808-S	WASHER, THRUST
21		KH2009012-S	KIT, CAM LEVER
22		KH2008606-S	SCREW, SHD THD FRM M6X1X26
27		KH2001004-S	KIT, CAMSHAFT ASSEMBLY
24		KH2008906-S	SPRING, ACR
25		KH2004423-S	WEIGHT, ACR - USE 20 044 32-S
28		KH2046803-S	WASHER, THRUST -ACR
27		KH2001004-S	KIT, CAMSHAFT ASSEMBLY
28		KH2046803-S	WASHER, THRUST -ACR
