Toro 74352 (Z480) - TimeCutter Z480 Riding Mower, 2005 (250000001-250999999) 48 INCH DECK ASSEMBLY Ricambi

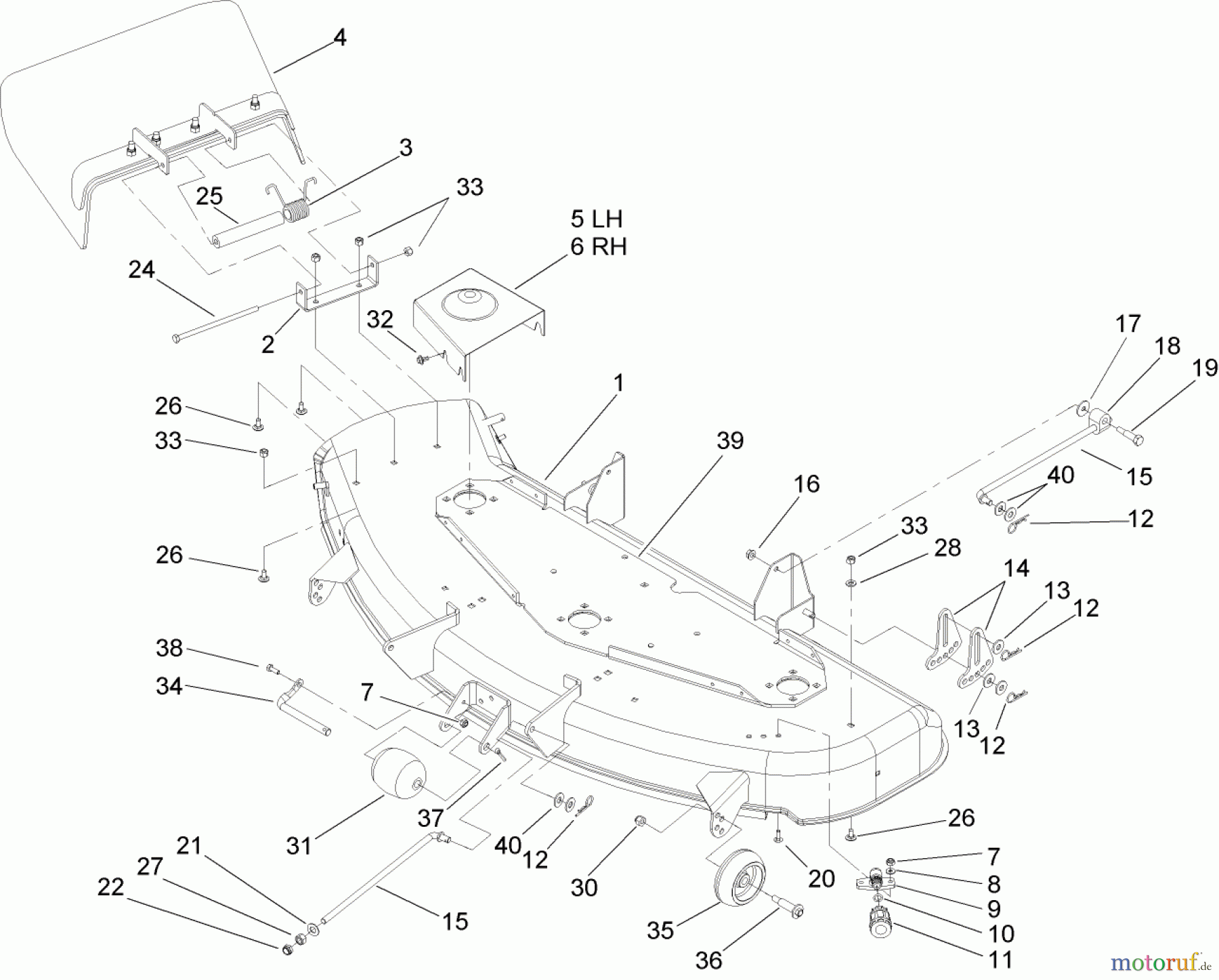

48 INCH DECK ASSEMBLY 74352 (Z480) - Toro TimeCutter Z480 Riding Mower, 2005 (250000001-250999999)

Toro Neu Mowers, Zero-Turn 74352 (Z480) - Toro TimeCutter Z480 Riding Mower, 2005 (250000001-250999999) 48 INCH DECK ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR108-717348 INCH DECK ASM
2 TR108-8581-03BRACKET-PIVOT
3 TR108-4052SPRING-TORSION
4 TR108-8591DEFLECTOR ASM
5 TR108-7167-03COVER-BELT, LH
6 TR108-7166-03COVER-BELT, RH
7 TR3296-16Mutter
8 TR3256-1SCHEIBE F. KLEMME
9 TR95-2747FITTING-WASHOUT
10 TR46-6290O-RING, SEAL
11 TR95-3270SCHLAUCHFITTING
12 TR9335054Haarnadelsicherung
13 TR80-6990Scheibe
14 TR88-5570-03Einstellplatte
15 TR105-3437Gestaenge
16 TR32128-25NUT-HF
17 TR5-4460Scheibe
18 TR88-4230Drehzapfenlager Hinten
19 TR7-0030Bolzen
20 TR3229-1Schraube
21 TR3256-25Scheibe
22 TR3296-38Mutter
24 TR108-8539BOLT-HH
25 TR108-7159SPACER-DEFLECTOR
26 TR3230-18SCHRAUBE
27 TR3219-4Mutter
28 TR3256-23Scheibe
30 TR32-9639
31 TR94-1599Laufrolle
32 TR46-8560SCREW-HHFTF
33 Toro MutterTR3296-29Mutter
34 TR110847Achse
35 TR701756Laufrad
36 TR56-6591Bolzen
37 TR3272-21Splint
38 Toro SchraubeTR321-4Schraube
39 TR108-7168-01PLATE-REINFORCEMENT, DECK
40 TR3256-4WASHER-FLAT
