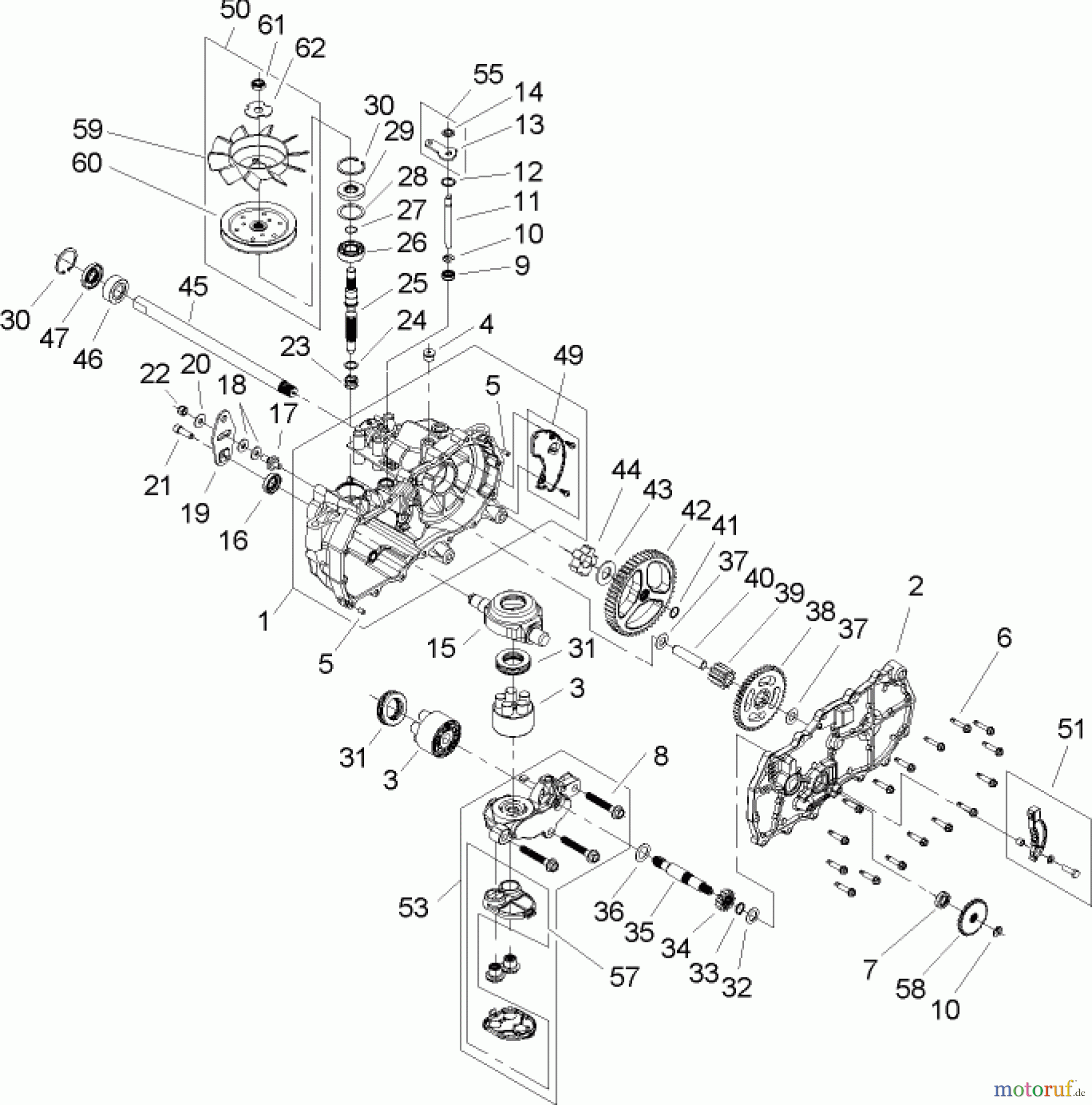

Toro 74351 (18-44Z) - 18-44Z TimeCutter Z Riding Mower, 2004 (240000001-240999999) LH HYDROSTAT ASSEMBLY PART NO. 107-2465 Ricambi

LH HYDROSTAT ASSEMBLY PART NO. 107-2465 74351 (18-44Z) - Toro 18-44Z TimeCutter Z Riding Mower, 2004 (240000001-240999999)

Toro Neu Mowers, Zero-Turn 74351 (18-44Z) - Toro 18-44Z TimeCutter Z Riding Mower, 2004 (240000001-240999999) LH HYDROSTAT ASSEMBLY PART NO. 107-2465
PosizioneArticolo numeroDescrizione
1 TR106-8695MAIN HOUSING ASM
2 TR106-8696SIDE ASM
3 TR103-2666CYLINDER BLOCK KIT
4 TR104-2189PLUG-THREAD, STRAIGHT
5 TR9004800-2506104-2170
6 TR104-5305Schraube
7 TR104-5347Simmering
8 TR94-6926BOLZEN
9 TR106-8676SEAL-LIP
10 TR106-8677Sicherungsring
11 TR106-8678ROD-BYPASS
12 TR106-8679RING-RETAINING, INT
13 TR107-2490Schaltarm
14 TR106-8681RING-RETAINING, EXT
15 TR104-5304SWASHPLATE-TRUNNION
16 TR104-5313SEAL-LIP
17 TR104-2116STEHBOLZEN
18 TR105-1873SCHEIBE
19 TR106-8747ARM-CONTROL
20 TR5-4460Scheibe
21 TR107-2488Schraube
22 TR105-1872NUT
23 TR94-1936SPRING-BLOCK
24 TR94-1937SCHEIBE
25 TR104-5306Zahnwelle
26 TR104-5311Kugellager
27 TR104-5307RING-RETAINING
28 TR104-5308Distanzscheibe
29 TR104-5310SEAL-LIP
30 TR104-5309Seegerring
31 TR94-6922BEARING-THRUST
32 TR104-5339SCHEIBE
33 TR104-5340RING-RETAINING
34 TR104-5316ZAHNRAD
35 TR106-8683SHAFT-MOTOR
36 TR104-5360WASHER
37 TR94-1933SCHEIBE
38 TR104-5317ZAHNRAD
39 TR104-5318GEAR-JACKSHAFT, 10T
40 TR104-5329PIN-JACKSHAFT
41 TR104-5328Seegerring
42 TR106-8684GEAR-BULL, 52T
43 TR94-1943Scheibe
44 TR104-5320Buechse
45 TR115-5039KIT-CONVERSION, 3/4" AXLE
46 TR104-5321Kugellager
47 TR104-5322SEAL-LIP
48 TR106-8686SEAL KIT
49 TR106-8697EXPANSION PLATE KIT
50 TR106-8698Lueftersatz
51 TR106-8688Bremsarm
53 TR106-8699RH CENTER SECTION FILTER KIT
54 TR104-2147Dichtungsmasse
55 TR107-2489BYPASS ARM KIT
57 TR106-8693FILTER KIT
58 TR106-8694Scheibe
59 TR110-8566FAN-6 INCH, 10 BLADE
60 TR104-1754Riemenscheibe
61 TR105-1875NUT-LOCK
62 TR107-9122WASHER-SLOTTED
