Toro 74351 (18-44Z) - 18-44Z TimeCutter Z Riding Mower, 2004 (240000001-240999999) ENGINE ASSEMBLY Ricambi

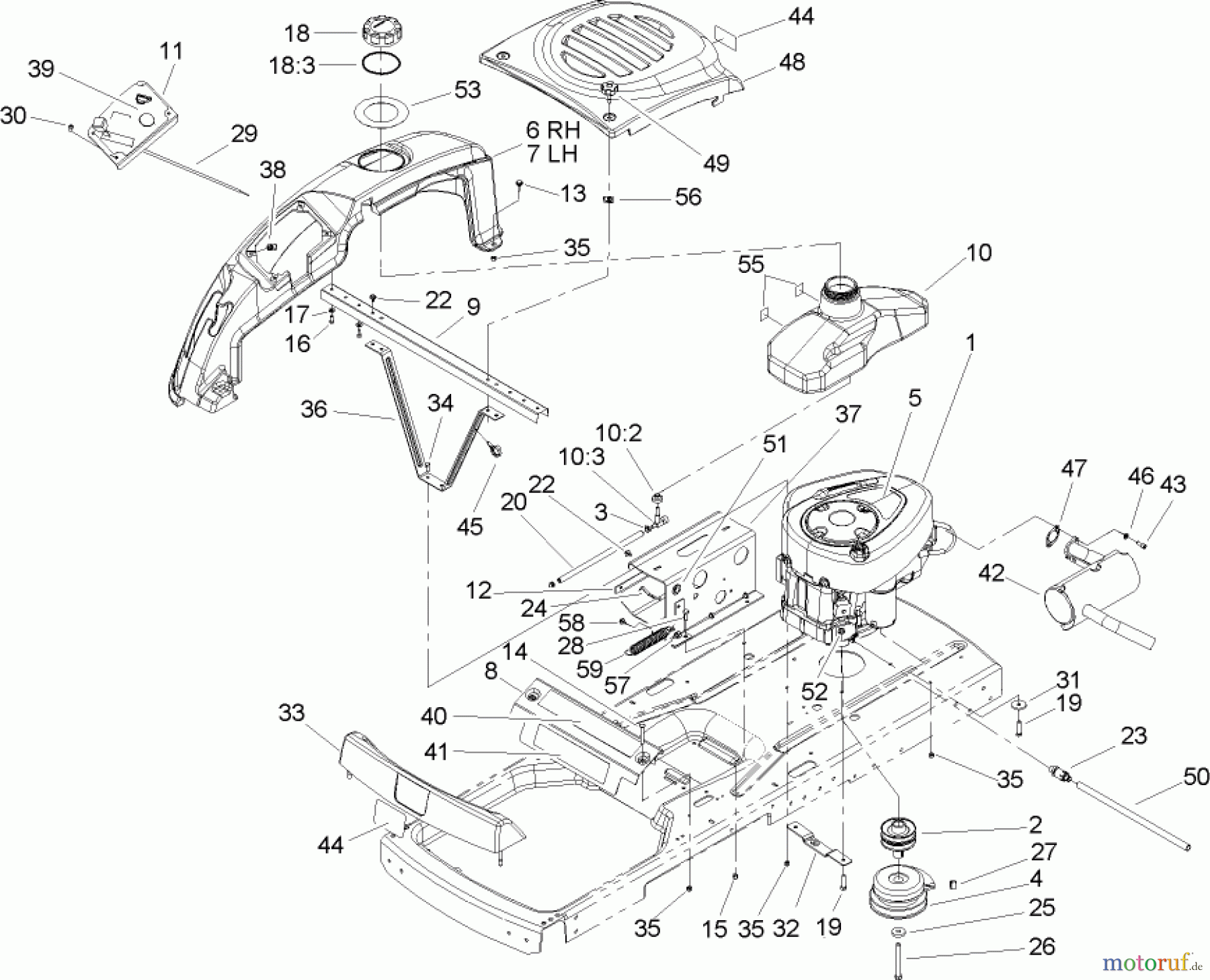

ENGINE ASSEMBLY 74351 (18-44Z) - Toro 18-44Z TimeCutter Z Riding Mower, 2004 (240000001-240999999)

Toro Neu Mowers, Zero-Turn 74351 (18-44Z) - Toro 18-44Z TimeCutter Z Riding Mower, 2004 (240000001-240999999) ENGINE ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR
2 TR105-3472Riemenscheibe
3 TR2412-98CLAMP-HOSE
4 TR108-9511CLUTCH-PTO, ELECTRIC
5 TR107-2530DECAL-ENGINE,18HP
6 TR106-2161ABDECKUNG
7 TR106-2162COVER-SIDE, LH
8 TR106-2164-03BRACKET-SUPPORT, FRONT
9 TR108-2313-03CHANNEL-CROSS
10 TR105-3464Benzintank
10:2 TR46-6560BUSHING
10:3 TR104048Benzinhahn
11 TR106-2167-03PANEL-CONTROL
12 TR105-3453-03PLATE-SUPPORT
13 TR11-9030Schraube
14 TR3229-7Mutter
15 Toro MutterTR3296-29Mutter
16 TR46-8090Schraube
17 TR3256-22Scheibe
18 TR88-3980Tankdeckel
18:3 TR88-4010Deckeldichtung
19 TR322-7Schraube
20 TR106-8720HOSE-FUEL
22 TR46-8560SCREW-HHFTF
23 TR92-6877Ventil
24 TR609830Steckfeder
25 TR112843WASHER
26 TR3212-16SCREW-HH
27 TR98-5023Gummipuffer
28 TR322-4Schraube
29 TR104-3626CABLE-THROTTLE
30 TR3258-166Schraube
31 TR62-7190Distanzscheibe
32 TR106-2156PLATE-MOUNT, IDLER
33 TR105-6965FOOTREST ASM
34 Toro SchraubeTR321-4Schraube
35 Toro MutterTR3296-42Mutter
36 TR106-6994-03U-BUEGEL
37 TR107-2485-03PLATE-TANK
38 TR107069Mutter (20)
39 TR106-2224Klebeschild
40 TR107-7398DECAL-DANGER
41 TR107-2515DECAL - 18-44Z
42 TR106-7007MUFFLER
43 TR3274-10Schraube
44 TR105-6971KLEBESCHILD
45 TR105-1853SCHLAUCHKLEMME
46 TR3253-4Federring
47 TR88-4410AUSPUFF-DICHTUNG
48 TR106-2163Haube
49 TR106-7017Fluegelschrauben
50 TR106-7022TUBE-DRAIN, OIL
51 TR237-124Gummituelle
52 TR32128-25NUT-HF
53 TR106-7042SEAL-RUBBER
55 TR104-2488DICHTUNGSPROFIL
56 TR106-8737Vierkantmutter
57 TR107-2506-03MOUNT-SPRING
58 TR32144-44SCHRAUBE
59 TR106-2177SPRING-EXTENSION
