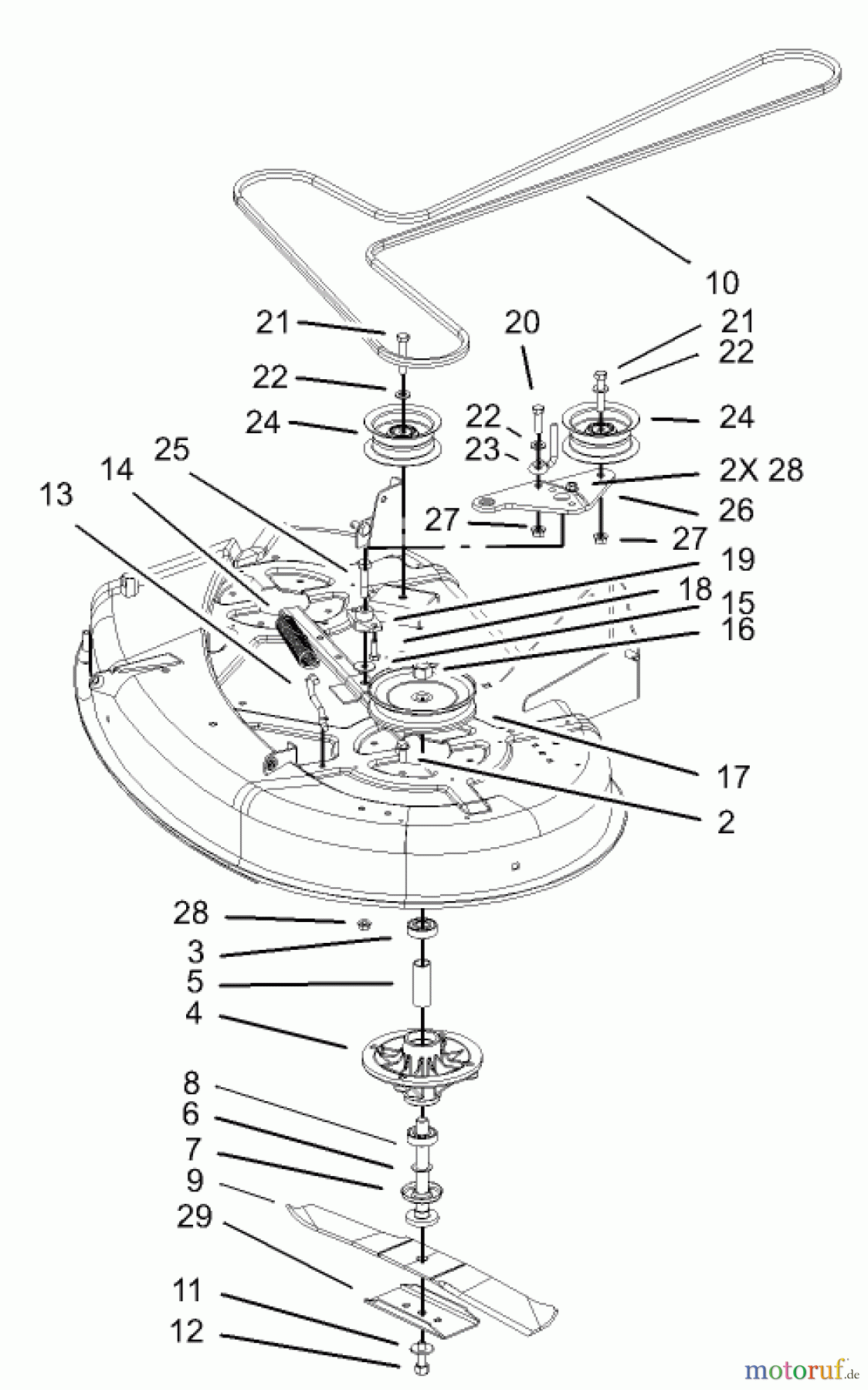

42IN DECK SPINDLE AND BELT DRIVE ASSEMBLY 74350 (17-42Z) - Toro 17-42Z TimeCutter Z Riding Mower, 2003 (230000001-230999999)

Toro Neu Mowers, Zero-Turn 74350 (17-42Z) - Toro 17-42Z TimeCutter Z Riding Mower, 2003 (230000001-230999999) 42IN DECK SPINDLE AND BELT DRIVE ASSEMBLY
PosizioneArticolo numeroDescrizione
2 Toro SchraubeTR32144-41Schraube
3 TR38-7820Kugellager
4 TR88-4510Lagergehaeuse
5 TR62-3661Buechse
6 TR80-4380Distanzscheibe
7 TR80-4360SHIELD-BEARING
8 TR80-4341Messerwelle
9 TR106-2247-03BLADE
10 TR106-2173BELT-V
11 Toro WASHER-BELLEVILLETR3290-465WASHER-BELLEVILLE
12 Toro SCHRAUBETR26-0671SCHRAUBE
13 TR88-5970HOOK-RETURN, SPRING
14 TR106-2177SPRING-EXTENSION
15 TR5-4460Scheibe
16 TR3219-6Mutter
17 TR88-5330PULLEY ASM
18 TR322-4Schraube
19 TR88-4980Kunststofflagerung
20 TR323-7Schraube
21 TR323-10Schraube
22 Toro WASHER-FLATTR3256-24WASHER-FLAT
23 TR107-7307Riemenfuehrung
24 TR88-5630Spannrolle
25 TR7-0030Bolzen
26 TR107-2467-03Spannarm
27 TR32128-21Mutter
28 TR32128-25NUT-HF
29 TR106-2248-03STIFFENER-BLADE
