Toro 74301 (Z380) - TimeCutter Z380 Riding Mower, 2005 (250000001-250999999) 38IN DECK SPINDLE AND BELT DRIVE ASSEMBLY Ricambi

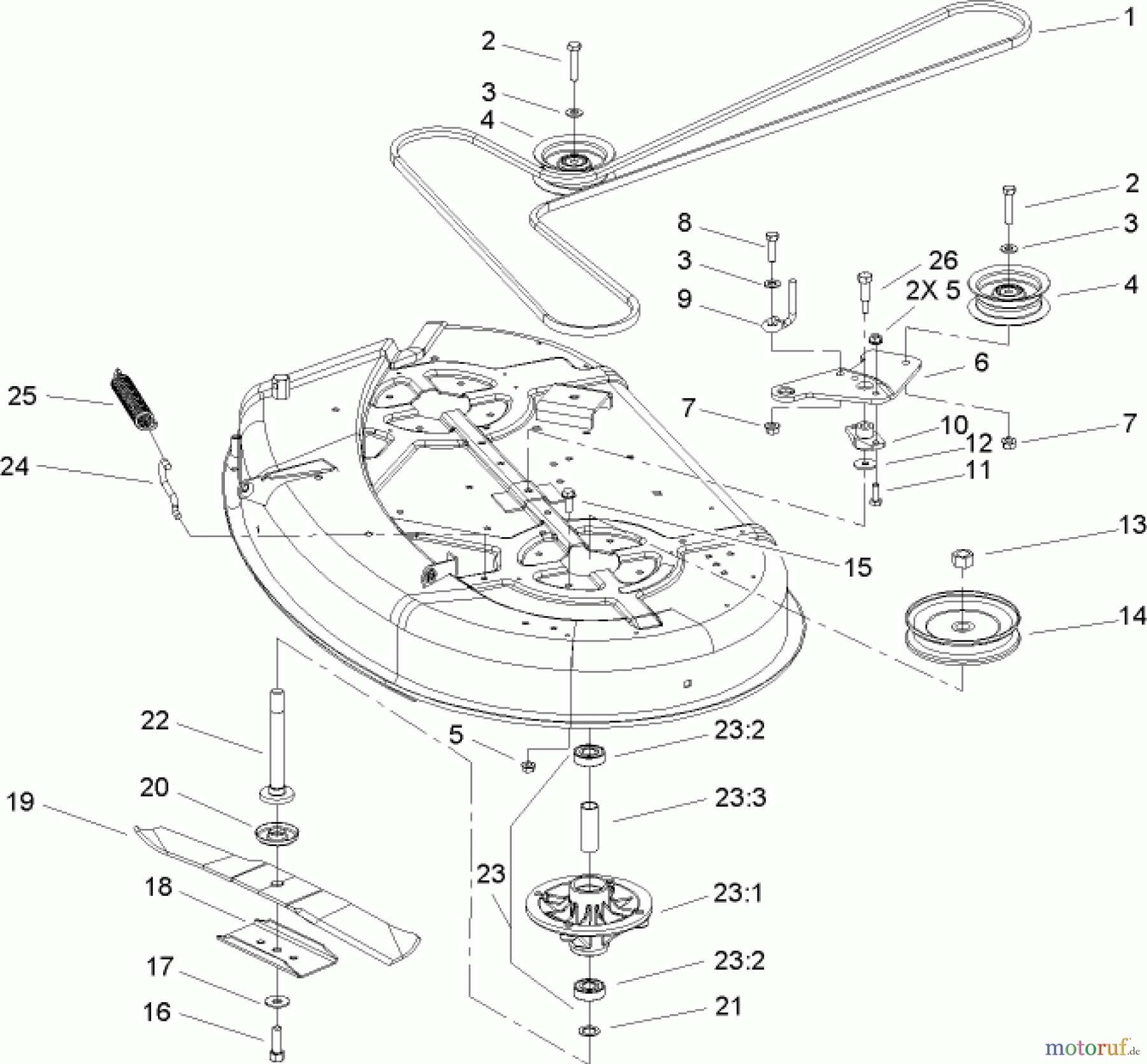

38IN DECK SPINDLE AND BELT DRIVE ASSEMBLY 74301 (Z380) - Toro TimeCutter Z380 Riding Mower, 2005 (250000001-250999999)

Toro Neu Mowers, Zero-Turn 74301 (Z380) - Toro TimeCutter Z380 Riding Mower, 2005 (250000001-250999999) 38IN DECK SPINDLE AND BELT DRIVE ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR106-2173BELT-V
2 TR323-9Schraube
3 Toro WASHER-FLATTR3256-24WASHER-FLAT
4 TR106-2175Spannrolle
5 TR32128-25NUT-HF
6 TR107-2467-03Spannarm
7 TR32128-21Mutter
8 TR323-7Schraube
9 TR107-7307Riemenfuehrung
10 TR88-4980Kunststofflagerung
11 TR322-4Schraube
12 TR5-4460Scheibe
13 TR3219-6Mutter
14 TR88-5330PULLEY ASM
15 Toro SchraubeTR32144-41Schraube
16 Toro SCHRAUBETR26-0671SCHRAUBE
17 Toro WASHER-BELLEVILLETR3290-465WASHER-BELLEVILLE
18 TR80-0510-03Halteplatte
19 TR88-5140-03Messer Recycler
20 TR80-4360SHIELD-BEARING
21 TR80-4380Distanzscheibe
22 TR80-4341Messerwelle
23 TR
23:1 TR88-4510Lagergehaeuse
23:2 TR100-1048Kugellager
23:3 TR62-3661Buechse
24 TR88-5970HOOK-RETURN, SPRING
25 TR106-2177SPRING-EXTENSION
26 TR7-0030Bolzen
