Toro 74140 (724-Z) - 724-Z Tractor, 1994 (49000001-49999999) ATTACHMENT HEIGHT CONTROL Ricambi

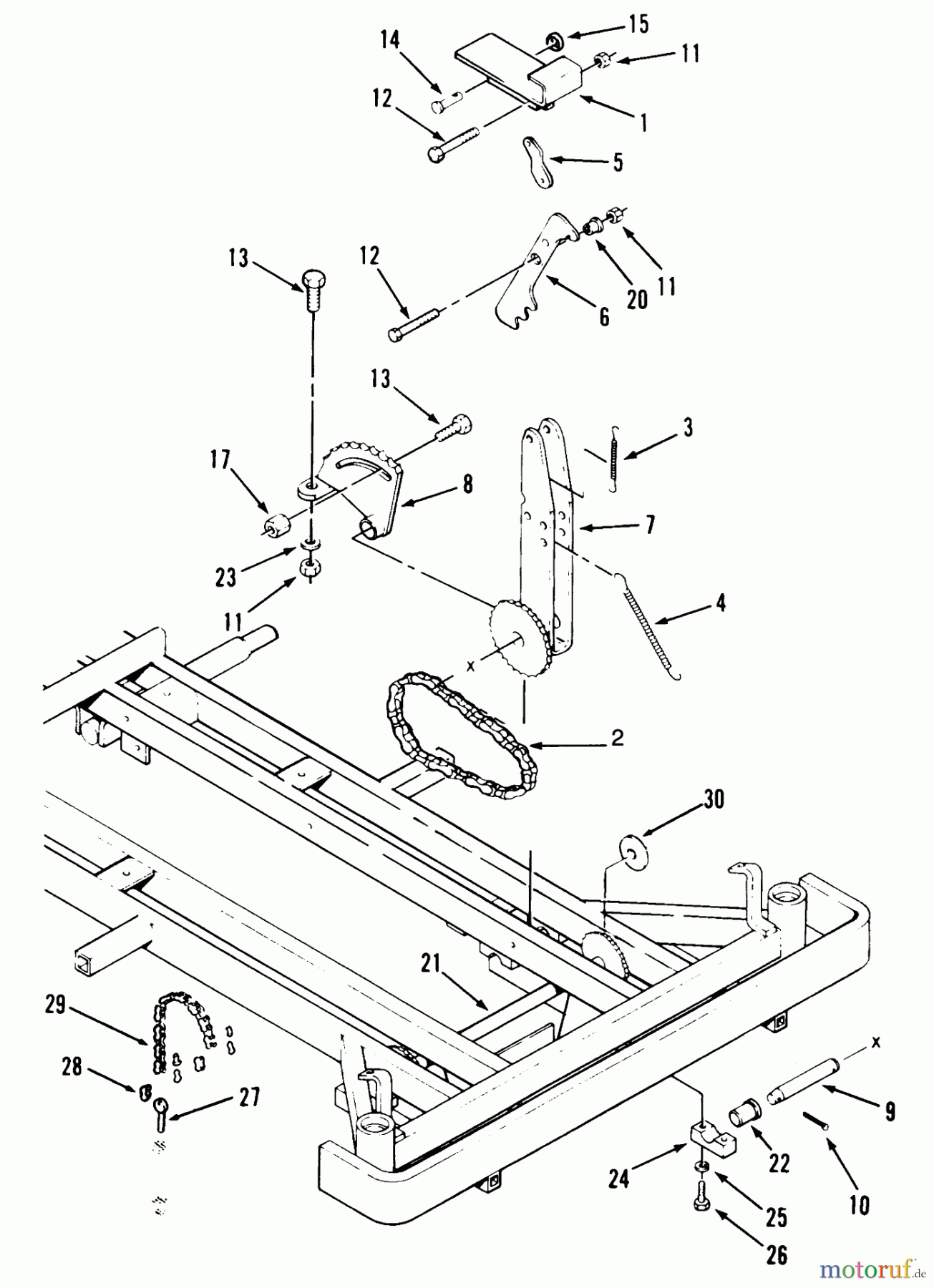

ATTACHMENT HEIGHT CONTROL 74140 (724-Z) - Toro 724-Z Tractor, 1994 (49000001-49999999)

Toro Neu Mowers, Zero-Turn 74140 (724-Z) - Toro 724-Z Tractor, 1994 (49000001-49999999) ATTACHMENT HEIGHT CONTROL
PosizioneArticolo numeroDescrizione
1 TR112954PEDAL-FOOT 10218- *B
2 TR115855CHAIN-FOOT PEDAL DR
3 TR113081SPG-NEUTRAL 20217-35
4 TR114183SPRING - EXTENSION
5 TR112955DISCONTINUED
6 TR112956LIFT-ARM PWL *B
7 TR112957ASSY-LVR ARM 1022 *B
8 TR112958DISCONTINUED
9 TR113-14914W5-2 GIL SENSATIO
10 TR3272-19Splint
11 Toro MutterTR3296-29Mutter
12 Toro SPIROL PIN H DTR32121-114SPIROL PIN H D
13 TR322-5Schraube
14 TR114613PIN-LOCK
15 TR100307E RING
17 TR112941HEX-STOP NUT N-140
20 TR113-14611F4-0/-1/-2 SENSAT
21 TR113684-03SPROCKET ASM
22 TR113687BEARING-FLANGED
23 TR3256-23Scheibe
24 TR114294DISCONTINUED
25 TR3256-21SCHEIBE
26 TR323-7Schraube
27 TR113697Einstellbolzen
28 TR2710-11Kettenschloss
29 TR113699CHAIN-DECK LIFT
30 TR9202254Scheibe
