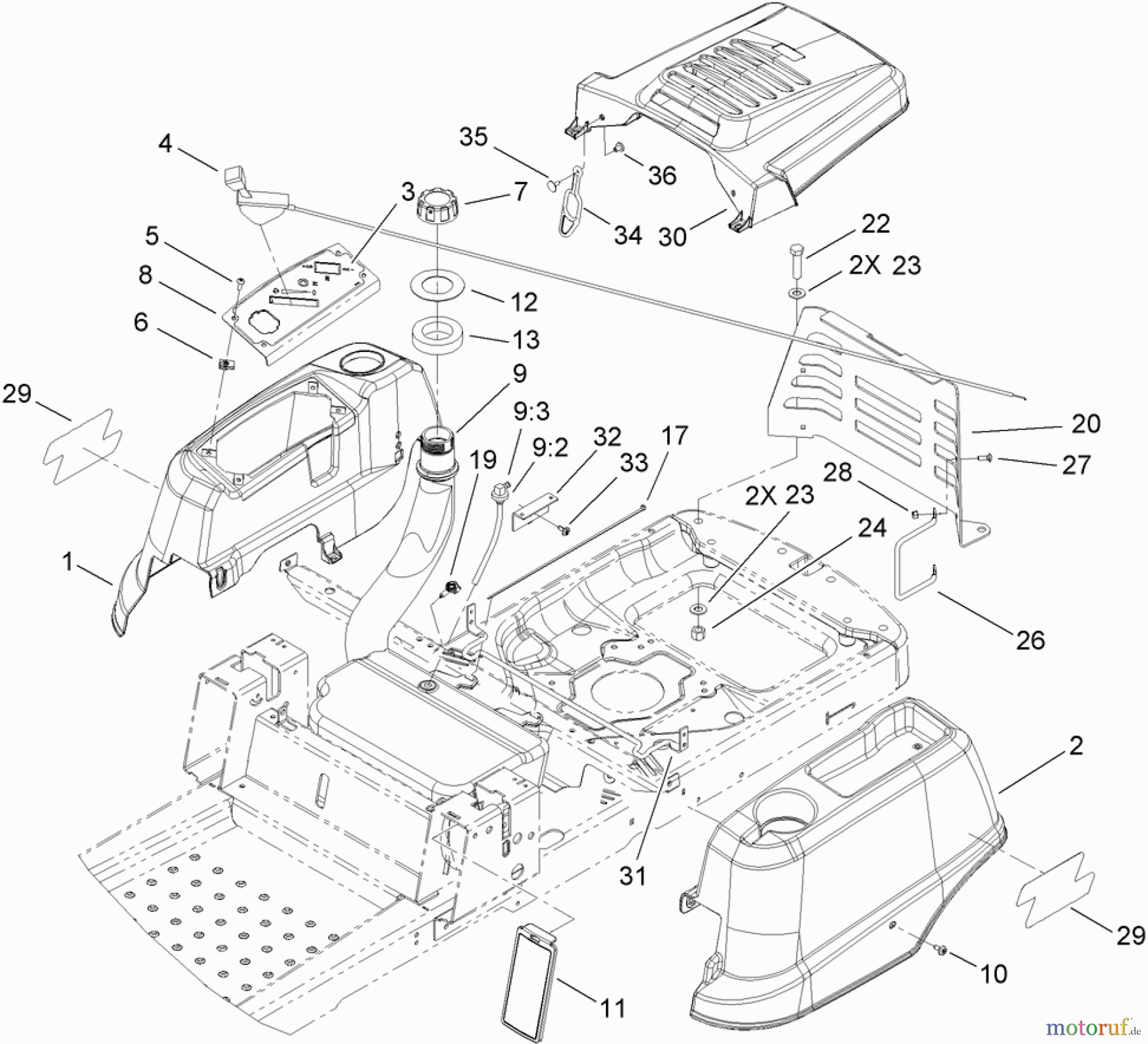

Toro 136E (RZT420H) - RZT420H Riding Mower, 2009 (290000001-290999999) STYLING AND FUEL SYSTEM ASSEMBLY Ricambi

STYLING AND FUEL SYSTEM ASSEMBLY 136E (RZT420H) - Toro RZT420H Riding Mower, 2009 (290000001-290999999)

Toro Neu Mowers, Zero-Turn 136E (RZT420H) - Toro RZT420H Riding Mower, 2009 (290000001-290999999) STYLING AND FUEL SYSTEM ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR112-9773POD-RH
2 TR112-9772POD-LH
3 TR115-2500DECAL-PANEL, CONTROL
4 TR104-3626CABLE-THROTTLE
5 TR3258-166Schraube
6 TR107069Mutter (20)
7 TR93-7198GAS CAP ASM
8 TR110-1927-03PANEL-CONTROL
9 TR110-6890FUEL TANK ASM
9:2 TR46-6560BUSHING
9:3 TR95-3970FITTING-90 DEGREE
10 TR112-4004SCREW-SHOULDER
11 TR110-6786COVER-CONTROL
12 TR112-9760WASHER-RUBBER
13 TR55-9310SEAL-FOAM
17 TR100-9064Kabelband
19 TR105-1853SCHLAUCHKLEMME
20 TR110-6685-03SUPPORT-COVER, REAR
22 TR325-8Schraube
23 TR3256-26WASHER-FLAT
24 TR3296-23Mutter
26 TR112-4022GUARD-MUFFLER
27 TR3229-1Schraube
28 Toro MutterTR3296-42Mutter
29 TR111-2208
30 TR110-1905COVER-ENGINE
31 TR110-6687ROD-COVER, REAR
32 TR110-6688BRACKET-COVER
33 TR112-4004SCREW-SHOULDER
34 TR82-5690Halteband
35 TR3290-479Niete
36 TR22-9741SPACER-INTERLOCK
