Toro 22176 - 21" Heavy-Duty Recycler/Rear Bagger Lawnmower, 2004 (240000001-240999999) CARBURETOR ASSEMBLY Ricambi

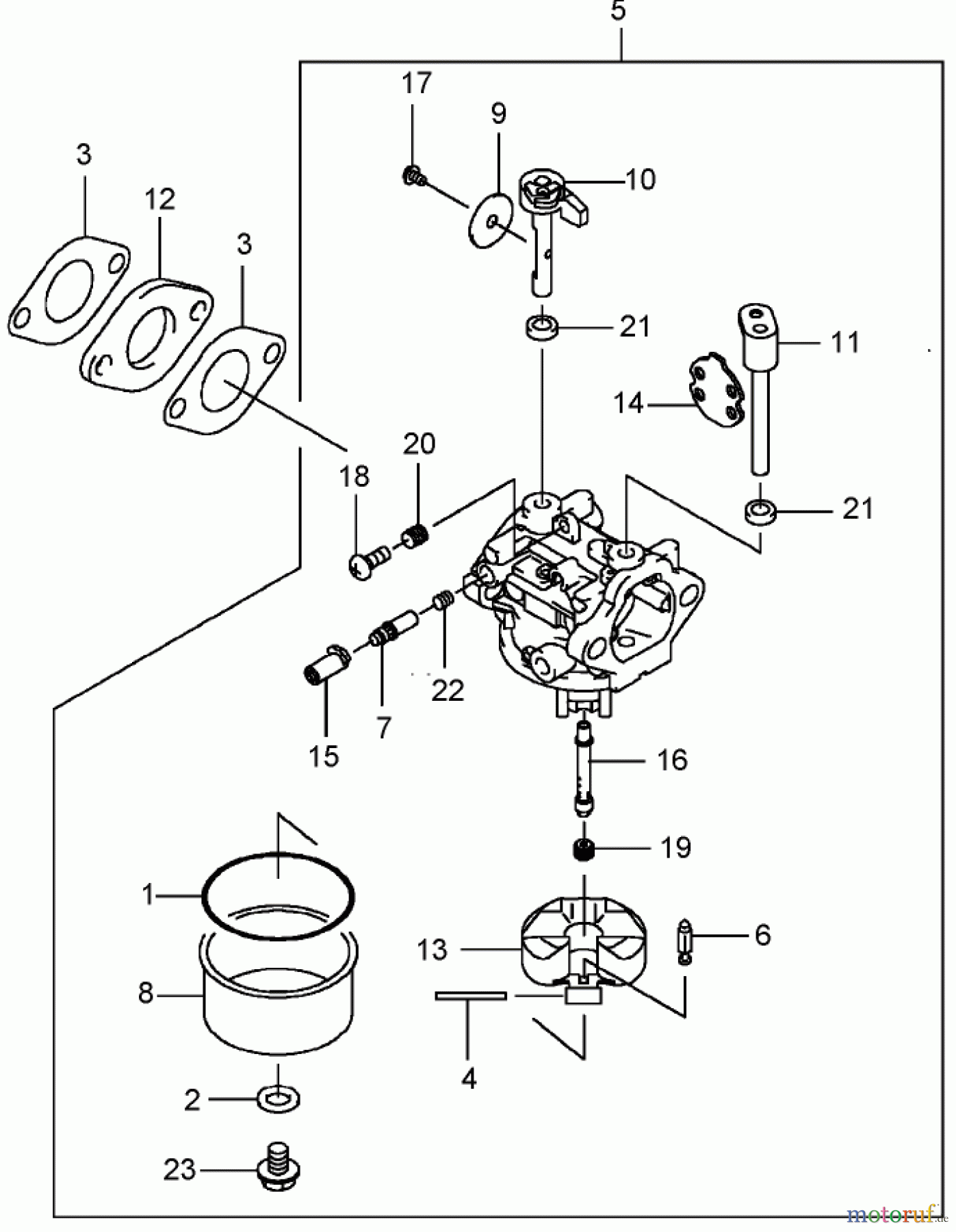

CARBURETOR ASSEMBLY 22176 - Toro 21" Heavy-Duty Recycler/Rear Bagger Lawnmower, 2004 (240000001-240999999)

Toro Neu Mowers, Walk-Behind Seite 2 22176 - Toro 21
PosizioneArticolo numeroDescrizione
1 TR108-2579GASKET
2 TR108-2580GASKET-SCREW
3 TR108-2581GASKET
4 TR108-2582SHAFT
5 TR108-2583Vergaser kompl.
6 TR108-2584NEEDLE-JET
7 TR108-2585Luftduese
8 TR108-2586CHAMBER-FLOAT
9 TR108-2587Drosselklappe
10 TR108-2588SHAFT-CARBURETOR
11 TR108-2589Chokwelle
12 TR108-2590Flansch
13 TR108-2591FLOAT ASM
14 TR108-2592Chokklapp
15 TR108-2593LIMITER
16 TR108-2594Duese
17 TR108-2595SCREW
18 TR108-2596Schraube
19 TR108-2597JET-MAIN (NO.74)
20 TR108-2598Druckfeder
21 TR108-2599SEAL
22 TR108-2600Druckfeder
23 TR108-2601SCREW
