Toro 22026 - Side Discharge Mower, 1996 (6900001-6999999) HOUSING & WHEEL ASSEMBLY Ricambi

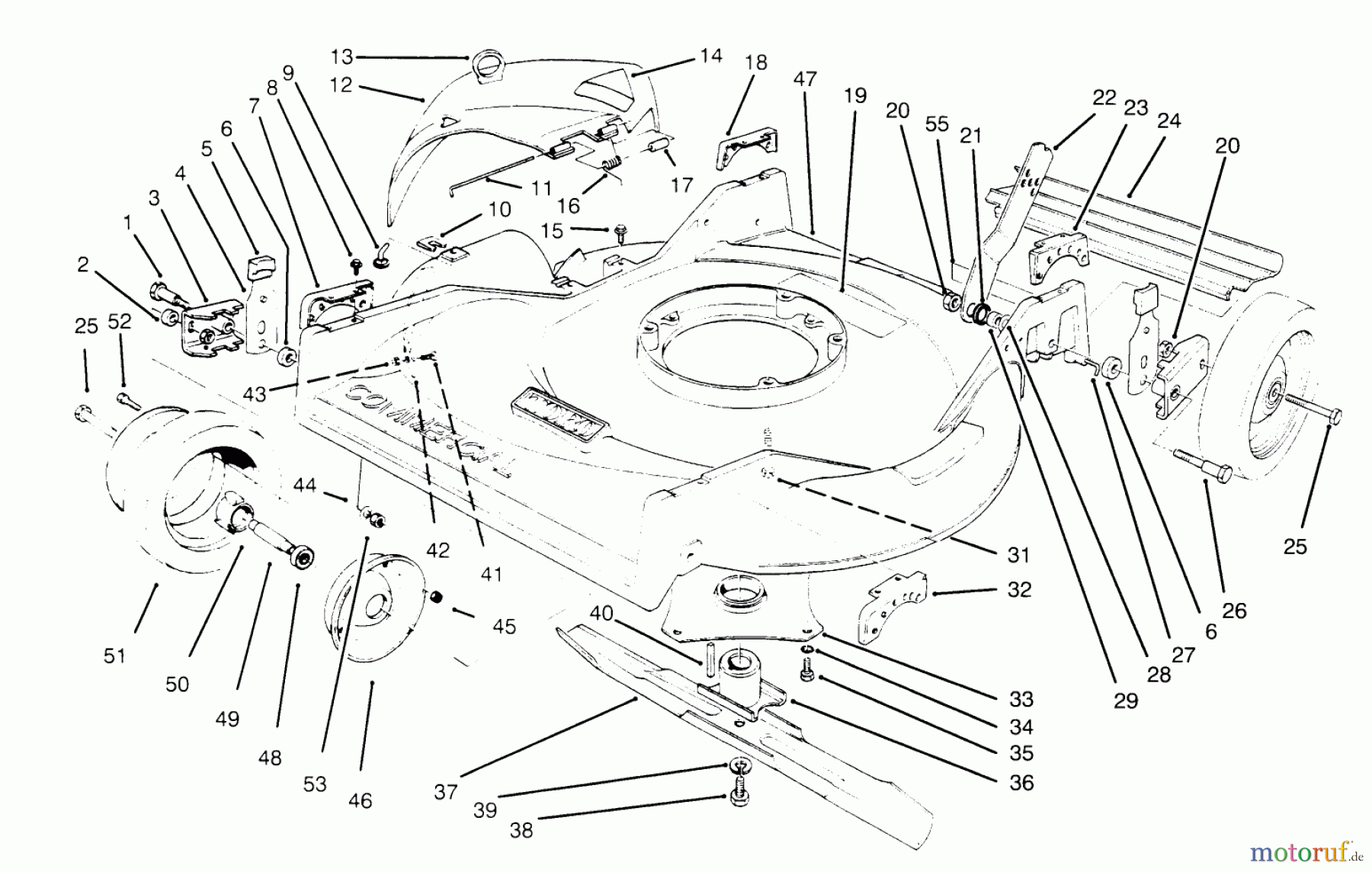

HOUSING & WHEEL ASSEMBLY 22026 - Toro Side Discharge Mower, 1996 (6900001-6999999)

Toro Neu Mowers, Walk-Behind Seite 2 22026 - Toro Side Discharge Mower, 1996 (6900001-6999999) HOUSING & WHEEL ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR49-9180Schraube
2 TR52-2480Buechse
3 TR49-9160Radschenkel
4 TR49-8800Stellhebel
5 TR25-7740Hebelknopf
6 TR53-7930SPACER-PIVOT
7 TR52-2510FRT RIGHT QUAD
8 TR49-2040Schraube
9 TR28-3260BAG CHUTE PIN
10 TR28-3250BAG CHUTE CLIP PIN
11 TR52-2570DEFLECTOR HINGE PIN
12 TR12-4739DEFLECTOR
13 TR28-1430Gummischelle
14 TR39-5770Schild
15 TR46-6811Schraube
16 TR52-2560DEFLECTOR SPRING
17 TR28-3270DISCONTINUED
18 TR52-2530REAR RIGHT QUAD
19 TR71-1280PVC-SCHILD
20 TR32-9639
21 TR27-6510Zwischenscheibe
22 TR100-3296-03DISCONTINUED
23 TR52-2540REAR LEFT QUAD
24 TR117-5298SHIELD-TRAILING
25 Toro SchraubeTR3231-2Schraube
26 TR52-2260REAR PIVOT SCREW
27 TR33-3201SHIELD ROD
28 TR3290-340WASHER-BELLEVILLE
29 TR52-2360HANDLE LATCH SPACER
31 TR100-2592Schraube
32 TR52-2520FRT LEFT QUAD
33 TR52-2500CRNKSHFT PROTECT ASM
34 TR3254-6Federring
35 TR32144-70Schraube
36 TR52-2170-03Messernabe
37 TR8-5230-03Messer
38 Toro SCHRAUBETR26-0671SCHRAUBE
39 TR3253-22Federring
40 TR27-8590Keil
41 TR3230-16Schraube
42 TR52-2650-01SAFETY BAR
43 Toro MutterTR3296-29Mutter
44 TR3290-455WASHER-BELLEVILLE
45 Toro MutterTR3296-42Mutter
46 TR121-1365-06RIM-HALF, WHEEL
47 TR12-472921 COMM SD HSG/DECAL
48 TR52-2450Radlager
49 TR52-2440Radbuechse
50 TR52-2410Radnabe
51 TR53-7740Reifen
52 TR321-2Schraube
53 TR32152-2NUT-LOCK, CONE
55 TR92-1779DECAL-WARNING
TR121-1380WHEEL AND TIRE ASM
