Toro 20700 - Lawnmower, 1982 (2000001-2999999) HOUSING ASSEMBLY Ricambi

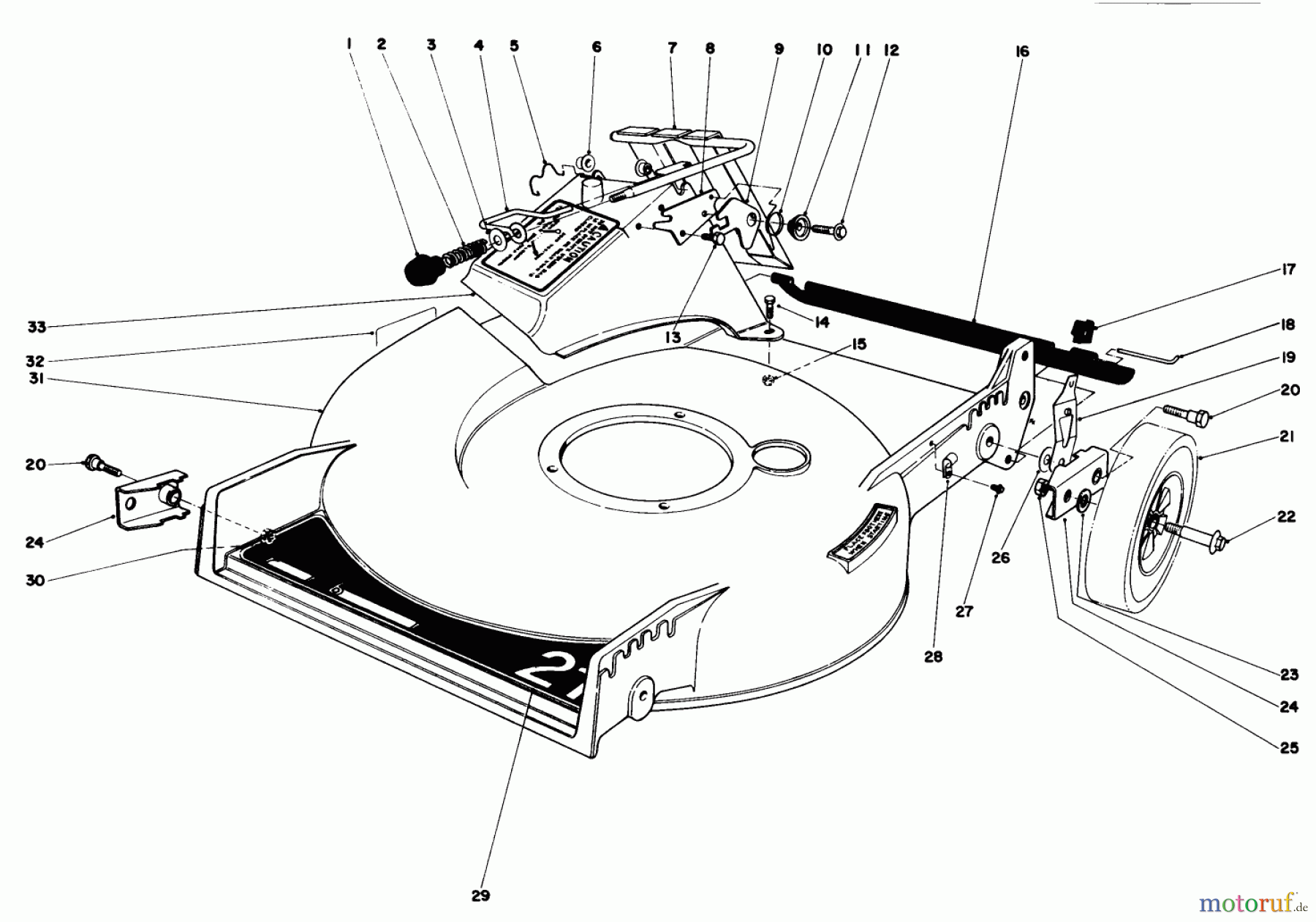

HOUSING ASSEMBLY 20700 - Toro Lawnmower, 1982 (2000001-2999999)

Toro Neu Mowers, Walk-Behind Seite 1 20700 - Toro Lawnmower, 1982 (2000001-2999999) HOUSING ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR233-37KNOB
2 TR23-0920COMPRESSION SPRING
3 TR3256-25Scheibe
4 TR23-0940Buegel
5 TR33-4830Feder
6 TR23-0880BUSHING-NYLON
7 TR33-5660Klappe
8 TR23-1040Halteplatte
9 TR42-4010Lasche
10 TR33-4860Schenkelfeder
11 TR43-4840DOOR SPACER
12 TR49-2040Schraube
13 TR32104-17SCREW-HWH
14 TR321-7Schraube
15 Toro MutterTR3296-42Mutter
16 TR29-9180SHIELD - TRAILING
17 TR25-7740Hebelknopf
18 TR47-4682Achse
19 TR99-5260SPRING ARM KIT
20 TR44-5270Schraube
21 TR27-6200WHEEL TIRE ASM 8 IN
22 TR27-6230BOLT-WHEEL
23 Toro ScheibeTR40-1940Scheibe
24 TR47-2940Radlasche
25 Toro NUT-LOCKTR3296-6NUT-LOCK
26 TR5-4460Scheibe
27 TR32104-71SCREW-HWH
28 TR2412-52Bowdenzugklammer
29 TR44-0450DECK DECAL
30 Toro MutterTR32153-3Mutter
31 TR11-406921HP RB-SUZ HSG/DECAL
32 TR39-5770Schild
33 TR36-1350Auswurfblech
TR89929DISCONTINUE-DESA
