Toro 20674 - Lawnmower, 1983 (3000001-3999999) HOUSING ASSEMBLY Ricambi

HOUSING ASSEMBLY 20674 - Toro Lawnmower, 1983 (3000001-3999999)

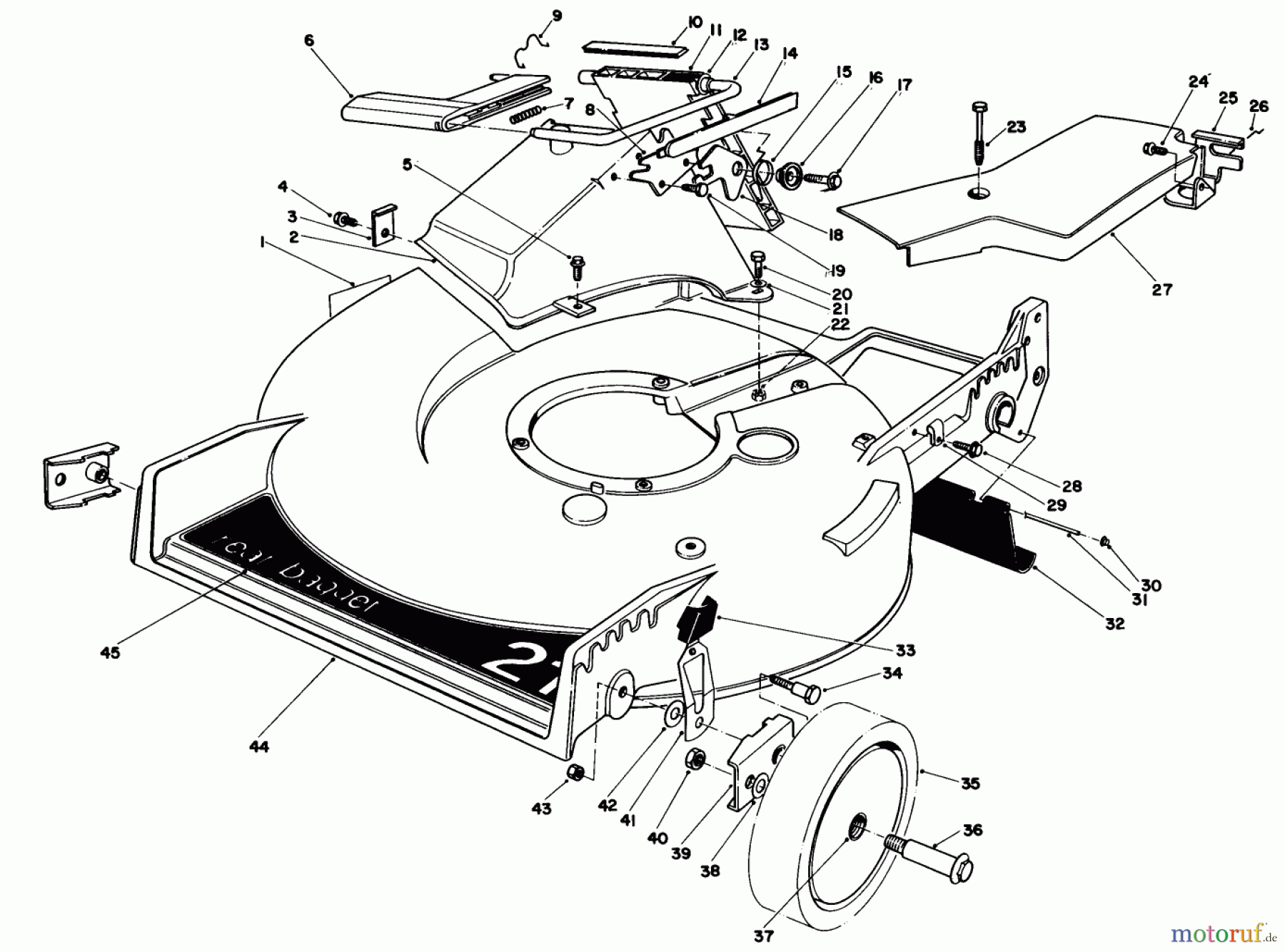

Toro Neu Mowers, Walk-Behind Seite 1 20674 - Toro Lawnmower, 1983 (3000001-3999999) HOUSING ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR39-5770Schild
2 TR82-9151TUNNEL-DISCHARGE
3 TR47-6540TUNNEL CLIP
4 TR12-3270Schraube
5 TR49-2040Schraube
6 TR46-3520ORD.77-0200 ASM
7 TR46-7060FEDER
8 TR23-1040Halteplatte
9 TR47-5840Sicherung
10 TR46-6820Deckel
11 TR77-0200Klappe
12 TR23-0880BUSHING-NYLON
13 TR46-3530DISCONTINUED
14 TR46-7050Deckel
15 TR33-4860Schenkelfeder
16 TR43-4840DOOR SPACER
17 TR46-8091Schraube
18 TR42-4010Lasche
19 TR46-8090Schraube
20 TR321-8Schraube
21 TR3256-22Scheibe
22 Toro MutterTR3296-42Mutter
23 TR37-7260Schraube
24 TR32144-11Schraube
25 TR82-5680-03Halterung
26 TR46-7030RETAINER-CABLE
27 TR52-7404Riemenabdeckung
28 TR12-5450Schraube
29 TR2412-83CLAMP-CABLE
30 TR3290-438DISCONTINUED
31 TR47-4684DISCONTINUED
32 TR112-9989SHIELD-TRAILING
33 TR25-7740Hebelknopf
34 TR44-5270Schraube
35 TR11-6349WHEEL,TIRE ASM-SERVICE
36 TR27-6230BOLT-WHEEL
37 Toro BuchseTR27-6250Buchse
38 Toro ScheibeTR40-1940Scheibe
39 TR47-2940Radlasche
40 Toro NUT-LOCKTR3296-6NUT-LOCK
41 TR99-5260SPRING ARM KIT
42 TR5-4460Scheibe
43 Toro MutterTR3296-29Mutter
44 TR11-4089Gehaeuse
45 TR44-0450DECK DECAL
