Toro 20624C - Lawnmower, 1988 (8000001-8999999) BLADE & BRAKE CLUTCH ASSEMBLY Ricambi

BLADE & BRAKE CLUTCH ASSEMBLY 20624C - Toro Lawnmower, 1988 (8000001-8999999)

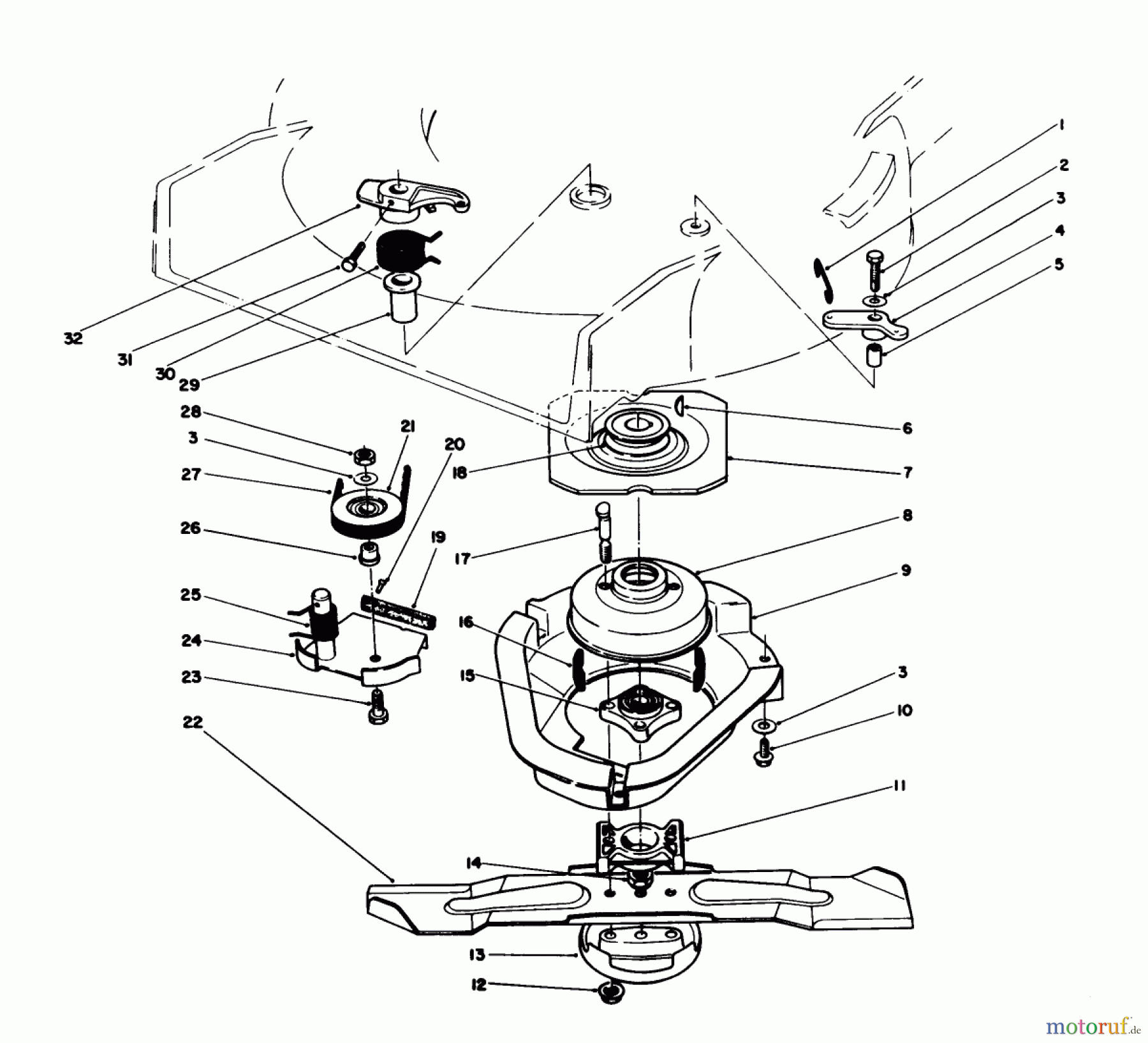

Toro Neu Mowers, Walk-Behind Seite 1 20624C - Toro Lawnmower, 1988 (8000001-8999999) BLADE & BRAKE CLUTCH ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR49-2810Gestaenge
2 TR32104-107Schraube
3 TR3256-23Scheibe
4 TR49-7960Hebel
5 TR49-7950SLEEVE-BELLCRANK
6 TR3257-3KEY-WOODRUFF
7 TR56-6160-03FLYWHEEL - BBC
8 TR94-9431BRAKE DRUM ASM
9 TR46-5690SHIELD BBC
10 TR32144-70Schraube
11 TR107-4275SPACER-BLADE
12 TR54-9190Mutter
13 TR80-2770Antiscalpscheibe
14 TR3296-33Mutter
15 TR42-6890Nabe
16 TR52-3480Daempfer
17 Toro BOLT-BLADETR42-3190BOLT-BLADE
18 TR62-7560Riemenscheibe
19 TR
20 TR3295-23Holniete
21 TR117-5299PULLEY-IDLER
22 TR107-4276-03BLADE-BAGGING, 21 INCH
23 TR322-16Schraube
24 TR94-1601BRAKE PLATE ASM
25 TR46-5670SPRING-TORSION
26 TR46-5630HUB-PULLEY, IDLER
27 TR42-0884Zahnriemen
28 TR3296-47Mutter
29 TR46-6680BUSHING PM
30 TR49-7970SPRING-TORSION
31 TR32104-96Schraube
32 TR49-2820LEVER
