Toro 20611 - Lawnmower, 1989 (9000001-9999999) HOUSING ASSEMBLY (USED ON SERIAL NO. 9000101 THRU 9012541) Ricambi

HOUSING ASSEMBLY (USED ON SERIAL NO. 9000101 THRU 9012541) 20611 - Toro Lawnmower, 1989 (9000001-9999999)

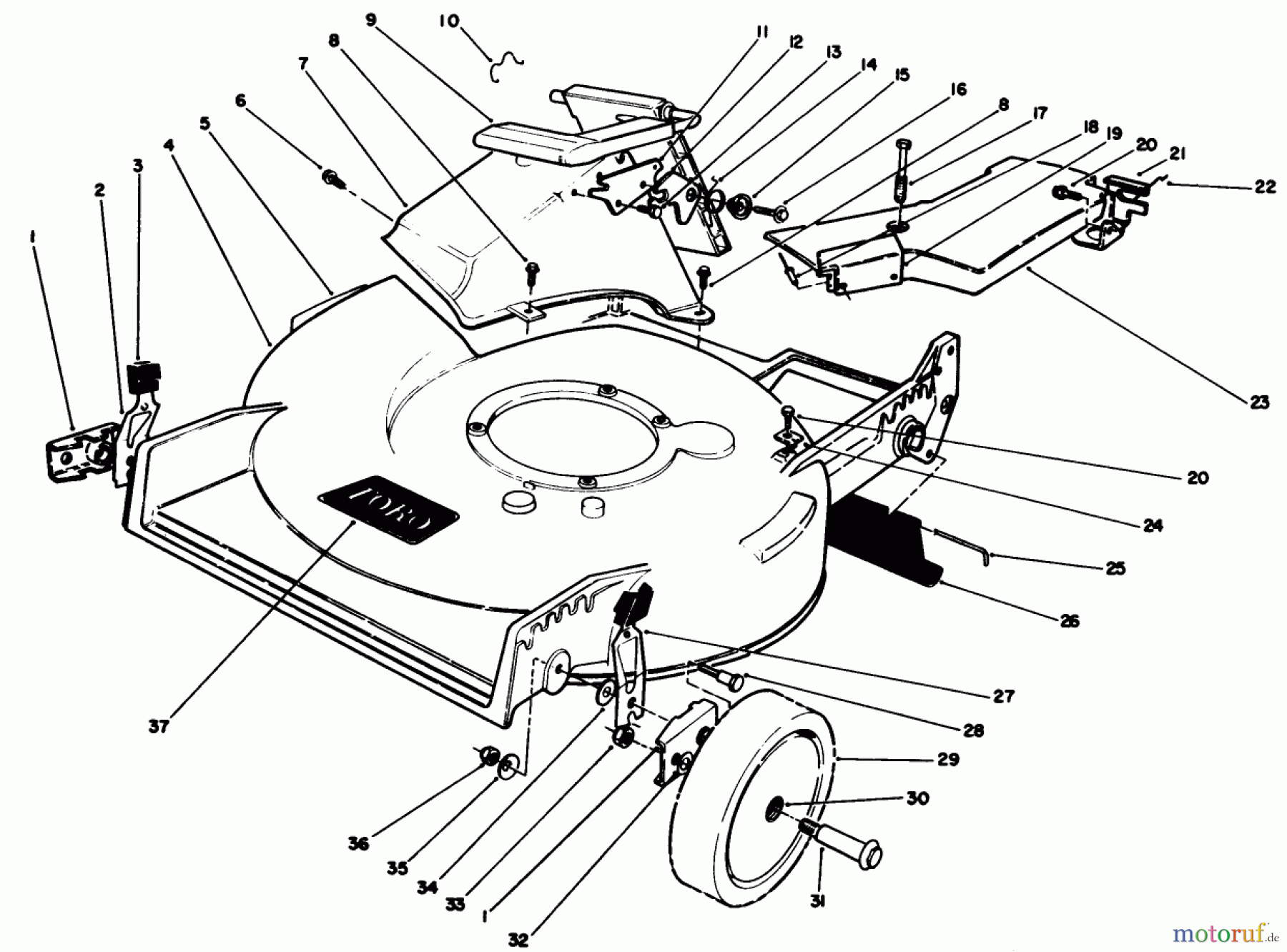

Toro Neu Mowers, Walk-Behind Seite 1 20611 - Toro Lawnmower, 1989 (9000001-9999999) HOUSING ASSEMBLY (USED ON SERIAL NO. 9000101 THRU 9012541)
PosizioneArticolo numeroDescrizione
1 TR47-2940Radlasche
2 TR52-7490Stellhebel
3 TR25-7740Hebelknopf
4 TR11-4089Gehaeuse
5 TR39-5770Schild
6 TR46-6810Schraube
7 TR82-9151TUNNEL-DISCHARGE
8 TR46-6811Schraube
9 TR77-0200Klappe
10 TR47-5840Sicherung
11 TR23-1040Halteplatte
12 TR42-4010Lasche
13 TR46-8090Schraube
14 TR33-4860Schenkelfeder
15 TR43-4840DOOR SPACER
16 TR46-8091Schraube
17 TR37-7260Schraube
18 TR3295-35Niete
19 TR38-8730HEAT SHIELD
20 TR32144-70Schraube
21 TR82-5680-03Halterung
22 TR46-7030RETAINER-CABLE
23 TR52-7404Riemenabdeckung
24 TR62-3720CLAMP-CABLE
25 TR33-3208ROD-SHIELD
26 TR29-9180SHIELD - TRAILING
27 TR52-7480Stellhebel
28 TR44-5270Schraube
29 TR27-6200WHEEL TIRE ASM 8 IN
30 Toro BuchseTR27-6250Buchse
31 Toro RadbolzenTR27-6231Radbolzen
32 Toro ScheibeTR40-1940Scheibe
33 TR32153-11Mutter
34 TR5-4460Scheibe
35 TR3290-456Tellerscheibe
36 Toro MutterTR3296-29Mutter
37 TR70-2200DECAL
