Toro 20333 - 22" Recycler Lawn Mower, 2010 (310000001-310999999) HOUSING AND REAR DOOR ASSEMBLY Ricambi

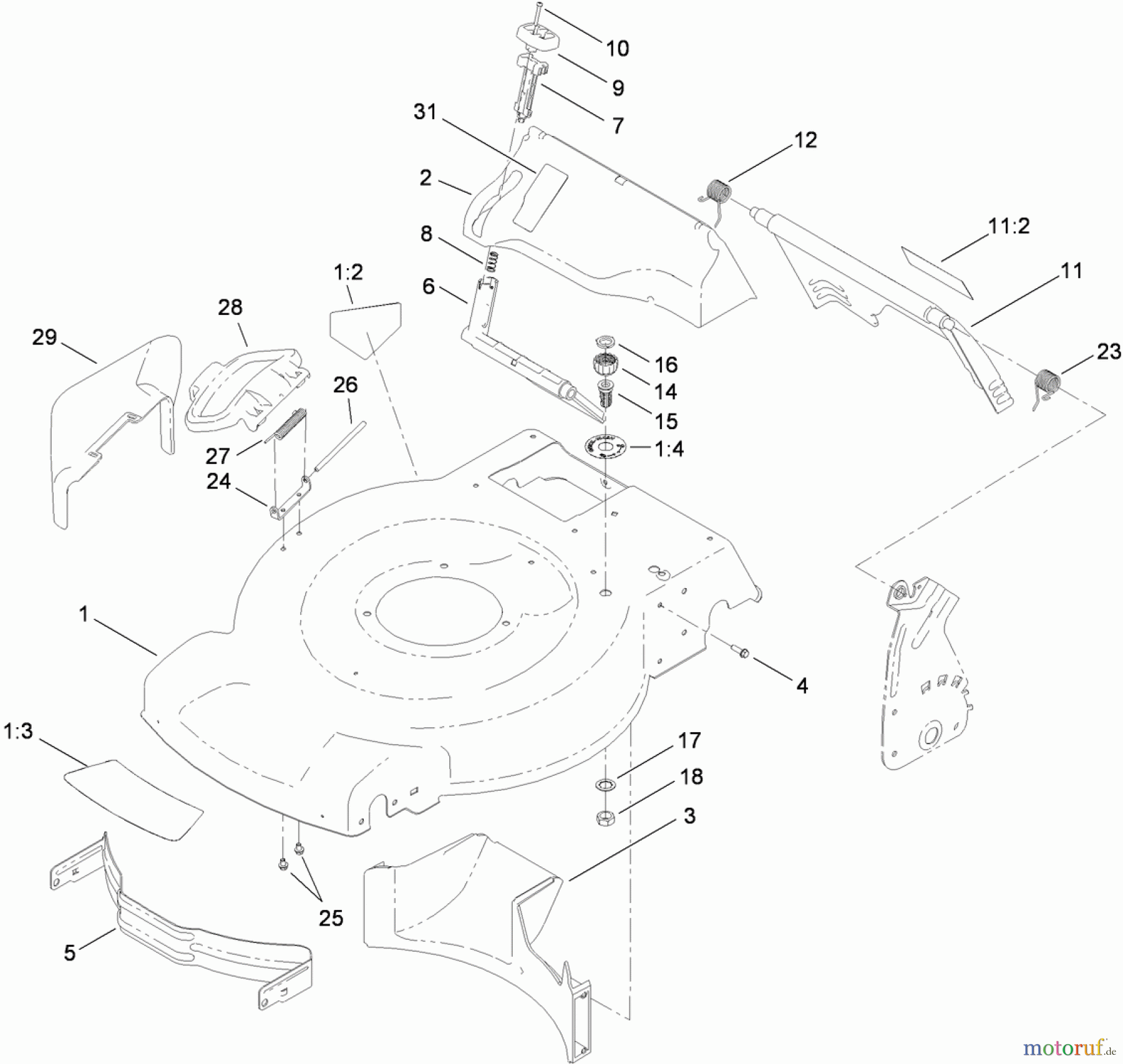

HOUSING AND REAR DOOR ASSEMBLY 20333 - Toro 22" Recycler Lawn Mower, 2010 (310000001-310999999)

Toro Neu Mowers, Walk-Behind Seite 1 20333 - Toro 22
PosizioneArticolo numeroDescrizione
1 TR117-1084HOUSING ASM
1:2 TR94-8072Klebeschild
1:3 TR115-4676DECAL-RECYCLER
1:4 TR112-8867DECAL-PORT, WASHOUT
2 TR115-4677CHUTE-RECYCLE
3 TR114-7961BAFFLE-REAR
4 TR46-8091Schraube
5 TR114-7963-01BAFFLE-FRONT
6 TR114-7960DEFLECTOR-RECYCLE
7 TR114-7959LATCH-RECYCLE
8 TR117-1031SPRING-COMPRESSION
9 TR114-7958KNOB-RECYCLE
10 TR32104-120SCREW-PPH
11 TR114-7992REAR DOOR ASM
11:2 TR114-7982DECAL-WARNING
12 TR114-7924SPRING-TORSION
14 TR112-6401COUPLING-HOSE, WASHOUT PORT
15 TR112-6400PORT-WASHOUT
16 TR112-6438WASHER-SEAL, WASHOUT PORT
17 TR3254-5FEDERRING
18 TR3218-6NUT-JAM
23 TR115-2859SPRING-TORSION
24 TR112-6416BRACKET-COVER
25 TR99-8445SCREW-HWH, TAPTITE
26 TR99-5291Gestaenge
27 TR99-5293SPRING-TORSION
28 TR115-8449DEFLECTOR-SIDE
29 TR115-8447CHUTE-DISCHARGE, SIDE
31 TR117-5928DECAL-BAG ON DEMAND
