Toro 20040 (SR-21OS) - Super Recycler Mower, SR-21OS, 1999 (9900001-9999999) HOUSING, HANDLE BRACKETS & WHEEL ASSEMBLY Ricambi

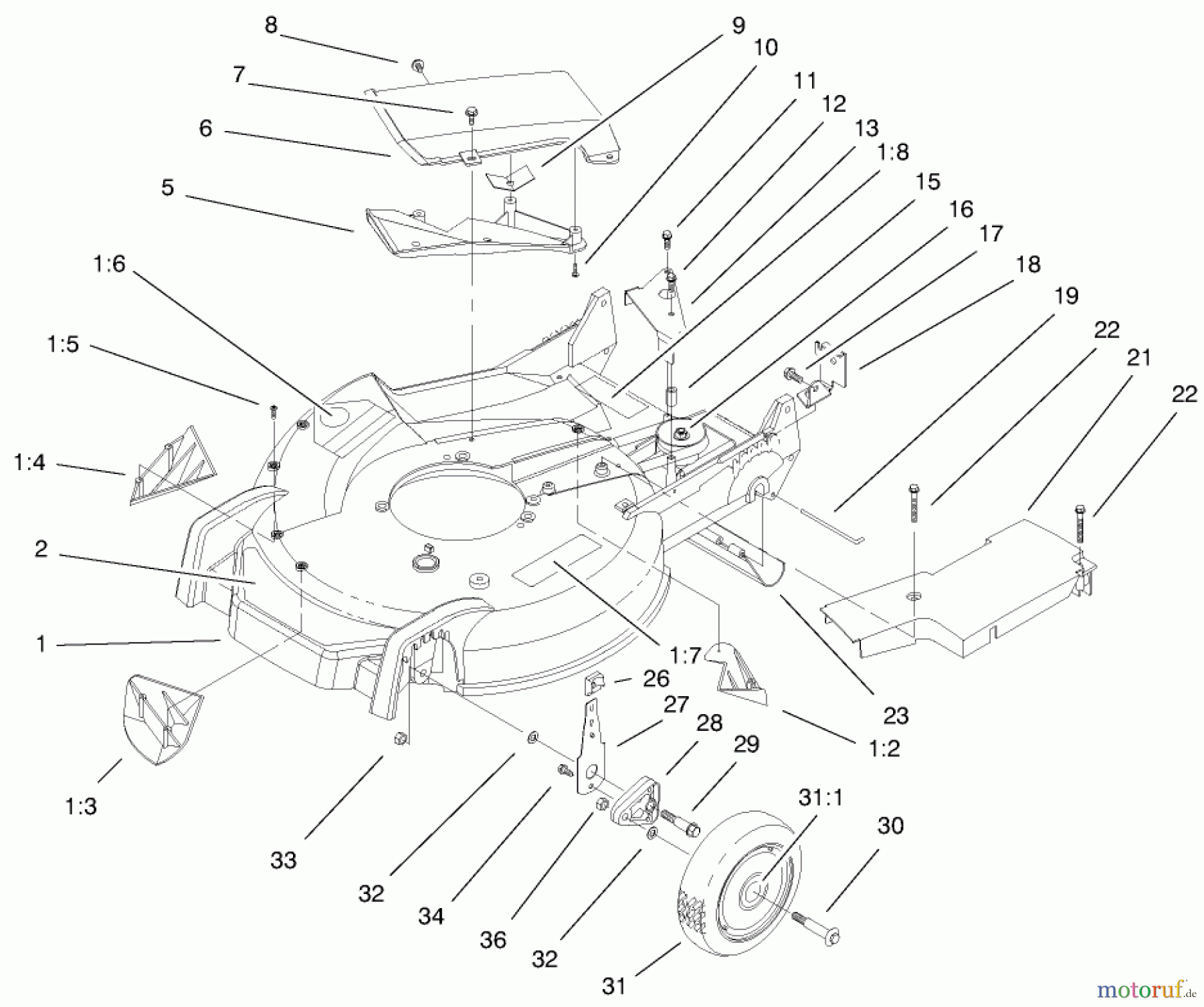

HOUSING, HANDLE BRACKETS & WHEEL ASSEMBLY 20040 (SR-21OS) - Toro Super Recycler Mower, SR-21OS, 1999 (9900001-9999999)

Toro Neu Mowers, Walk-Behind Seite 1 20040 (SR-21OS) - Toro Super Recycler Mower, SR-21OS, 1999 (9900001-9999999) HOUSING, HANDLE BRACKETS & WHEEL ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR105-1307HOUSING-SERVICE
1:2 TR92-1750Deflektor
1:3 TR92-1720Deflektor
1:4 TR92-1730Deflektor
1:5 TR32144-111SCREW-PPH
1:6 TR43-8480DECAL-DANGER
1:7 TR104-8589Klebeschild
1:8 TR99-6018DECAL-WARNING
2 TR99-6010DECAL-DECK
5 TR17-5179COVER W/DEFLECTOR
6 TR100-1183COVER-BLACK
7 TR46-6811Schraube
8 TR46-6810Schraube
9 TR83-4750SAFETY ISSUE, ORDER COVER ASM
11 TR49-2040Schraube
12 TR92-1616Schraube
13 TR99-1513-03Getriebeaufhaengung
15 TR614673Buechse
16 TR104-7618GEAR CASE ASM INS.
17 TR32144-70Schraube
18 TR99-1512-03Seilfuehrung
19 TR33-3208ROD-SHIELD
21 TR98-1502DISCONTINUED
22 TR37-7260Schraube
23 TR112-9989SHIELD-TRAILING
26 TR25-7740Hebelknopf
27 TR66-0541Einstellhebel
28 TR66-0580RADSCHENKEL
29 Toro SchraubeTR66-0560Schraube
30 TR114-3468SCREW-SHOULDER
30 Toro BOLT-SHOULDERTR92-1057BOLT-SHOULDER
31 TR14-9989WHEEL AND TIRE ASM
31 TR98-7130WHEEL ASM
31:1 Toro BuchseTR27-6250Buchse
32 Toro ScheibeTR40-1940Scheibe
33 Toro NUT-LOCKTR3296-6NUT-LOCK
34 TR32144-85Schraube
36 Toro NUT-LOCKTR3296-6NUT-LOCK
36 Toro NUTTR603773NUT
