Toro 20033 - Super Recycler Mower, 2002 (220000001-220999999) HANDLE AND CONTROL ASSEMBLY Ricambi

HANDLE AND CONTROL ASSEMBLY 20033 - Toro Super Recycler Mower, 2002 (220000001-220999999)

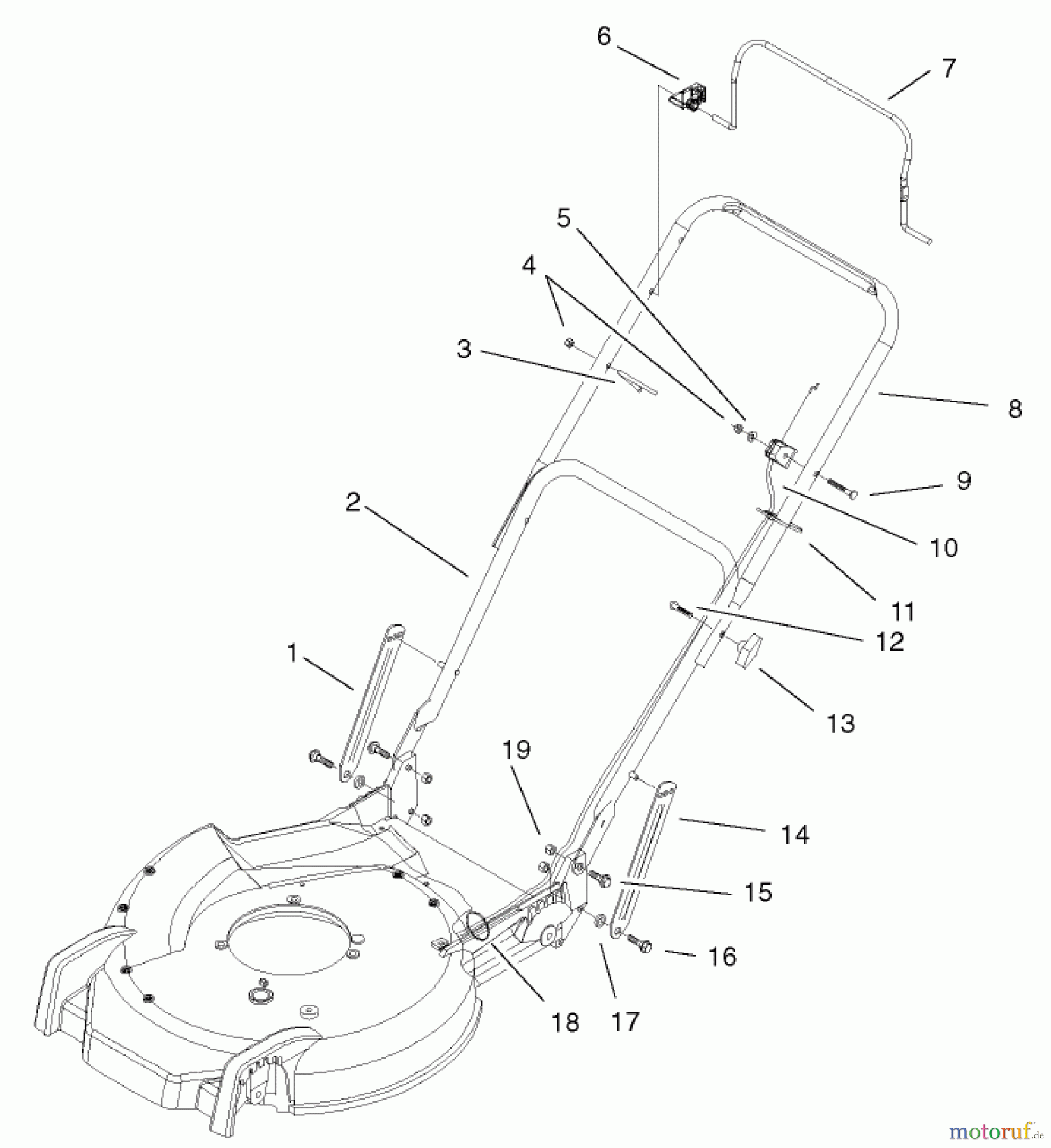

Toro Neu Mowers, Walk-Behind Seite 1 20033 - Toro Super Recycler Mower, 2002 (220000001-220999999) HANDLE AND CONTROL ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR100-3297-03Schiebestangenhalterung
2 TR82-5530Lenkbuegel-Unterteil
3 TR86-9671GUIDE-ROPE
4 TR3296-73MUTTER F. KLEMME
5 TR3256-1SCHEIBE F. KLEMME
6 TR94-6097STOP
7 TR99-1570-03BAIL-BRAKE
8 TR99-6017-05HANDLE-UPPER
9 TR95-4453Schraube
10 TR99-5288CABLE-BRAKE
11 TR614249Kabelband
12 Toro SCREW-HANDLETR92-2260SCREW-HANDLE
13 Toro KNOB-HANDLETR98-7134KNOB-HANDLE
14 TR100-3298-03Halterung Links
15 TR27-7211Schraube
16 TR27-7210SCREW-SHOULDER
17 Toro BuechseTR3-3287Buechse
18 TR100-2894TIE-CABLE
19 TR3296-72Stopmutter
