Toro 03108 - 58" Professional, 1981 (1000001-1999999) MAIN FRAME AND COUNTERBALANCE ASSEMBLY Ricambi

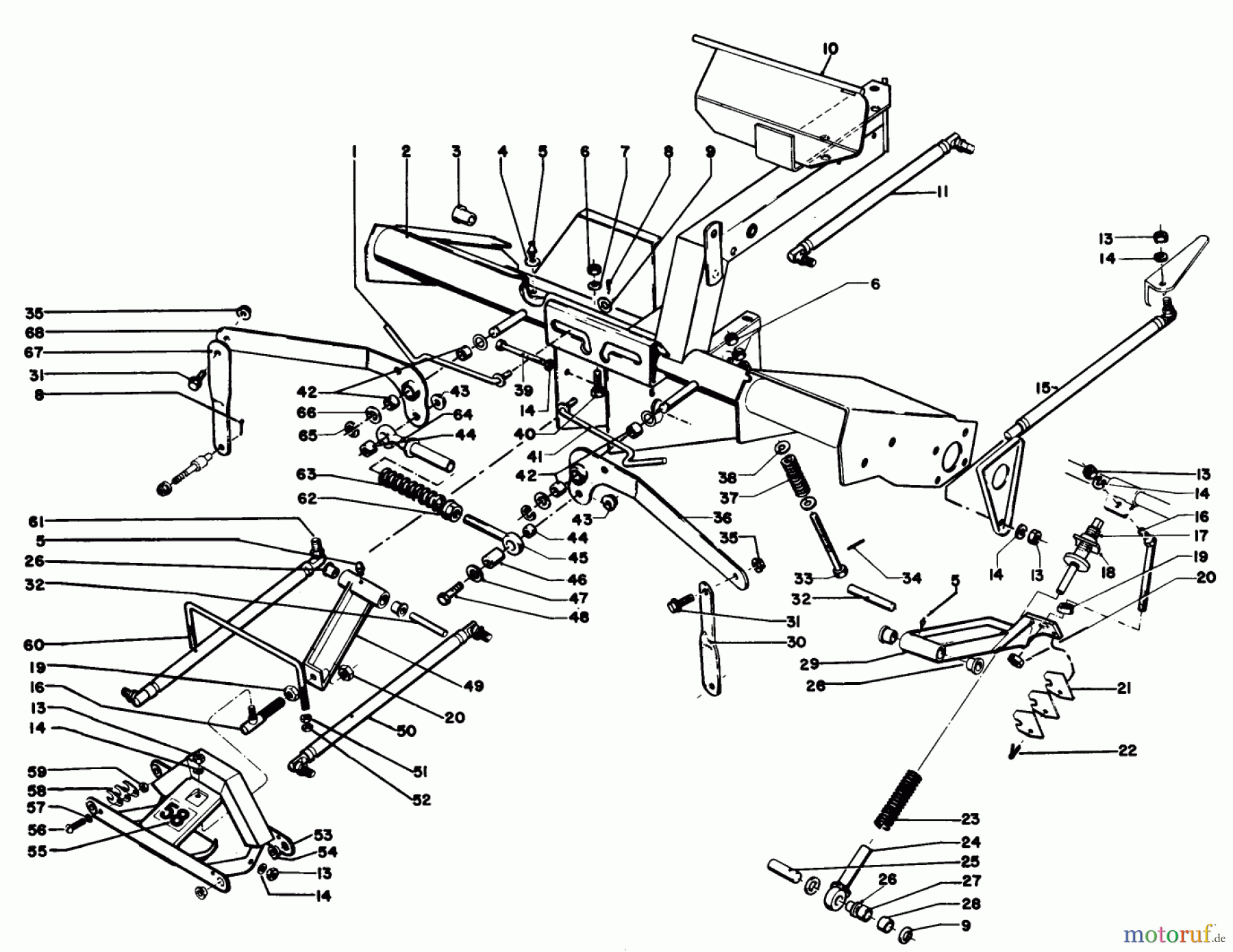

MAIN FRAME AND COUNTERBALANCE ASSEMBLY 03108 - Toro 58" Professional, 1981 (1000001-1999999)

Toro Neu Mowers, Riding 03108 - Toro 58
PosizioneArticolo numeroDescrizione
1 TR3-7321Gestaenge Rechts
2 TR3-7111DISCONTINUED
3 TR256-136Buechse
4 TR3254-8WASHER-LOCK
5 Toro SchmiernippelTR302-5Schmiernippel
6 TR3219-2Mutter
7 TR3253-4Federring
8 TR3272-10PIN-COTTER
9 Toro WASHER-FLATTR3256-24WASHER-FLAT
10 TR5-1013DISCONTINUED
11 TR5-4685Stabilisator
13 TR3219-3NUT-HEX
14 TR3253-21Federring
15 TR5-4682Stabilisator
16 TR5-3776Kugelgelenk
17 TR39-5200Federlagerplatte
18 TR3-6708Mutter
19 TR3296-33Mutter
20 TR3220-6Mutter
21 TR5-4675DISCONTINUED
22 TR3272-23PIN-COTTER
23 TR3-6692Feder
24 TR3-7368Stossdaempferfuehrung
25 TR3-6704DISCONTINUED
26 TR256-155Buechse
27 TR3-6705Buechse
28 TR3-6703DISCONTINUED
29 TR4-5929HALTERUNG
30 TR3-7131DISCONTINUED
31 TR3-7157SHOULDER BOLT
32 TR3-6695Bolzen
33 TR3-7246DISCONTINUED
34 TR32121-7Stift
35 TR3296-4Mutter
36 TR3-7132DISCONTINUED
37 TR3-6685Feder
38 TR3256-23Scheibe
39 TR3211-15Schraube
40 TR3210-8Schraube
41 TR3-7322DISCONTINUED
42 TR256-1Buechse
43 TR32149-5Mutter
44 TR256-154BUSHING
45 TR3-1029BOLZEN
46 TR17-0860DISCONTINUED
47 TR3256-3Scheibe
48 TR3210-7SCREW-HH
49 TR3-1009DISCONTINUED
50 TR5-4684Stabilisator
51 TR3217-5Mutter
52 Toro MutterTR3296-42Mutter
53 TR5-4691DISCONTINUED
54 TR256-156BUECHSE
55 TR3-7768DISCONTINUED
56 TR3251-5SCHRAUBE
57 TR5-3637Scheibe
58 TR5-3631Platte
59 TR3296-2Mutter
60 TR5-4687DISCONTINUED
61 TR5-4672Kugelgelenk
62 TR32128-15NUT-LOCK, FLANGE
63 TR3-7152DISCONTINUED
64 TR3-7147DISCONTINUED
65 TR32120-47RING-RETAINING, EXTERNAL
66 TR3256-26WASHER-FLAT
67 TR3-7155DISCONTINUED
68 TR3-7153DISCONTINUED
