MTD-Engines 1T65NUB 752Z1T65NUB (2018) Governor lever, Short block, Cylinder head cover Ricambi

Governor lever, Short block, Cylinder head cover 752Z1T65NUB (2018)

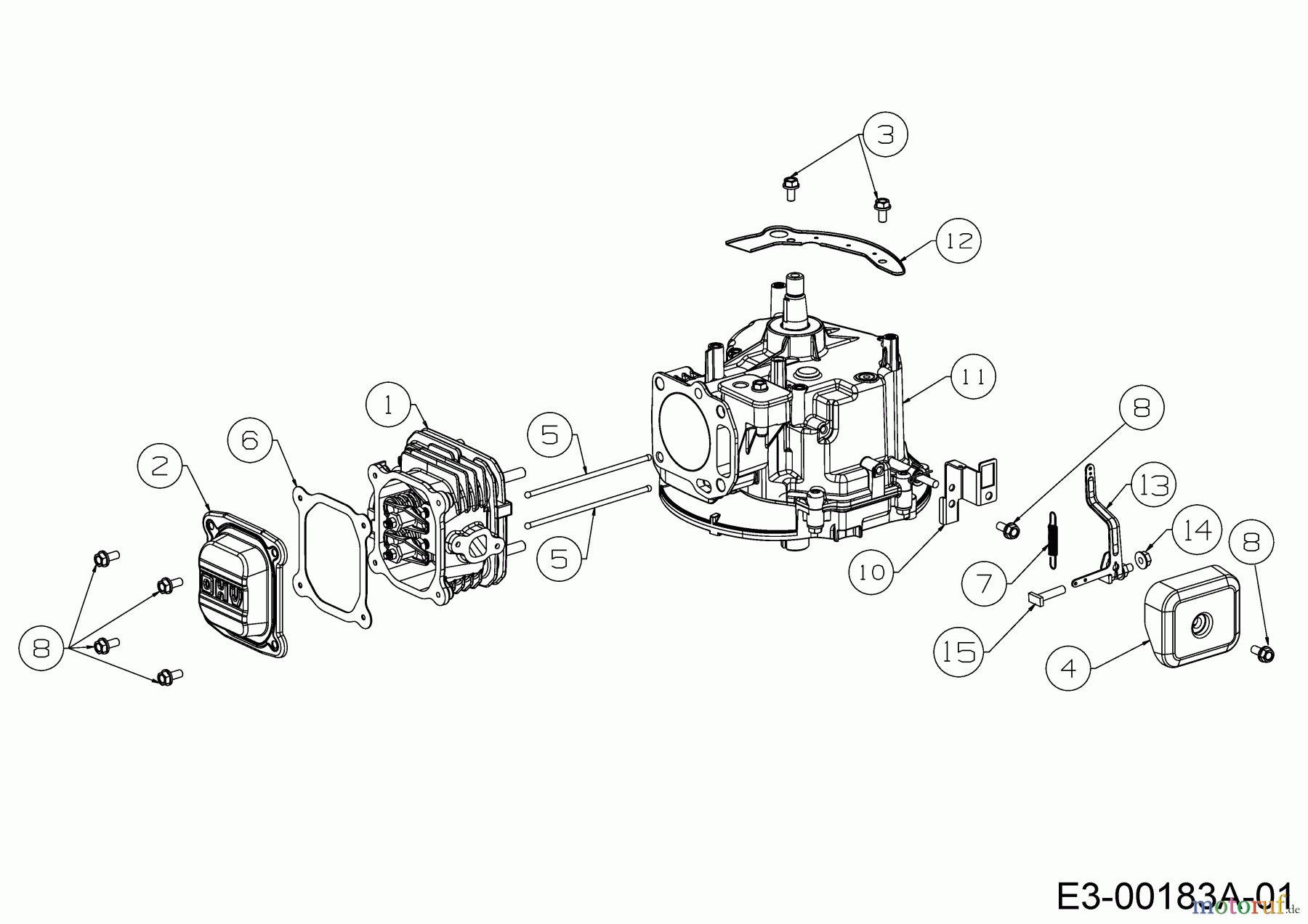

MTD-Engines Vertical 1T65NUB 752Z1T65NUB (2018) Governor lever, Short block, Cylinder head cover
PosizioneArticolo numeroDescrizione
1 651-05162HEAD CYLINDER COMPL.
2 708-05094VALVE COVER
3 710-04914BOLT M6-1X10
4 731-10287GOVERNOR SHIELD
5 751-10314PUSH ROD KIT 1P61/65 161-SH
6 751-11551VALVE COVER GASKET
7 751-14411RETURN SPRING
8 710-04916BOLT M6X14
10 708-05135CONTROL BRACKET
11 651-05563
12 708-05269PROTECTION PLATE
13 751-14685ARM, GOVERNOR
14 712-04211NUT:HEX:FLG M6-1
15 710-06221BOLT GOVERNOR ARM
