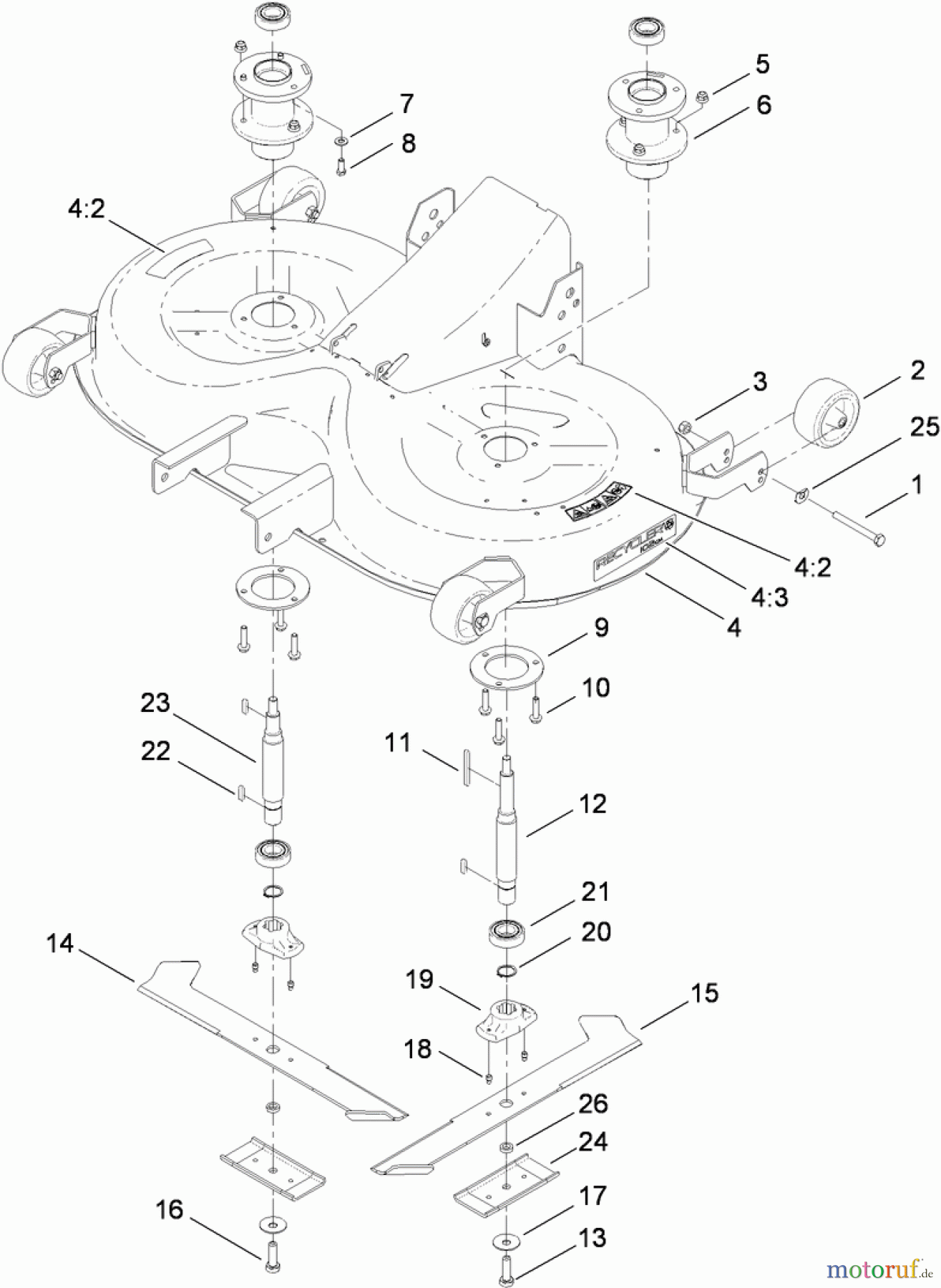

CUTTING PAN AND MOWER HOUSING ASSEMBLY 74573 (DH 200) - Toro DH 200 Lawn Tractor, 2010 (310000001-310999999)

Toro Neu Mowers, Lawn & Garden Tractor Seite 1 74573 (DH 200) - Toro DH 200 Lawn Tractor, 2010 (310000001-310999999) CUTTING PAN AND MOWER HOUSING ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR33115-090SCREW-HH
2 Toro WHEEL-GAUGETR104-3080WHEEL-GAUGE
3 Toro NUT-LOCK, NITR33025-00NUT-LOCK, NI
4 TR110-9071DECK ASM
4:2 TR119-2726DECAL-DANGER
4:3 TR119-2727DECAL-RECYCLER
5 TR104-3082Stopmutter
6 TR107-8992HOUSING-SPINDLE
7 TR33094-00SCHEIBE
8 TR33114-020SCREW-HH
9 TR104-3084RING
10 TR104-3085Schraube
11 TR104-3086KEY
12 TR106-8565SHAFT-BLADE, LEFT
13 TR106-5797Schraube
14 TR106-8557BLADE-RH
15 TR106-8558Messer-Links
16 TR106-5798Schraube
17 Toro SpannscheibeTR106-6532Spannscheibe
18 Toro PIN-SHEAR, GROOVEDTR104-3093PIN-SHEAR, GROOVED
19 TR106-4185MESSERNABE
20 TR104-3095RING-LOCKING
21 TR116-0720BEARING-BALL
22 TR104-3097Keil
23 TR106-8566Welle
24 TR106-6533Messerfuehrung
25 TR106-5767WASHER
26 Toro SPACERTR106-6530SPACER
