Toro 13AP91RT848 (LX468) - LX468 Lawn Tractor, 2011 (1-1) ENGINE COMPONENT ASSEMBLY Ricambi

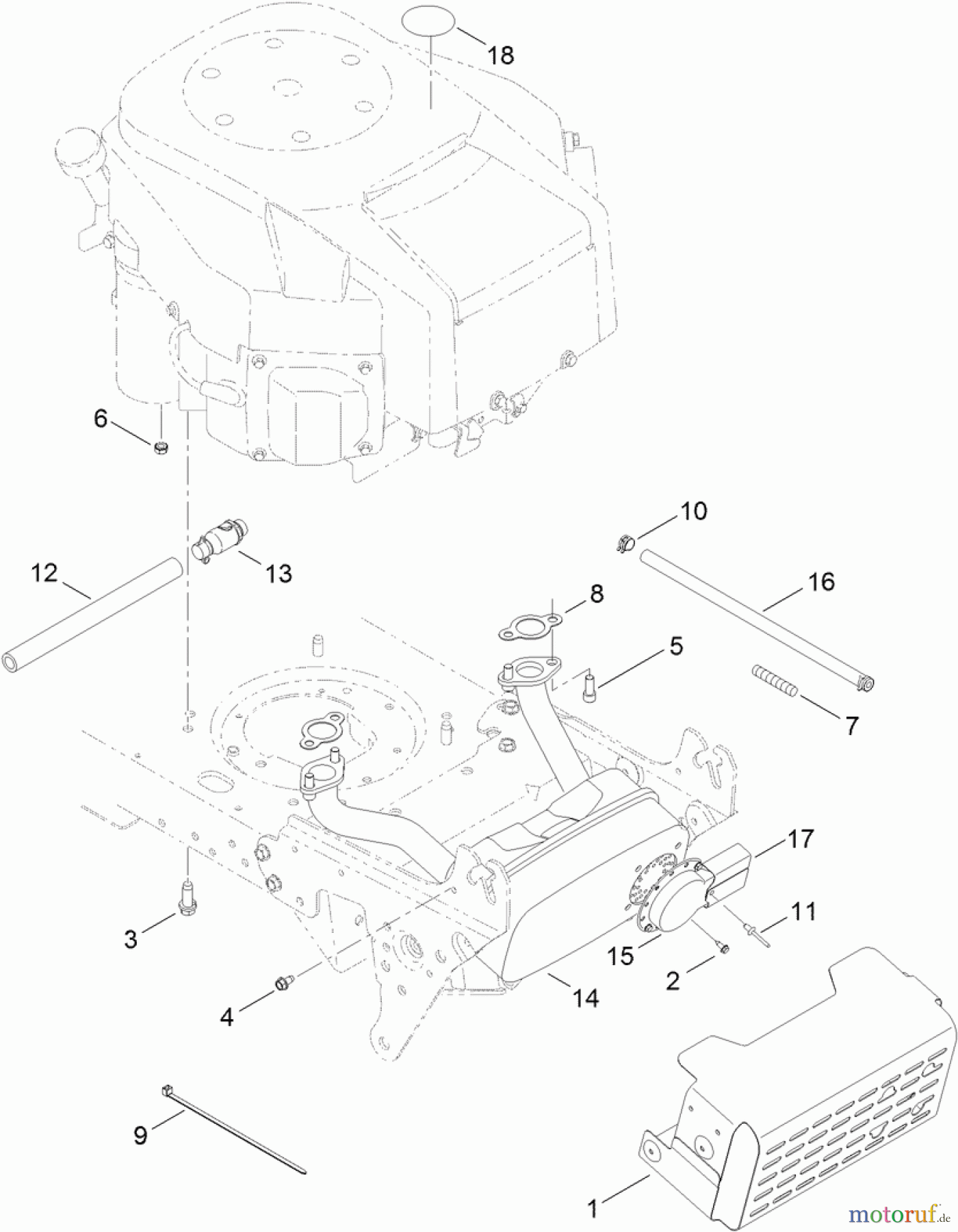

ENGINE COMPONENT ASSEMBLY 13AP91RT848 (LX468) - Toro LX468 Lawn Tractor, 2011 (1-1)

Toro Neu Mowers, Lawn & Garden Tractor Seite 1 13AP91RT848 (LX468) - Toro LX468 Lawn Tractor, 2011 (1-1) ENGINE COMPONENT ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR112-6202SHIELD-MUFFLER
2 TR112-0626SCREW-HWHTF
3 TR112-6163SCREW-HH, TAP
4 TR112-0524SCREW-HWHTF
5 TR112-6012SCREW-HSH
6 TR112-0546NUT-SEMS
7 TR119-9145HOSE-VENT
8 TR119-9146GASKET-EXHAUST
9 TR112-0527TIE-CABLE
10 TR112-0573CLAMP-HOSE
11 TR112-3741RIVET-POP
12 TR112-0553HOSE-DRAIN
13 TR110-9890DRAIN-OIL
14 TR112-6164MUFFLER-TWIN
15 TR112-0453DEFLECTOR-MUFFLER
16 TR112-0720HOSE-FUEL
17 TR119-9147DEFLECTOR-MUFFLER
18 TR112-5960DECAL-CHECK OIL
