46 INCH DECK ASSEMBLY 13AP91RT848 (LX468) - Toro LX468 Lawn Tractor, 2011 (1-1)

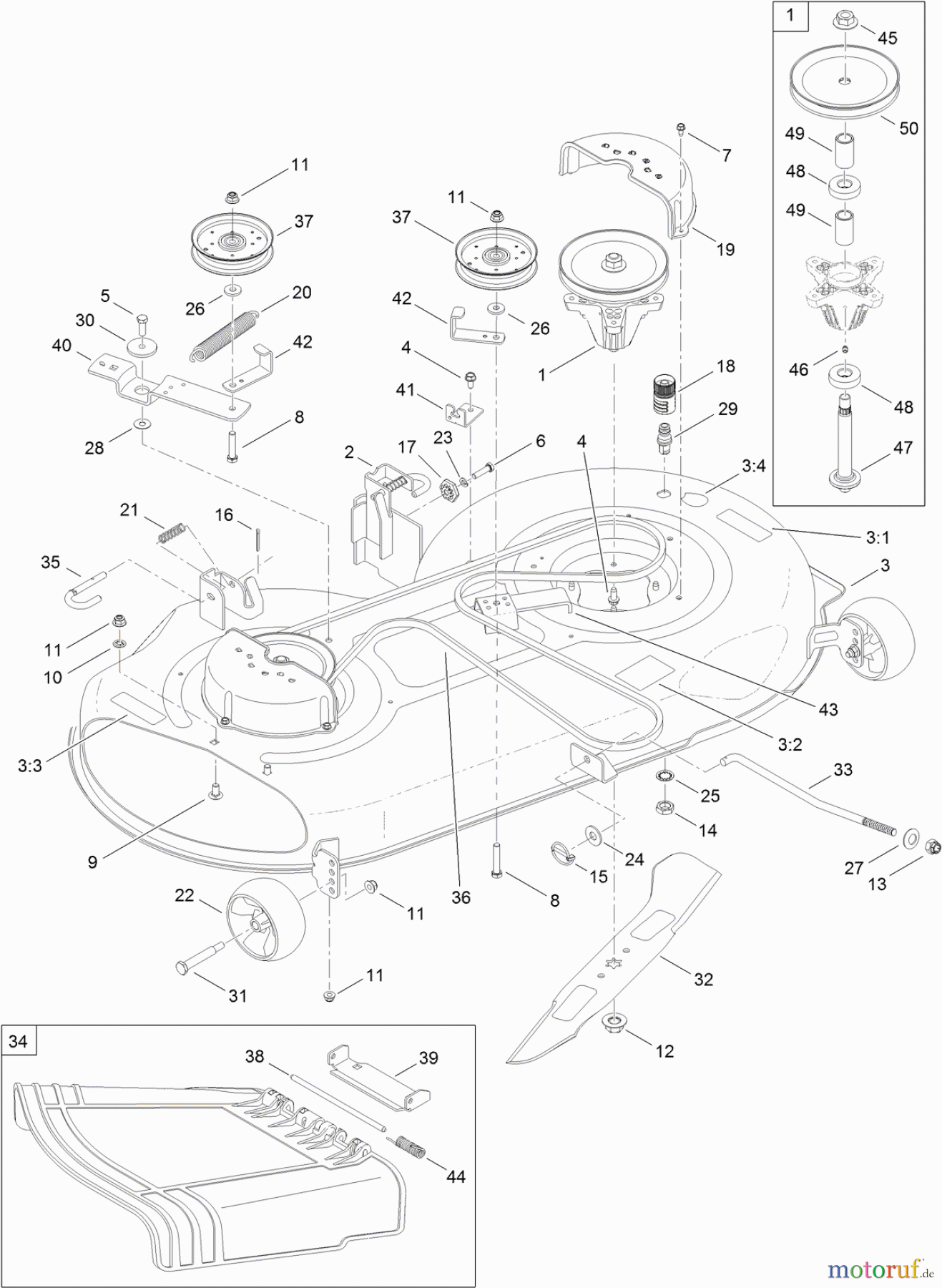

Toro Neu Mowers, Lawn & Garden Tractor Seite 1 13AP91RT848 (LX468) - Toro LX468 Lawn Tractor, 2011 (1-1) 46 INCH DECK ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR119-9060SPINDLE ASM
2 TR112-0413LH HANGER BRACKET ASM
3 TR119-913146 INCH DECK AND DECAL ASM
3:1 TR112-6284DECAL-DECK
3:2 TR119-8476DECAL-BELT ROUTING
3:3 TR112-6285DECAL-CHUTE
3:4 TR119-8474DECAL-DECK WASH SYSTEM
4 TR112-6070SCREW-TAP
5 TR112-0492SCREW-HH
6 TR112-0373SCREW-HH
7 TR112-0524SCREW-HWHTF
8 TR112-0421SCREW-HH
9 TR112-0452BOLT-CARR
10 TR112-0440NUT-PUSH
11 TR112-0668NUT-LOCK, FLANGE
12 TR112-0330NUT-LOCK, FLANGE
13 TR119-8449NUT
14 TR112-0351NUT-HEX
15 TR119-9062PIN-LYNCH
16 TR112-0412PIN-COTTER
17 TR112-0327GEAR-ADJUSTMENT, DECK
18 TR112-0916ADAPTER-NOZZLE, WATER
19 TR119-9063COVER-BELT, UNIVERSAL
20 TR112-6043SPRING-EXTENSION
21 TR119-8451SPRING-COMPRESSION
22 TR112-0677WHEEL-DECK, FRONT
23 TR112-0366WASHER-LOCK
24 TR119-8454WASHER-FLAT
25 TR112-0643WASHER-LOCK
26 TR112-0541WASHER-FLAT
27 TR119-8455WASHER-BELLVILLE
28 TR119-9065WASHER-FLAT
29 TR112-6274NOZZLE-WATER, DECK
30 TR112-0584SPACER-SHOULDER
31 TR112-0325BOLT-SHOULDER
32 TR119-9066BLADE-2-IN-1
33 TR119-8457ROD-LIFT, DECK
34 TR119-9067CHUTE ASM
35 TR112-0436PIN-HANDLE, DECK RELEASE
36 TR119-9068BELT-V
37 TR112-0314PULLEY-IDLER
38 TR119-8461PIN-HINGE
39 TR119-9069BRACKET-CHUTE
40 TR119-8464BRACKET-PIVOT, IDLER
41 TR119-8465BRACKET-CABLE, DECK ENGAGE
42 TR119-8466BRACKET-GUARD, BELT
43 TR119-8469BRACKET-SUPPORT, IDLER
44 TR119-8463SPRING-TORSION
45 TR112-0330NUT-LOCK, FLANGE
46 TR112-0926FITTING-GREASE
47 TR112-6278SHAFT-SPINDLE
48 TR112-0377BEARING-BALL
49 TR112-6252SPACER
50 TR119-9070PULLEY-DECK
