Toro 13AP91RT848 (LX468) - LX468 Lawn Tractor, 2010 (1-1) FRAME, BATTERY AND ELECTRIC PTO ASSEMBLY Ricambi

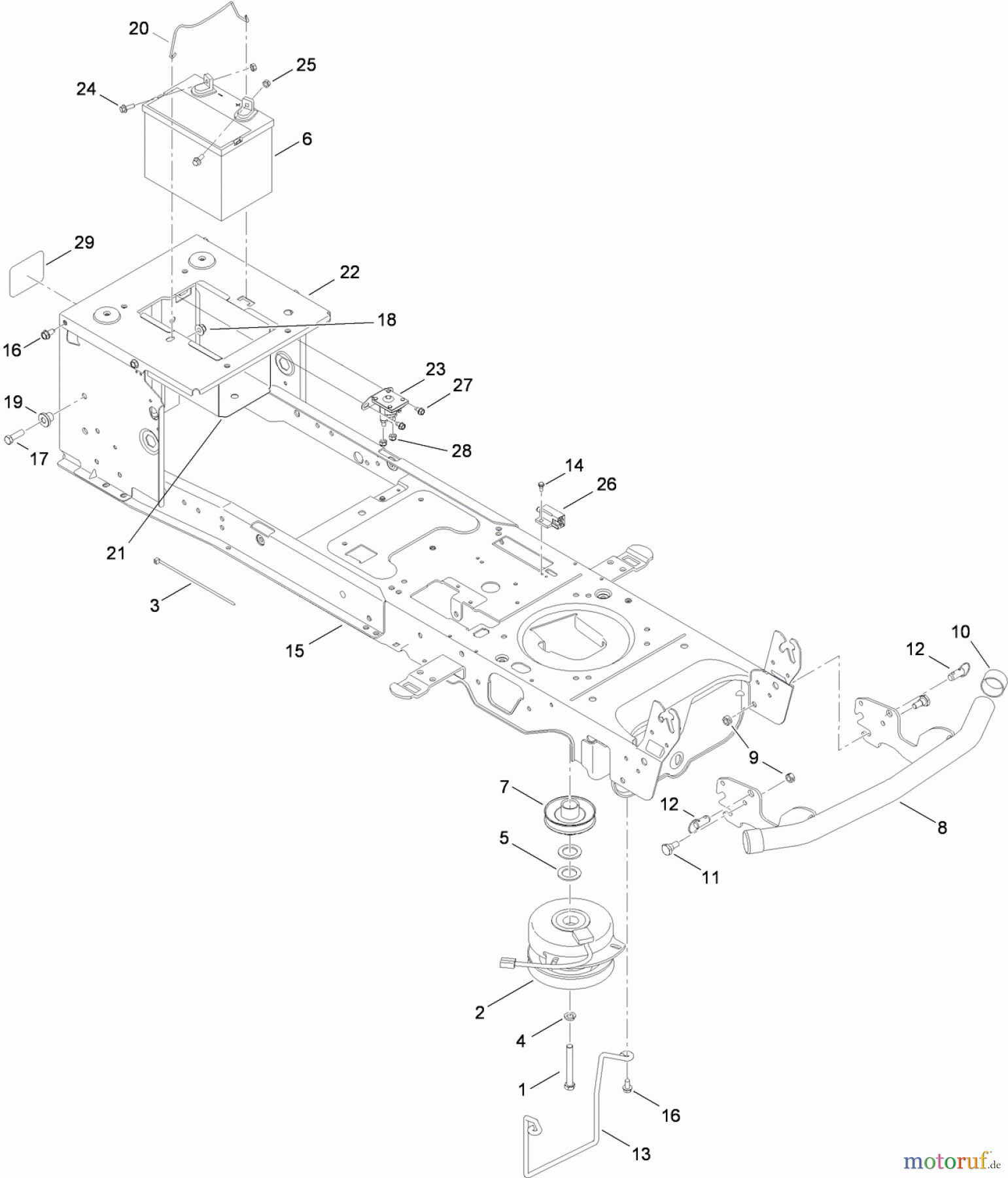

FRAME, BATTERY AND ELECTRIC PTO ASSEMBLY 13AP91RT848 (LX468) - Toro LX468 Lawn Tractor, 2010 (1-1)

Toro Neu Mowers, Lawn & Garden Tractor Seite 1 13AP91RT848 (LX468) - Toro LX468 Lawn Tractor, 2010 (1-1) FRAME, BATTERY AND ELECTRIC PTO ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR112-0561SCREW-HH
2 TR119-9057CLUTCH-PTO, ELECTRIC
3 TR112-0527TIE-CABLE
4 TR112-0428WASHER-LOCK
5 TR112-0420WASHER-FLAT
6 TR112-0425BATTERY-245, CCA (DRY FLAT TOP
7 TR112-6045PULLEY-ENGINE
8 TR119-9071BUMPER-UNIVERSAL
9 TR112-0909NUT-LOCK
10 TR112-5968CAP-HUB
11 TR112-0565BOLT-SHOULDER
12 TR119-3954PIN-RELEASE, QUICK
13 TR119-3995ROD-KEEPER
14 TR112-6206BOLT-SHOULDER
15 TR119-3993
16 TR112-6070SCREW-TAP
17 TR112-0557SCREW-HH
18 TR112-0668NUT-LOCK, FLANGE
19 TR112-0661SPACER-SHOULDER
20 TR112-0581ROD-HOLDDOWN, BATTERY
21 TR112-0570TRAY-BATTERY
22 TR112-6209BRACKET-FRAME, SEAT
23 TR112-6073SOLENOID-12V, 2 POST 2 TAB
24 TR119-3994BOLT
25 TR112-0546NUT-SEMS
26 TR112-6210SWITCH-INTERLOCK, NO/NC
27 TR112-6022SCREW-TAP
28 TR112-0636NUT-LOCK, FLANGE
29 TR119-8483DECAL-RELEASE
99 TR119-9058HARNESS-WIRING
