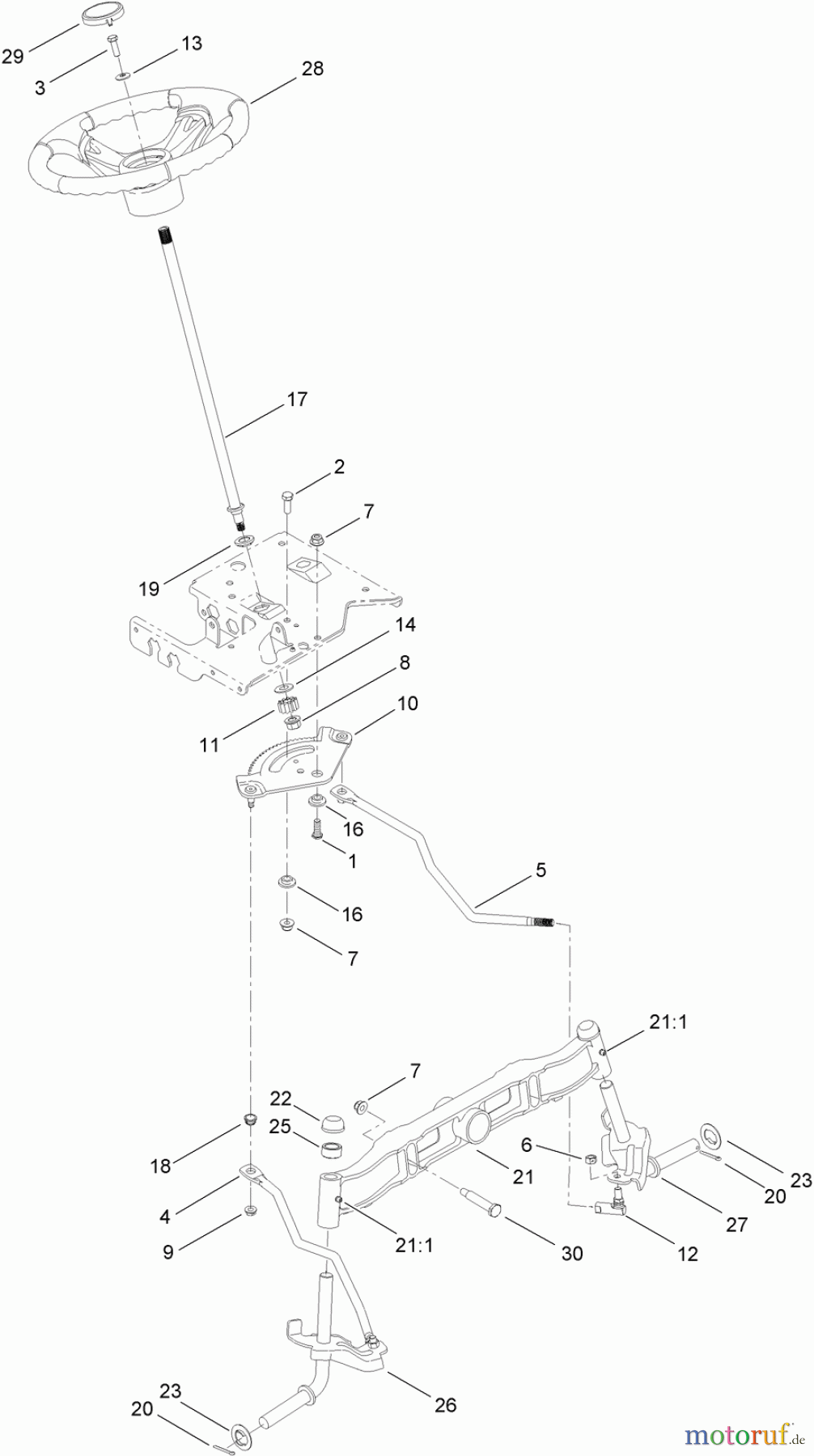

STEERING AND FRONT AXLE ASSEMBLY 13AP61RH048 (LX468) - Toro LX468 Lawn Tractor, 2008 (SN 1C108H20348-)

Toro Neu Mowers, Lawn & Garden Tractor Seite 1 13AP61RH048 (LX468) - Toro LX468 Lawn Tractor, 2008 (SN 1C108H20348-) STEERING AND FRONT AXLE ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR112-0631SCREW-HH
2 TR112-0492SCREW-HH
3 TR112-0473SCREW-HH
4 TR112-0355LINK-DRAG, RH
5 TR112-0346LINK-DRAG, LH
6 TR112-0483NUT-HEX, LOCK
7 TR112-0668NUT-LOCK, FLANGE
8 TR112-0859NUT-LOCK, FLANGE
9 TR112-0511NUT-LOCK, FLANGE
10 TR119-3976GEAR-STEERING
11 TR112-0863GEAR-PINION, STEERING
12 TR112-0917BALL JOINT ASM
13 TR112-0924WASHER-FLAT
14 TR112-0925WASHER-FLAT
16 TR112-0881SPACER-SHOULDER
17 TR112-6097SHAFT-STEERING
18 TR112-0929BUSHING
19 TR112-6098BEARING-FLANGE, HEX
20 TR112-0860PIN-COTTER
21 TR112-6099PIVOT-AXLE, CAST IRON
21:1 TR112-0926FITTING-GREASE
22 TR112-0323CAP
23 TR112-5972WASHER-FLAT
25 TR112-6136SPACER
26 TR112-6015RH AXLE ASM
27 TR112-6016LH AXLE ASM
28 TR112-0438WHEEL-STEERING, SOFTGRIP
29 TR112-3734CAP-WHEEL, STEERING
30 TR112-0699BOLT-SHOULDER
