Toro 13AP61RH048 (LX468) - LX468 Lawn Tractor, 2008 (SN 1C108H20348-) CRANKCASE ASSEMBLY KOHLER SV715-0016 Ricambi

CRANKCASE ASSEMBLY KOHLER SV715-0016 13AP61RH048 (LX468) - Toro LX468 Lawn Tractor, 2008 (SN 1C108H20348-)

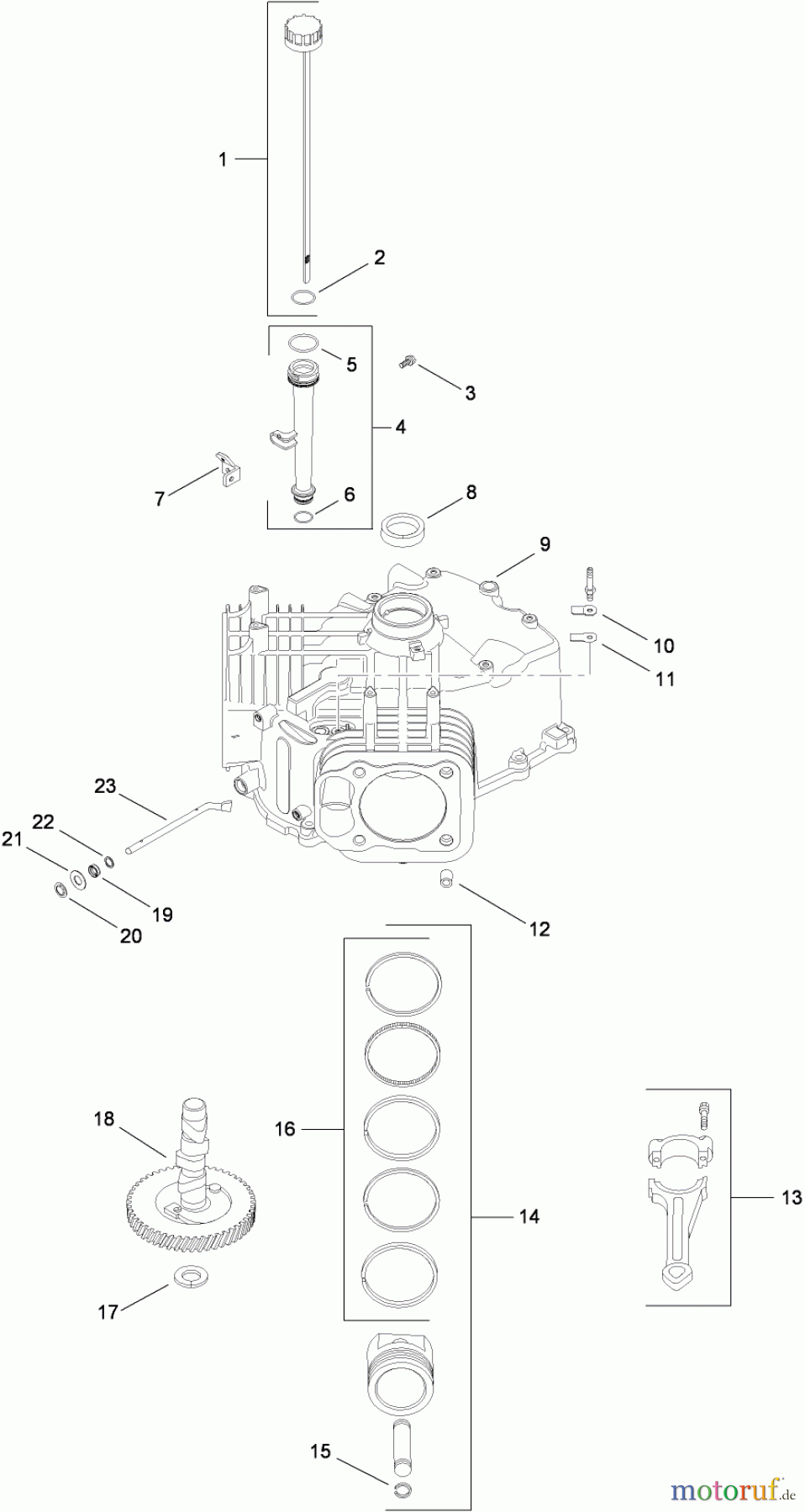

Toro Neu Mowers, Lawn & Garden Tractor Seite 1 13AP61RH048 (LX468) - Toro LX468 Lawn Tractor, 2008 (SN 1C108H20348-) CRANKCASE ASSEMBLY KOHLER SV715-0016

Posizione		Articolo numero	Descrizione
2		KH2515302-S	O-RING, DIPSTICK
3		KHM-545013-S	SCREW, FLG THD FRM M5X0.8X13
4		KH2512307-S	TUBE ASSEMBLY
5		KH1215302-S	O-RING, UPPER OIL FILL TUBE
6		KH1215301-S	O-RING, LOWER OIL FILL TUBE
7		KH2412619-S	BRACKET, OIL FILL TUBE
8		KH2403219-S	SEAL, OIL (HELIX LIP)
10		KH2401804-S	RETAINER, BREATHER REED
11		KH1240202-S	REED, BREATHER
12		KH2438016-S	PIN, LOCATING
13		KH2406724-S	SIEHE 2406728-S-KOH
14		KH2487426-S	KIT, PISTON-USE 25 874 01-S
14		KH2487428-S	USE 25 874 03-S
14		KH2487427-S	USE K24 874 02-S ,KIT PISTON
15		KH2401801-S	RETAINER, PISTON PIN
16		KH2410822-S	RING SET (STD)
16		KH2410816-S	RING SET (.25)
17		KH1242207-S	SHIM, CAMSHAFT (WHITE .028")
17		KH1242208-S	SHIM, CAMSHAFT (BLUE .03")
17		KH1242209-S	SHIM, CAMSHAFT (RED .032")
17		KH1242210-S	SHIM, CAMSHAFT (YELLOW .034")
17		KH1242211-S	SHIM, CAMSHAFT (GREEN .036")
17		KH1242212-S	SHIM, CAMSHAFT (GRAY .038")
17		KH1242213-S	SHIM, CAMSHAFT (BLACK .04")
18		KH3201201-S	KIT, CAMSHAFT
19		KH2803209-S	SEAL, GOVERNOR CROSS SHAFT
20		KH2401809-S	RETAINER, RING
21		KHM-931010-S	WASHER, FLAT 9 MM
22		KH2446815-S	WASHER, FLAT 11/32"
23		KH2414438-S	SHAFT, GOVERNOR CROSS
24		KH2535714-S	LUBRICANT, CAMSHAFT
