Toro 13AP61RH048 (LX468) - LX468 Lawn Tractor, 2008 (SN 1C108H20348-) 46 INCH DECK ASSEMBLY (ELECTRIC PTO) Ricambi

46 INCH DECK ASSEMBLY (ELECTRIC PTO) 13AP61RH048 (LX468) - Toro LX468 Lawn Tractor, 2008 (SN 1C108H20348-)

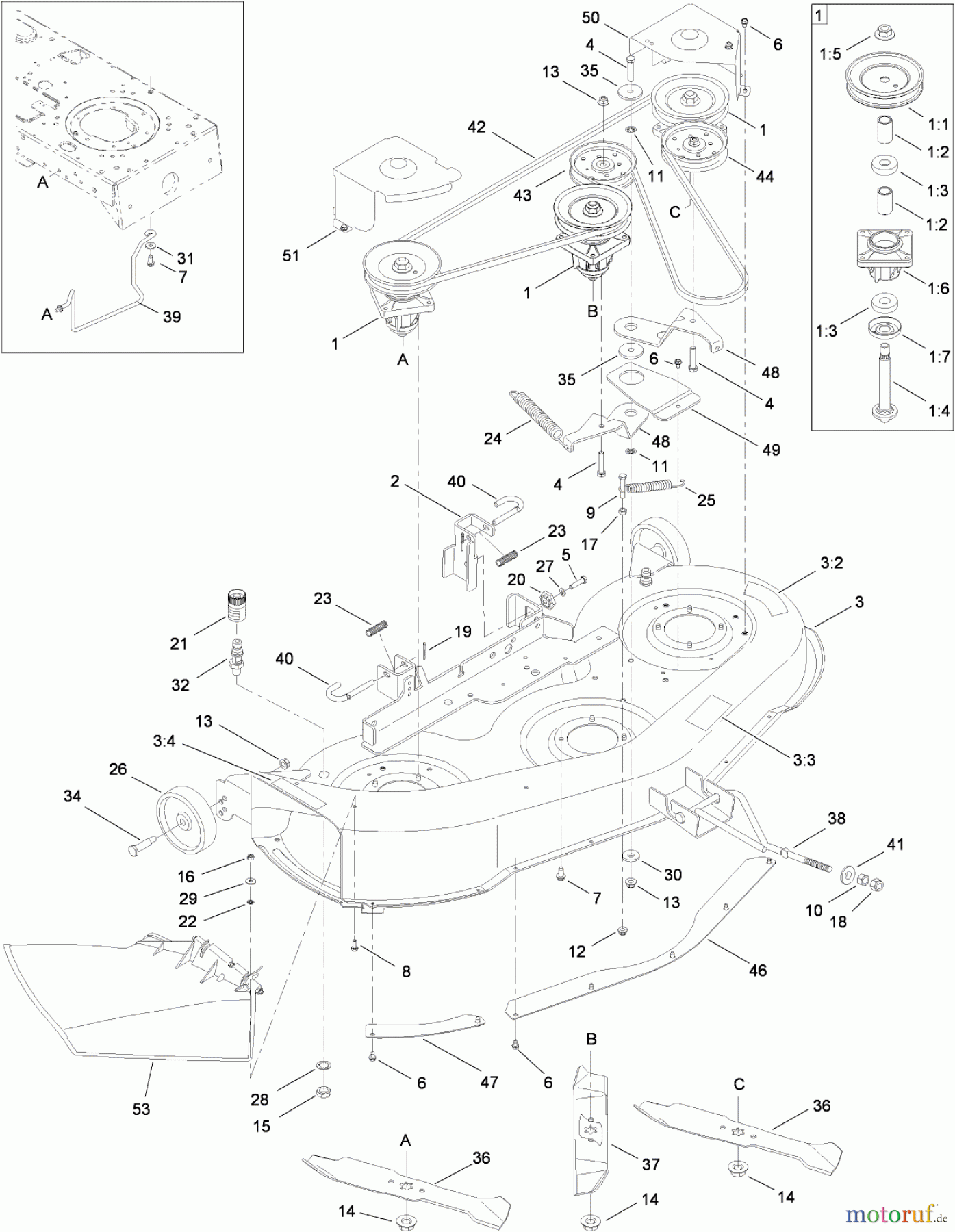

Toro Neu Mowers, Lawn & Garden Tractor Seite 1 13AP61RH048 (LX468) - Toro LX468 Lawn Tractor, 2008 (SN 1C108H20348-) 46 INCH DECK ASSEMBLY (ELECTRIC PTO)
PosizioneArticolo numeroDescrizione
1 TR112-6276SPINDLE ASM
1:1 TR112-0382PULLEY-DECK
1:2 TR112-0654SPACER
1:3 TR112-0377BEARING-BALL
1:4 TR119-9052KIT-SHAFT, SPINDLE
1:5 TR112-0330NUT-LOCK, FLANGE
1:6 TR112-6157HOUSING-SPINDLE
1:7 TR112-5923BEARING-SHOULDER
2 TR112-0413LH HANGER BRACKET ASM
3 TR112-6168DECK ASM
3:2 TR112-1267DECAL-DANGER
3:3 TR112-6178DECAL-BELT ROUTING
3:4 TR112-1265DECAL-DANGER
4 TR112-0513SCREW-HH
5 TR112-0373SCREW-HH
6 TR112-0524SCREW-HWHTF
7 TR112-0395SCREW-HWH
8 TR112-0499SCREW-HH
9 TR112-0590SCREW-HH
10 TR112-0458NUT-HEX
11 TR112-0440NUT-PUSH
12 TR112-0650NUT-LOCK, FLANGE
13 TR112-0668NUT-LOCK, FLANGE
14 TR112-0330NUT-LOCK, FLANGE
15 TR112-0351NUT-HEX
16 TR112-0522NUT-HEX
17 TR112-0437NUT-HEX
18 TR112-0476NUT-LOCK, HEX (NYLON)
19 TR112-0568PIN-COTTER
20 TR112-0327GEAR-ADJUSTMENT, DECK
21 TR112-0916ADAPTER-NOZZLE, WATER
22 TR112-0623RETAINER-BOLT
23 TR112-0406SPRING-COMPRESSION
24 TR112-0324SPRING-EXTENSION
25 TR112-6169SPRING-EXTENSION
26 TR112-0337WHEEL-DECK, REAR
27 TR112-0366WASHER-LOCK
28 TR112-0643WASHER-LOCK
29 TR112-0485WASHER-SPRING
30 TR112-0380WASHER-FLAT
31 TR112-0544WASHER-FLAT
32 TR112-0879NOZZLE-WATER, DECK
34 TR112-0334BOLT-SHOULDER
35 TR112-0584SPACER-SHOULDER
36 TR112-0304BLADE-16.28 INCH
37 TR112-0302BLADE-14.88 INCH
38 TR112-6155ROD-DECK
39 TR112-6170ROD-KEEPER, BELT
40 TR112-0436PIN-HANDLE, DECK RELEASE
41 TR112-0641CUP-PIVOT, LIFT
42 TR112-6171BELT-TYPE A
43 TR112-0314PULLEY-IDLER
44 TR112-0303PULLEY-IDLER, 3.50 INCH
46 TR112-0464SKIRT-CENTER, DECK
47 TR112-0400SKIRT-RH, DECK
48 TR112-6172BRACKET-IDLER
49 TR112-6173BRACKET-SUPPORT
50 TR112-6174COVER-BELT
51 TR112-6175COVER-BELT
53 TR112-0353DISCHARGE CHUTE ASM
