Toro 13AP60RP744 (LX500) - LX500 Lawn Tractor, 2006 (1A096B50000-) STEERING SHAFT AND FRONT AXLE ASSEMBLY Ricambi

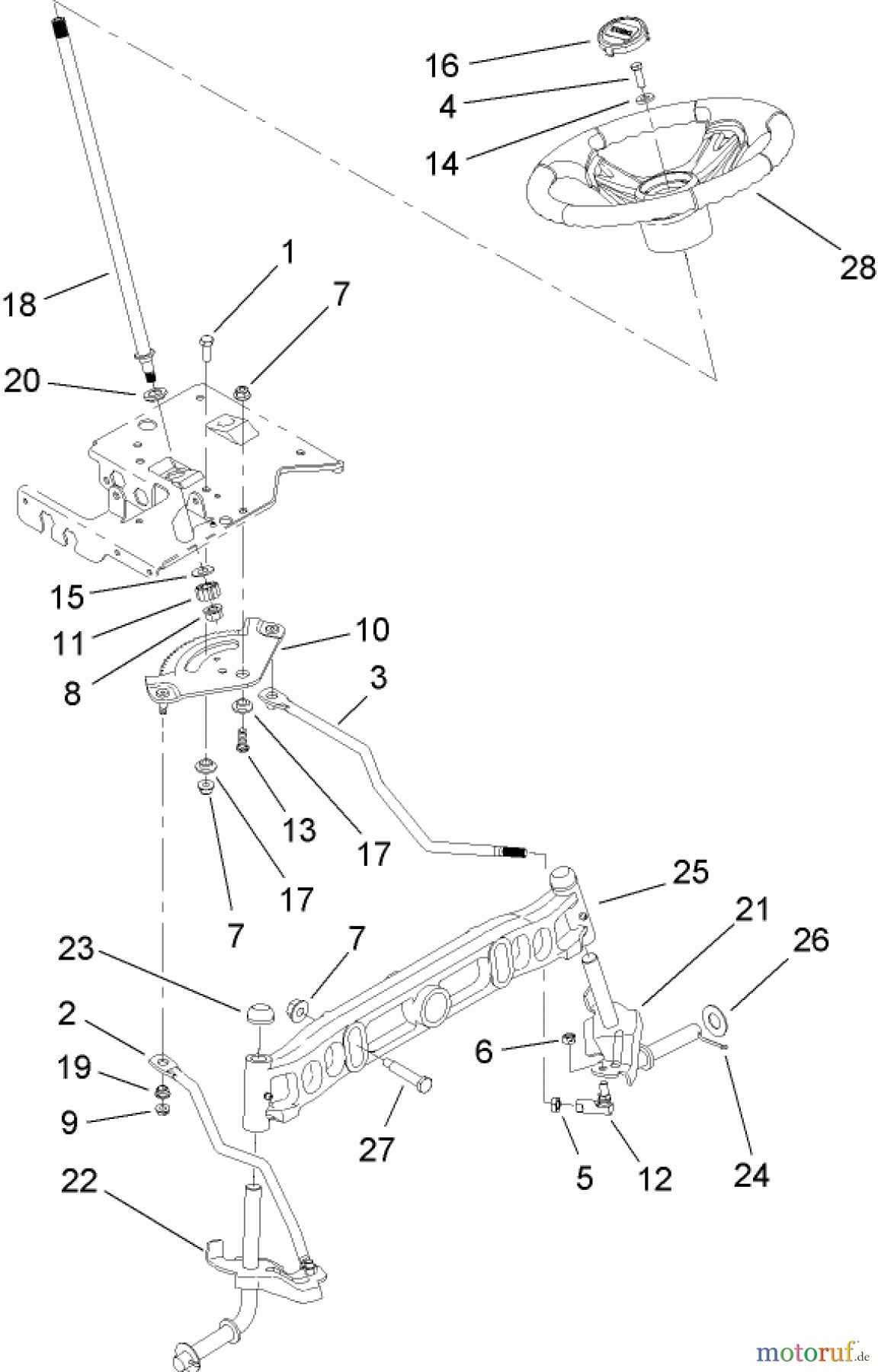

STEERING SHAFT AND FRONT AXLE ASSEMBLY 13AP60RP744 (LX500) - Toro LX500 Lawn Tractor, 2006 (1A096B50000-)

Toro Neu Mowers, Lawn & Garden Tractor Seite 1 13AP60RP744 (LX500) - Toro LX500 Lawn Tractor, 2006 (1A096B50000-) STEERING SHAFT AND FRONT AXLE ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR112-0492SCREW-HH
2 TR112-0355LINK-DRAG, RH
3 TR112-0346LINK-DRAG, LH
4 TR112-0473SCREW-HH
5 TR112-0493NUT-JAM
6 TR112-0483NUT-HEX, LOCK
7 TR112-0668NUT-LOCK, FLANGE
8 TR112-0859NUT-LOCK, FLANGE
9 TR112-0511NUT-LOCK, FLANGE
10 TR119-3976GEAR-STEERING
11 TR112-0863GEAR-PINION, STEERING
12 TR112-0917BALL JOINT ASM
13 TR112-0631SCREW-HH
14 TR112-0924WASHER-FLAT
15 TR112-0925WASHER-FLAT
16 TR112-3734CAP-WHEEL, STEERING
17 TR112-0881SPACER-SHOULDER
18 TR112-5804SHAFT-STEERING
19 TR112-0929BUSHING
20 TR112-0930BEARING-FLANGE, HEX
21 TR112-6016LH AXLE ASM
22 TR112-6015RH AXLE ASM
23 TR112-0323CAP
24 TR112-0519PIN-COTTER
25 TR112-0416DISCONTINUED
26 TR112-5972WASHER-FLAT
27 TR112-0486BOLT-SHOULDER
28 TR112-0438WHEEL-STEERING, SOFTGRIP
