Toro 05-38SY02 - 38" Side Discharge Mower, 1992 (2000001-2999999) DECK ASSEMBLY #3 Ricambi

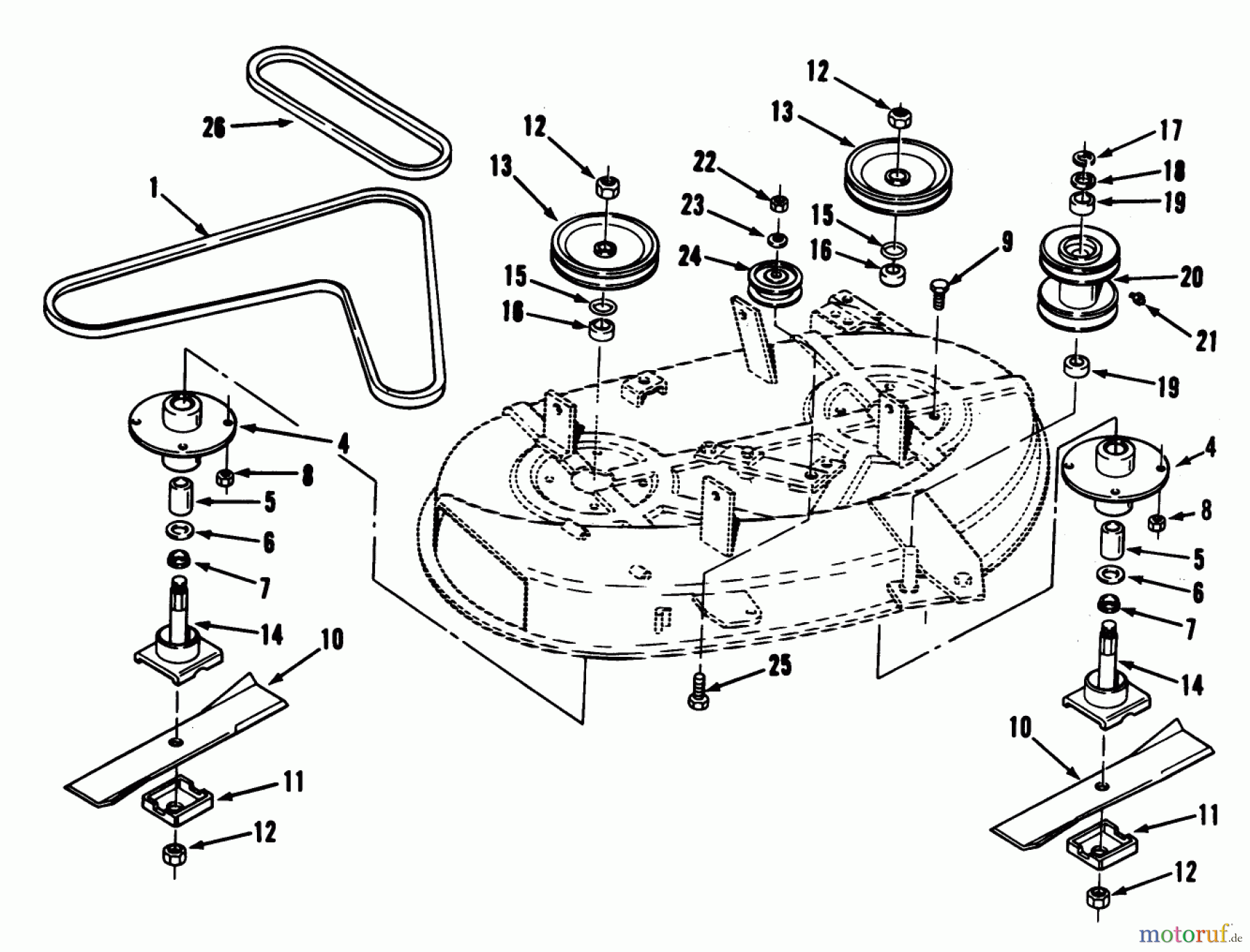

DECK ASSEMBLY #3 05-38SY02 - Toro 38" Side Discharge Mower, 1992 (2000001-2999999)

Toro Neu Mowers, Deck Assembly Only 05-38SY02 - Toro 38
PosizioneArticolo numeroDescrizione
1 TR116667V-BELT
4 TR79-1050-03Spindelgehaeuse
5 TR55-7680DISCONTINUED
6 TR32151-75Seegerring
7 TR47-0110Abdeckscheibe
8 Toro MutterTR3296-29Mutter
9 TR322-3Schraube
10 TR57-4700-03Messer
11 TR92-6313Messerabdeckkappe
12 TR3296-41Stopmutter
13 TR55-7690Riemenscheibe
14 TR47-0091SPINDLE SHAFT WA
15 TR9202164Scheibe
16 TR251-318BEARING-BALL
17 TR105005RETAINING RING
18 TR971015O RING
19 TR109966KUGELLAGER
20 TR116165PULLEY-COUNTER SHAFT
21 Toro SchmiernippelTR302-5Schmiernippel
22 TR32-9639
23 Toro WASHER-FLATTR3256-24WASHER-FLAT
24 TR93-1622PULLEY-IDLER
25 TR323-9Schraube
26 TR116666V-BELT
TR114647DISCONTINUED
