Toro 05-38SY02 - 38" Side Discharge Mower, 1991 (1000001-1999999) DECK ASSEMBLY #1 Ricambi

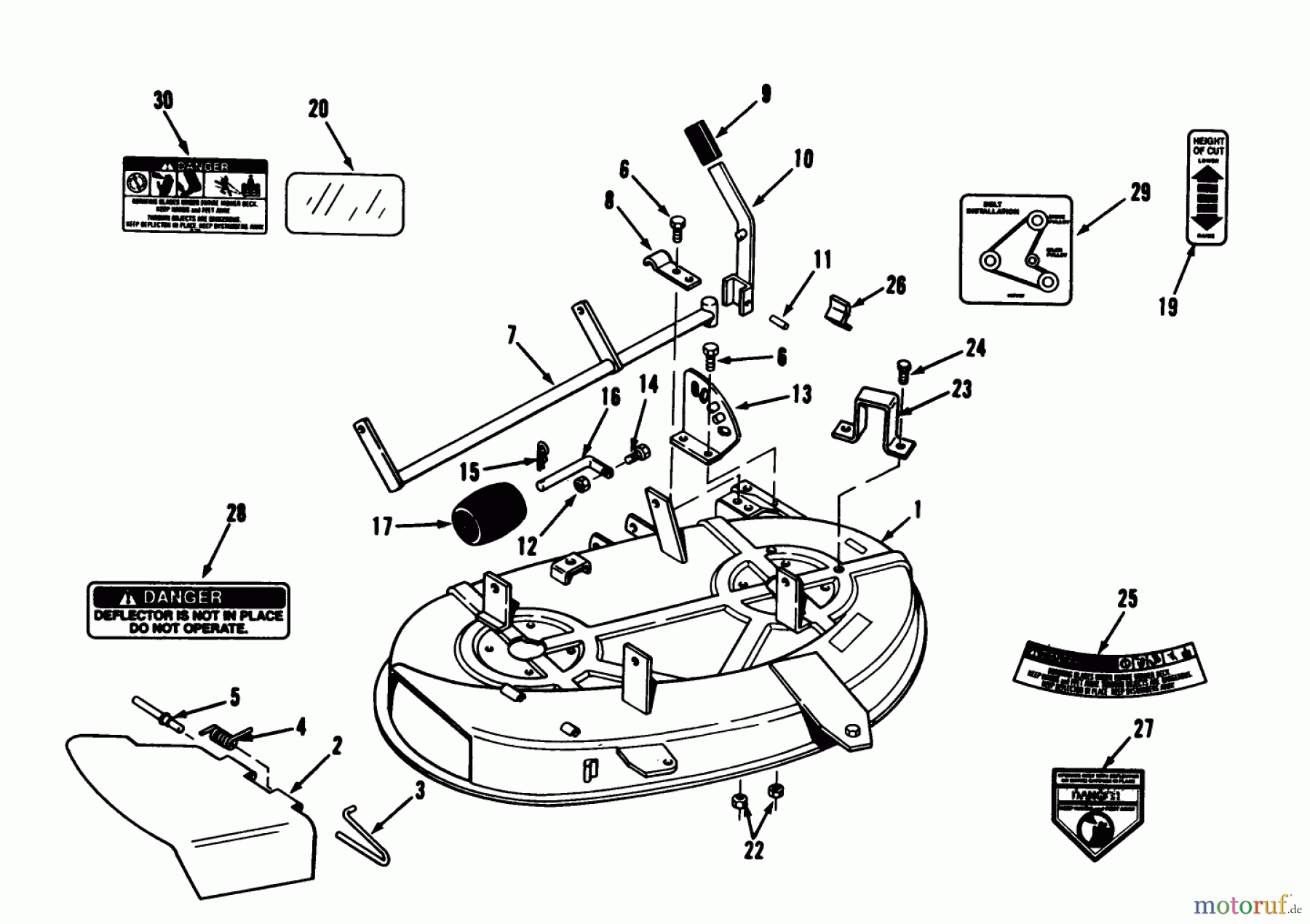

DECK ASSEMBLY #1 05-38SY02 - Toro 38" Side Discharge Mower, 1991 (1000001-1999999)

Toro Neu Mowers, Deck Assembly Only 05-38SY02 - Toro 38
PosizioneArticolo numeroDescrizione
1 TR92-578638-Y DECK WA W/DECALS
2 TR12-1170KLEMME
3 TR119730ROD-HINGE FRONT
4 TR119691Feder
5 TR119720ROD-HINGE REAR
6 TR94-4208HOURMETER
7 TR120700-01WLDMT-LIFT SHAFT
8 TR110846-03BRACKET PIVOT
9 TR103712Griff
10 TR79-1040
11 TR933244SPIROL PIN 3/8X1 1/2
12 Toro MutterTR3296-42Mutter
13 TR120691-01DISCONTINUED
14 Toro SchraubeTR321-4Schraube
15 TR3272-21Splint
16 TR118960-03ROLLENACHSE
17 TR29-4820Rolle
19 TR111655Schild
20 TR112403DECAL-OVERLAY
22 TR32-9639
23 TR78-0290DISCONTINUED
24 TR9264664SCREW-10-24X1/2 S.T.
25 TR76-4070DECAL - DANGER
26 TR11-273011-9560
27 Toro DECAL-DANGERTR93-1122DECAL-DANGER
28 TR66-6380Schild
29 TR117-0033DECAL-ROUTING, BELT
30 TR66-1340DECAL-DANGER, THROWN OBJECT
TR810731OPERATOR'S MANUAL
