Toro 55-7800 - Replacement Engine, (Kawasaki) GOVERNOR ASSEMBLY (KAWASAKI MODEL FB460V TYPE DS08) Ricambi

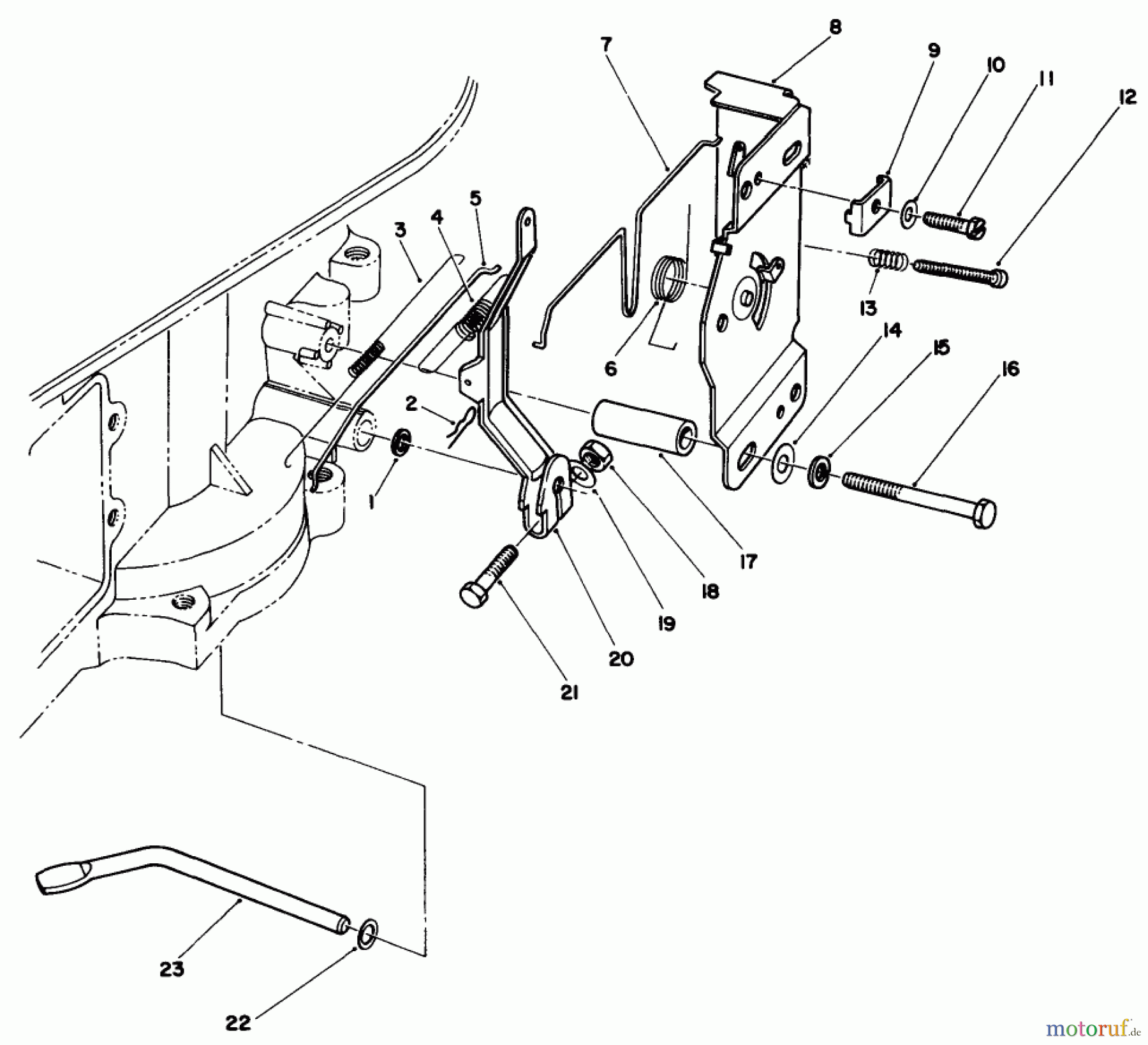

GOVERNOR ASSEMBLY (KAWASAKI MODEL FB460V TYPE DS08) 55-7800 - Toro Replacement Engine, (Kawasaki)

Toro Neu Engines 55-7800 - Toro Replacement Engine, (Kawasaki) GOVERNOR ASSEMBLY (KAWASAKI MODEL FB460V TYPE DS08)
PosizioneArticolo numeroDescrizione
1 KA920492097SEAL-OIL,VC-6X10X2.5
2 KA554DA0600PIN-SNAP
3 KA920812213SPRING
4 KA391292010SPRING-GOVERNOR
5 KA161712083LINK
6 KA920812316SPRING
7 KA161692126LINK-CHOKE
8 KA491132067PANEL-COMP-CONTROL
9 Toro CLAMPKA920372020CLAMP
10 KA410AA0500W-PLAIN-S
11 Toro BOLTKA921502182BOLT
13 KA921442266SPRING
14 KA920222089WASHER
15 KA461DA0600WASHER-SPRING
16 KA112B0650SCHRAUBE
17 KA920272071COLLAR
18 KA311AA0600NUT-HEX
19 KA411AA0600WASHER-PLAIN
20 KA211872052REGLERARM
21 KA920022269SCHRAUBE
22 KA410AA0600W-PLAIN-S
23 KA390032062ARM-PIVOT
