Toro 62925 - 5.5 hp Lawn Vacuum, 2002 (220000001-220999999) HANDLE AND VACUUM BAG ASSEMBLY Ricambi

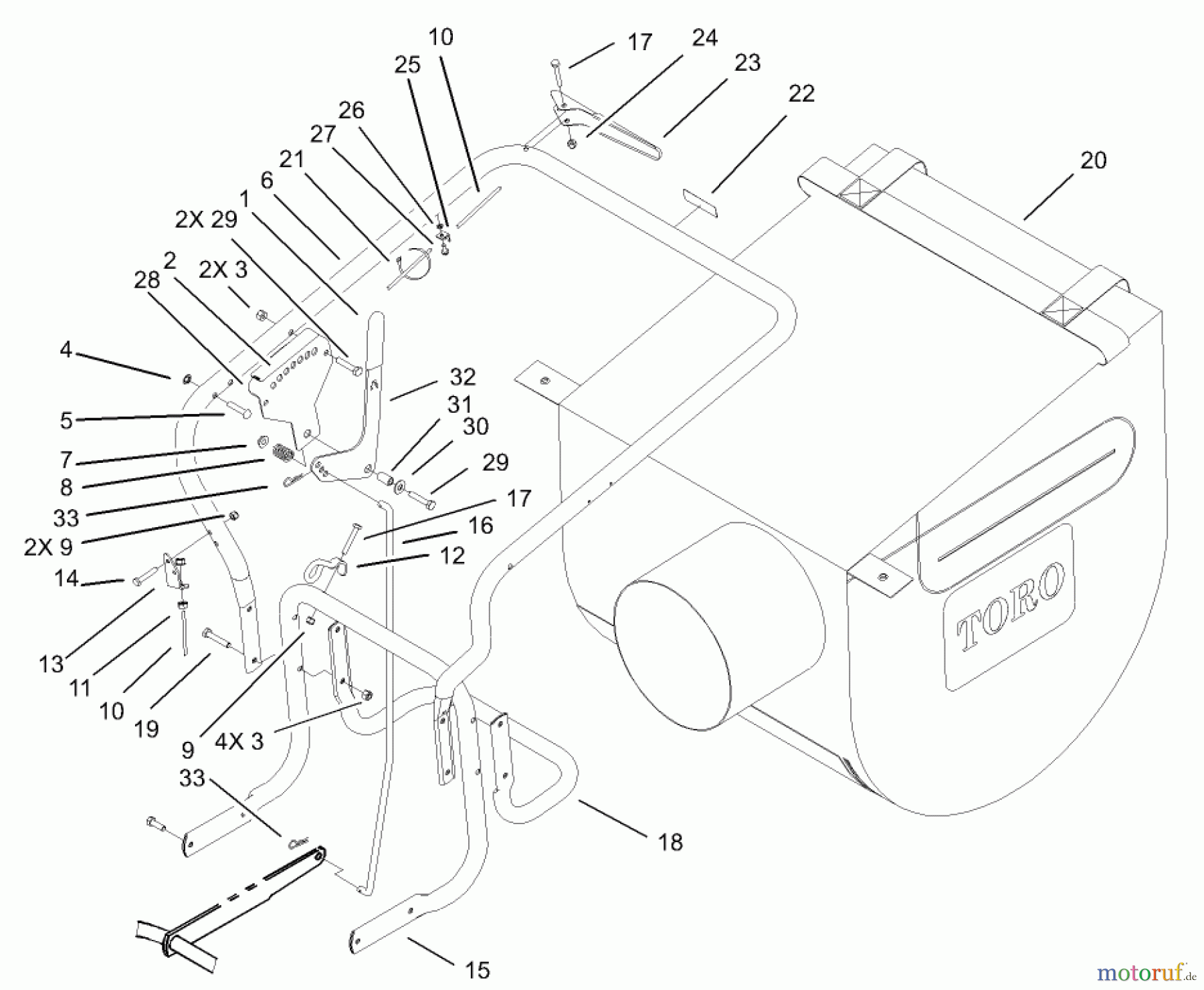

HANDLE AND VACUUM BAG ASSEMBLY 62925 - Toro 5.5 hp Lawn Vacuum, 2002 (220000001-220999999)

Toro Neu Blowers/Vacuums/Chippers/Shredders 62925 - Toro 5.5 hp Lawn Vacuum, 2002 (220000001-220999999) HANDLE AND VACUUM BAG ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR3-7877Handgriff
2 TR93-4137Klebeschild
3 Toro MutterTR3296-29Mutter
4 TR3290-418Federscheibe
5 TR3263-9Niete
6 TR23-3570Schiebestange
7 TR32128-13Flanschmutter
8 TR20-6110FEDER
9 Toro MutterTR3296-42Mutter
10 TR105-1234CABLE-TRACTION
11 TR32149-5Mutter
12 TR46-8082GUIDE-ROPE
13 TR33-2830MOUNT-BOWDEN, LOWER
14 TR321-9SCREW-HH
15 TR105-1236HANDLE-LOWER
16 TR105-1235Gestaenge
17 TR321-10Schraube
18 TR66-1640-03Fangsackhalter
19 TR322-9Schraube
20 TR105-1245LAUBSACK
21 TR3290-378KABELHALTER
22 TR93-4141Klebeschild
23 TR93-8464Hebel
24 TR32111-7Mutter
25 TR20-8780RETAINING-CLIP
26 TR3255-17Federring
27 TR32144-112Schraube
28 TR20-5820-03Schaltkulisse
29 TR322-8SCREW-HH
30 TR3256-3Scheibe
31 TR20-5650Buechse
32 TR23-3410-03Hebel
33 TR3290-250Sicherung
