Toro 62925 - 206cc OHV Vacuum Blower, 2010 (310000001-310999999) BLOWER, FAN AND SNOUT ASSEMBLY Ricambi

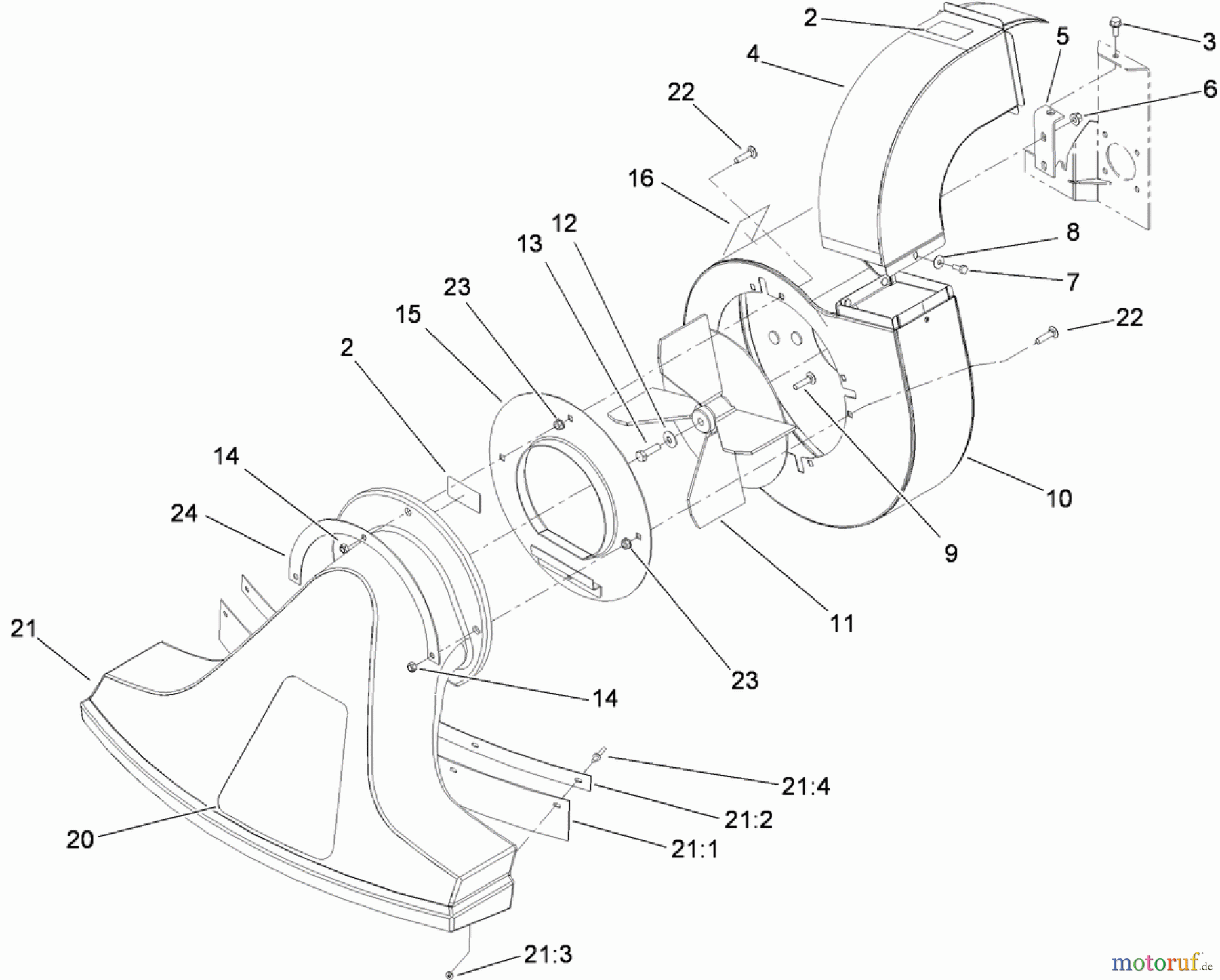

BLOWER, FAN AND SNOUT ASSEMBLY 62925 - Toro 206cc OHV Vacuum Blower, 2010 (310000001-310999999)

Toro Neu Blowers/Vacuums/Chippers/Shredders 62925 - Toro 206cc OHV Vacuum Blower, 2010 (310000001-310999999) BLOWER, FAN AND SNOUT ASSEMBLY
PosizioneArticolo numeroDescrizione
2 TR93-4139DECAL-CAUTION, BAG
3 TR32144-70Schraube
4 TR110-8605-01VACUUM CHUTE ASM
5 TR105-1233-03Halterung
6 TR104-8300Mutter
7 TR321-2Schraube
8 TR3290-436WASHER-BELLEVILLE
9 TR3230-19SCREW-CARR
10 TR110-8606-01BLOWER/VAC HOUSING ASM
11 TR93-3677-03Luefterrad konisch
12 TR3290-340WASHER-BELLEVILLE
13 TR3211-5Schraube
14 TR3296-47Mutter
15 TR20-5450-01Zwischenring
16 TR105-4062KLEBESCHILD
20 TR107-8919DECAL
21 TR40-7000Saugduese
21:1 TR20-6830Gummileiste
21:2 TR20-6840-03CLAMP-FLAP
21:3 TR3256-51Scheibe
21:4 TR3269-22Hohlniete
22 TR3230-3Schraube
23 Toro MutterTR32128-20Mutter
24 TR105-8543-03Flansch
