Toro 53047 (BP 6900) - BP 6900 Back Pack Blower, 2000 (200000001-200999999) CARBURETOR ASSEMBLY Ricambi

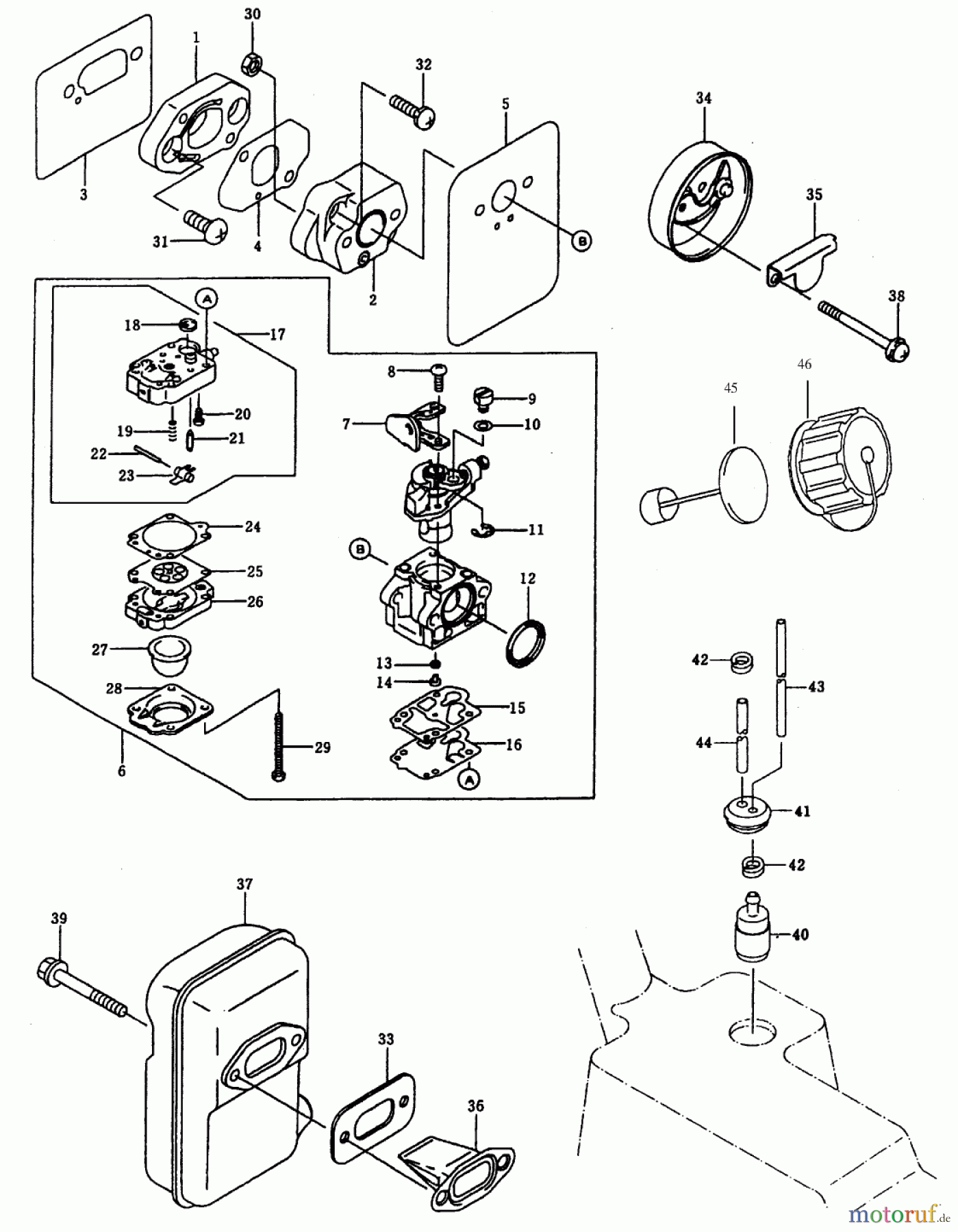

CARBURETOR ASSEMBLY 53047 (BP 6900) - Toro BP 6900 Back Pack Blower, 2000 (200000001-200999999)
| Posizione | Articolo numero | Descrizione | |
| 1 | TR99-2794 | ADAPTER | |
| 2 | TR99-2792 | INSULATOR | |
| 3 | TR99-2788 | DISCONTINUED | |
| 4 | TR99-2789 | DISCONTINUED | |
| 5 | TR99-2790 | GASKET "C' | |
| 6 | TR99-2791 | CARBURETOR-ASSY | |
| 7 | TR | ||
| 9 | TR | ||
| 10 | TR | ||
| 11 | TR | ||
| 12 | TR | ||
| 14 | TR | ||
| 15 | TR | ||
| 16 | TR | ||
| 17 | TR99-2793 | BODY ASSY | |
| 18 | TR | ||
| 21 | TR | ||
| 23 | TR | ||
| 24 | TR | ||
| 25 | TR | ||
| 27 | TR99-2795 | PUMP-PRIMING | |
| 28 | TR | ||
| 30 | TR99-2796 | DISCONTINUED | |
| 31 | TR99-2797 | DISCONTINUED | |
| 32 | TR99-2798 | DISCONTINUED | |
| 33 | TR99-2800 | DISCONTINUED | |
| 34 | TR99-2801 | CASE,ASSY-AIR FILTER | |
| 35 | TR99-2802 | DISCONTINUED | |
| 36 | TR99-2803 | ARRESTER-SPARK | |
| 37 | TR99-2804 | MUFFLER-COMP | |
| 38 | TR99-2805 | DISCONTINUED | |
| 39 | TR99-2806 | DISCONTINUED | |
| 40 | TR99-2808 | FILTER-FUEL | |
| 41 | TR99-2810 | GROMMET,FUEL TANK | |
| 42 | TR99-2811 | DISCONTINUED | |
| 43 | TR99-2812 | DISCONTINUED | |
| 44 | TR99-2813 | DISCONTINUED | |
| 45 | TR99-2807 | BREATHER | |
| 46 | TR99-2809 | CAP-ASSY-TANK | |
