Toro 67-36TL01 - 36" Tiller, 1976 PARTS LIST FOR 36" TILLER FACTORY ORDER NUMBER 67-36TL01 Ricambi

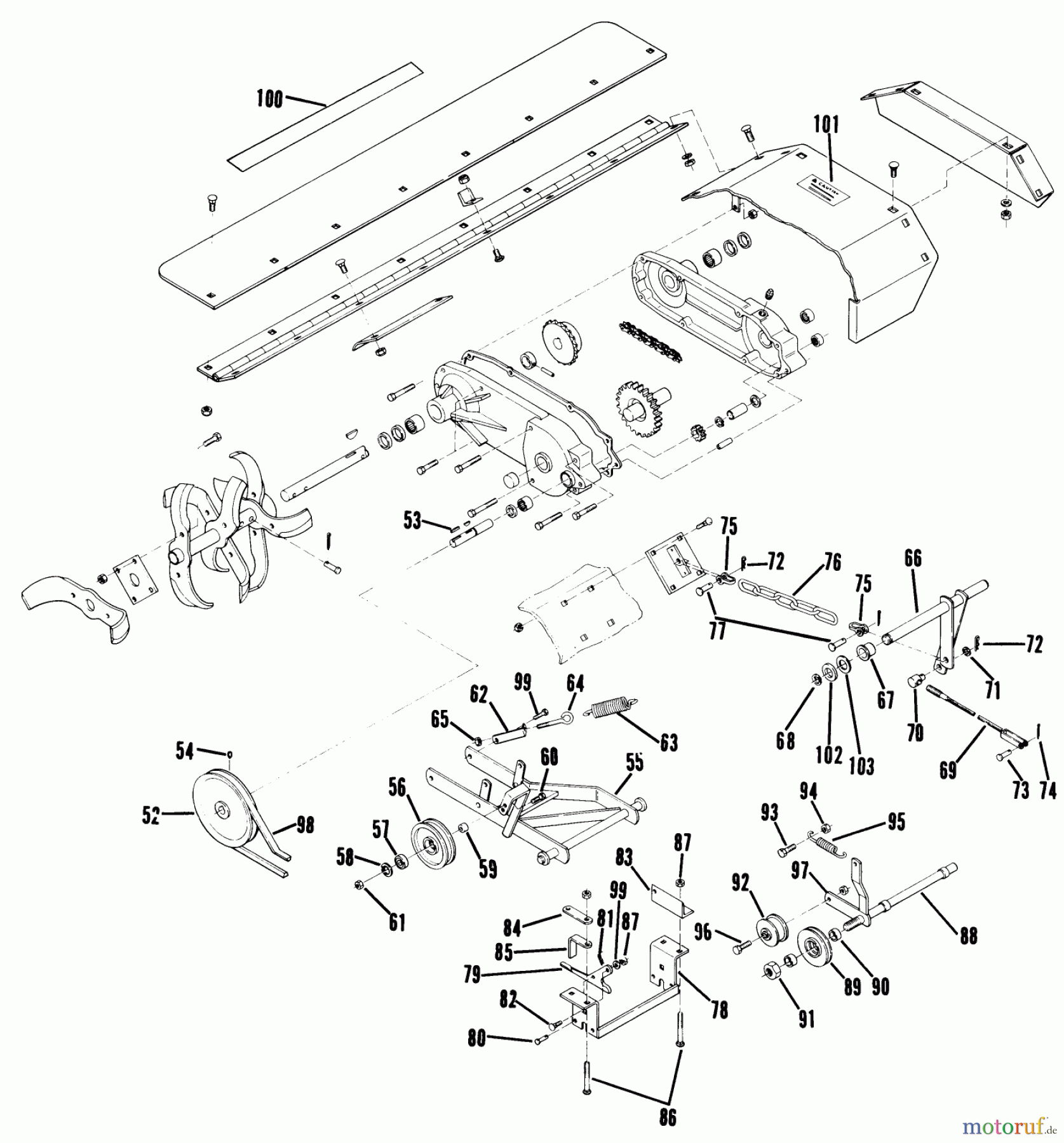

PARTS LIST FOR 36" TILLER FACTORY ORDER NUMBER 67-36TL01 67-36TL01 - Toro 36" Tiller, 1976

Toro Neu Accessories, Tiller/Cultivator 67-36TL01 - Toro 36
PosizioneArticolo numeroDescrizione
51 TR920008Scheibe
52 TR93-0345Riemenscheibe
53 TR1005KEY-STRAIGHT
54 TR7977DISCONTINUED
55 TR93-1607-01HITCH ASM
56 TR6740DISCONTINUED
57 TR4567Kugellager
58 TR93-6024Buechse
59 TR2138DISCONTINUED
60 TR911404Schraube
61 Toro NUT-LOCK, SIDETR32153-2NUT-LOCK, SIDE
62 TR93-1606-03BRACKET-SPRING
63 TR4629Feder
64 TR100653Augenschraube
65 TR32-9639
66 TR105539DISCONTINUED
67 TR6254Buechse (5)
68 TR5618Seegerring
69 TR105542ASSY-LIFT CABLE
70 TR104524TRUNNION-CLUTCH ROD
71 Toro WASHER-FLATTR3256-24WASHER-FLAT
72 TR933504HAARNADELSICHERUNG (10)
73 TR9321204PIN-CLEVIS
74 TR3272-1Splint
75 TR79-2280Kausche
76 TR105550DISCONTINUED
77 TR9329584CLVS-PIN 5/16X1 1/4
78 TR104659-01Hebelbock
79 TR104657Verriegelungsplatte
80 TR932120SPLINTBOLZEN
81 TR933504HAARNADELSICHERUNG (10)
82 Toro SchraubeTR3231-2Schraube
83 TR108485-01LINK-BRACKET
84 TR3697Gestaenge
85 TR7713Winkel
86 TR3231-11SCREW-CARR
87 TR91511332153-2
88 TR108609DISCONTINUED
89 TR92-7103PULLEY-IDLER
90 TR7038SPACER
91 TR3296-15Mutter
92 TRMW8821IDLER PULLEY
93 TR323-8SCREW-HH
94 TR91511332153-2
95 TR6135SPRING-BRAKE
96 TR960179BOLT
97 TR3217-6NUT-HEX
98 TR1599Keilriemen
99 TR9200093256-24
100 TR103174DECAL-WHEEL HORSE
101 TR92-7112KLEBESCHILD
102 TR1278Scheibe (10)
103 TR5210Scheibe (10)
