Toro 106-8252 - 36"/42" Rear Discharge Mower Conversion Kit, XT Series Garden Tractors PULLEY BOX ASSEMBLY Ricambi

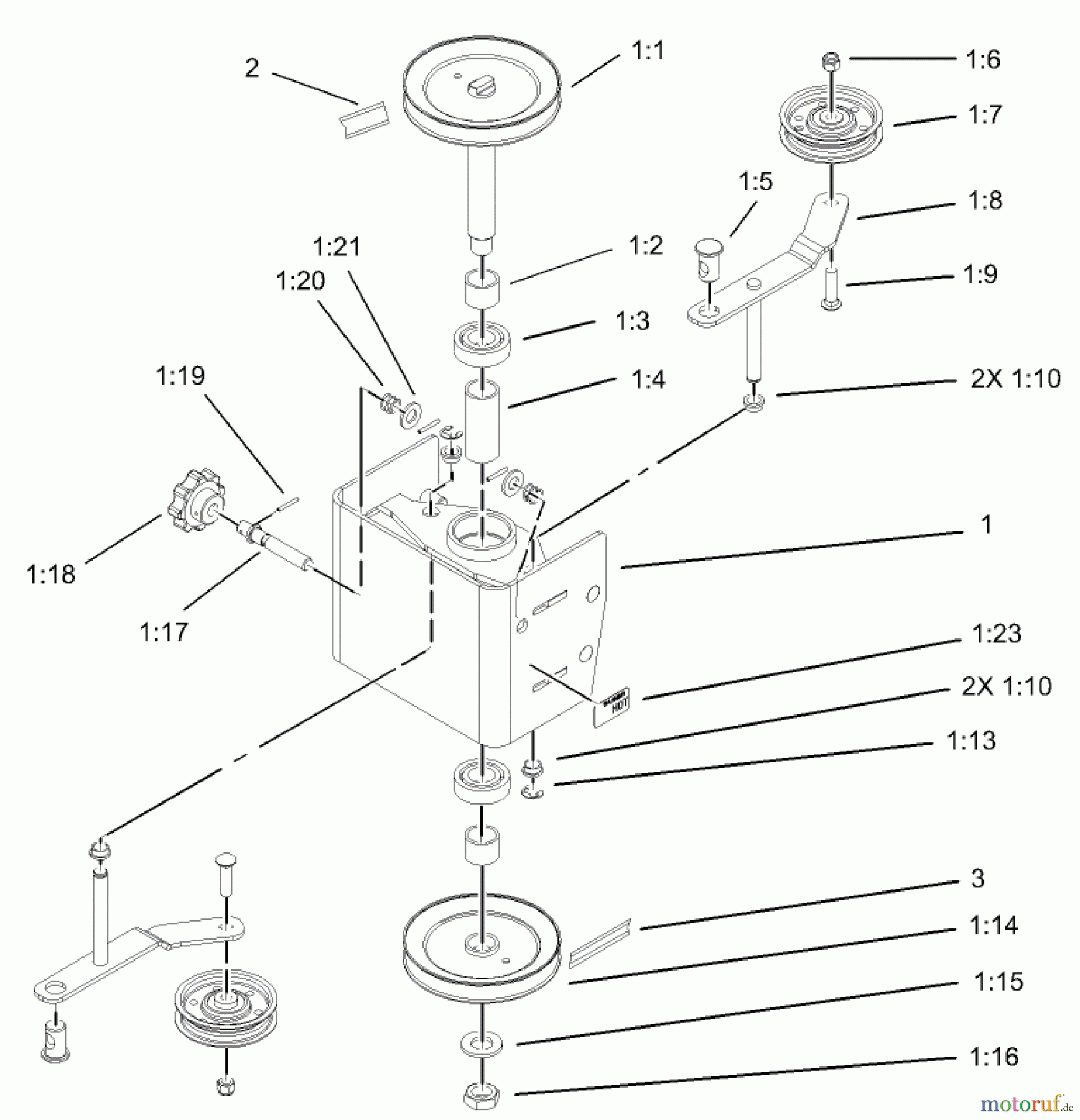

PULLEY BOX ASSEMBLY 106-8252 - Toro 36"/42" Rear Discharge Mower Conversion Kit, XT Series Garden Tractors

Toro Neu Accessories, Mower 106-8252 - Toro 36
PosizioneArticolo numeroDescrizione
1 TR106-5562PULLEY BOX ASM
1:1 TR106-5625UPPER PULLEY ASM
1:2 TR106-5634SPACER-PULLEY
1:3 TR251-82BEARING-BALL
1:4 TR106-5633SPACER-BEARING
1:5 TR105-1397FERRULE-ADJUSTER
1:6 TR32-9639
1:7 TR92-7101Riemenscheibe
1:8 TR106-5636IDLER ARM ASM
1:9 TR3231-4Schraube
1:10 TR256-156BUECHSE
1:13 TR32120-47RING-RETAINING, EXTERNAL
1:14 TR106-5627LOWER PULLEY ASM
1:15 TR3256-28Scheibe
1:16 Toro NUT-JAMTR3220-7NUT-JAM
1:17 TR106-4024ROD-TENSION
1:18 TR105-1492KNOB-ADJUSTING
1:19 TR933156Spannstift (10)
1:20 TR106-9892SPRING-COMPRESSION
1:21 TR106-9888WASHER-FLAT
1:23 TR65-2690DECAL-SURFACE, HOT
2 TR106-5631BELT-PTO
3 TR106-9897BELT-DRIVE (42 RD CONVERSION)
4 TR106-9910BELT-DRIVE (36 RD CONV.)
