Mäher, Stand-on DECK LIFT ASSEMBLY Ricambi

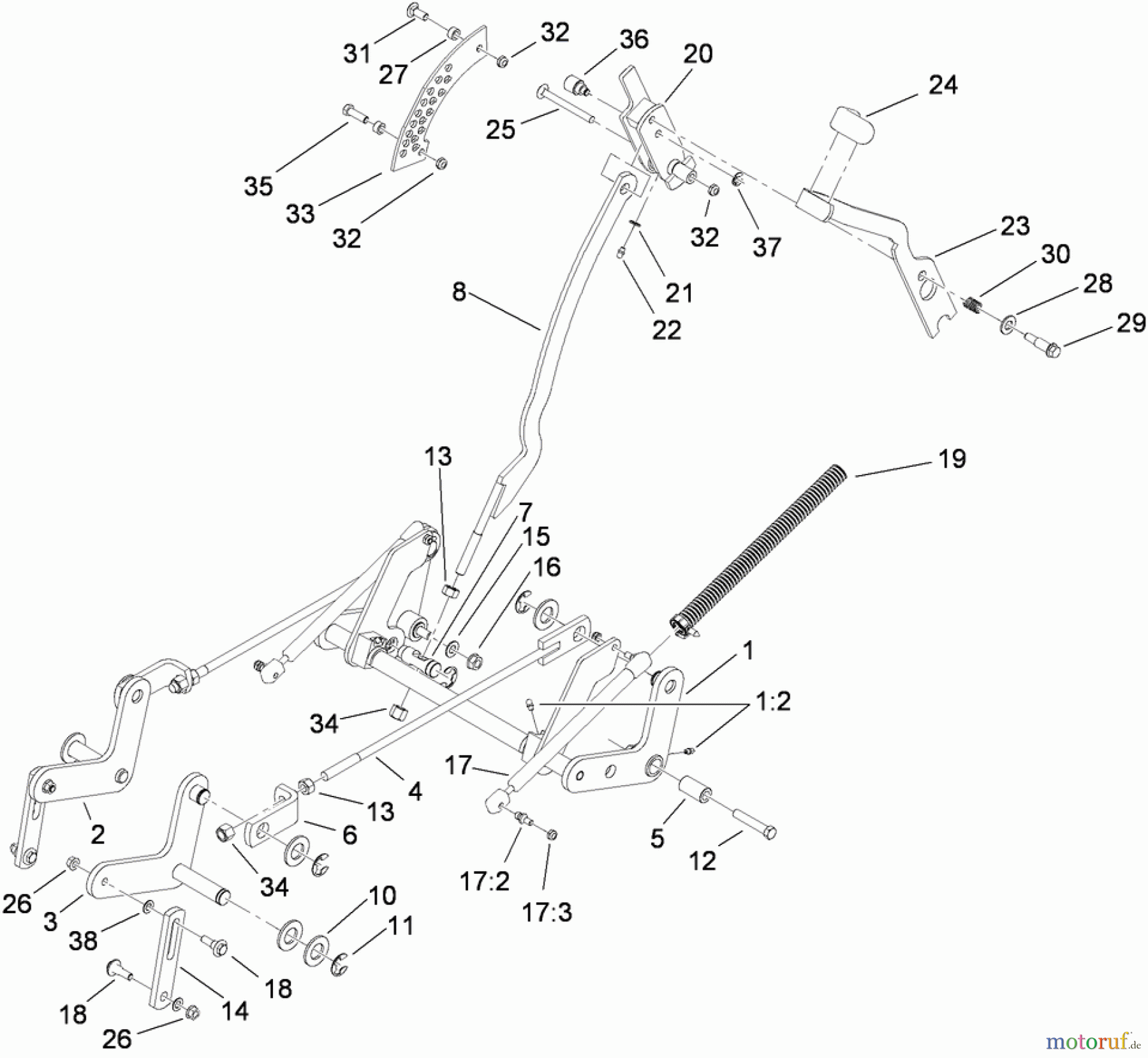

DECK LIFT ASSEMBLY 74559 - Toro GrandStand Mower, 52" TURBO FORCE Cutting Unit (SN: 290000157 - 290003000) (2009)

Mäher, Stand-on 74559 - Toro GrandStand Mower, 52
PosizioneArticolo numeroDescrizione
1 TR117-0505LIFT ASM
1:2 Mäher, Stand-on SchmiernippelTR302-5Schmiernippel
2 TR121-5994-01RH LIFT ARM ASM
3 TR121-5993-01LH LIFT ARM ASM
4 TR114-5268LIFT ROD ASM
5 TR117-0498SPACER
6 TR117-0513BRACKET-ROD, LIFT
7 TR114-5274PIN-HOC
8 TR117-3611BAR-LIFT
10 TR3256-29WASHER-FLAT
11 TR32151-103Seegerring
12 TR324-10Schraube
13 TR3217-9Mutter
14 TR117-0519LINK-LIFT
15 TR3256-25Scheibe
16 TR3296-48Stopmutter
17 TR117-9781SPRING-GAS
17:2 TR88-6770Kugelbolzen
17:3 TR3296-47Mutter
18 TR109-9840SCREW-SHOULDER, HHF
19 TR117-3575COVER-SPRING
20 TR114-3512HOC HANDLE ASM
21 TR3256-22Scheibe
22 Mäher, Stand-on SchmiernippelTR302-5Schmiernippel
23 TR114-1878-03LEVER-HOC
24 TR1-633268GRIP-LEVER
25 TR3231-24SCREW-CARR
26 TR32128-21Mutter
27 TR111044SPACER
28 TR3256-26WASHER-FLAT
29 TR66-0561SCHRAUBE
30 TR65-9940SPRING
31 TR3231-22Schraube
32 TR121-4600
33 TR114-5307BRACKET-HOC
34 TR3296-23Mutter
35 TR323-7Schraube
36 TR117-3645HUB-PIVOT
37 TR32151-47RING-RETAINING
38 Mäher, Stand-on ScheibeTR40-1940Scheibe
