Rasenmäher Antrieb FUEL TANK AND IDLER BRACKET ASSEMBLY Ricambi

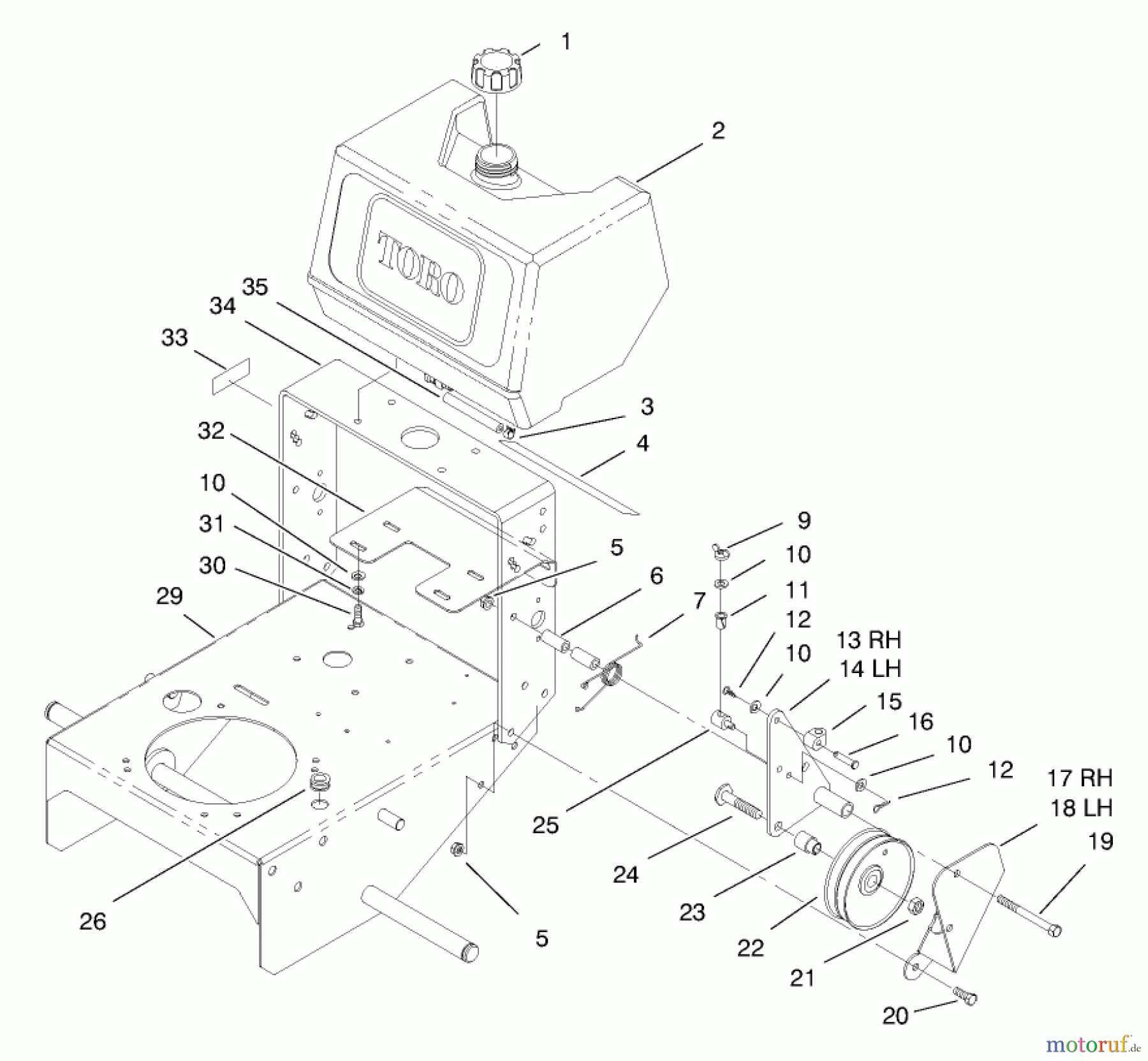

FUEL TANK AND IDLER BRACKET ASSEMBLY 30159 - Toro Mid-Size ProLine Traction Unit, Gear Drive, 12.5 hp (SN: 790001 - 795100) (1997)

Rasenmäher Antrieb 30159 - Toro Mid-Size ProLine Traction Unit, Gear Drive, 12.5 hp (SN: 790001 - 795100) (1997) FUEL TANK AND IDLER BRACKET ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR55-3570GAS CAP ASM
2 TR95-2802Benzintank
3 TR2412-98CLAMP-HOSE
4 TR82-7750DECAL-GROUND SPEED
5 TR32-9639
6 TR74-0040Distanzbuechse
7 TR51-4370Feder
8 TR51-4380Feder
9 TR32103-25NUT-WING
10 TR3256-23Scheibe
11 TR52-2890Kunststoffbuchse
12 TR1-806003HAARNADELSICHERUNG
13 TR74-0230-01Halter F. Spannrolle
14 TR74-0220-01BRACKET-IDLER, LH
15 TR74-0521Gestaengefuehrung
16 TR283-6Bolzen
17 TR67-6370-01BRACKET-SUPPORT, RH
18 TR67-6380-01Seitenplatte Li.
19 TR3231-6SCHRAUBE
20 TR323-6Schraube
21 TR3296-23Mutter
22 TR95-2800Riemenscheibe
23 TR95-2801Distanzstueck
24 TR51-4450Bolzen
25 TR68-9690FITTING-ROD
26 TR237-124Gummituelle
29 TR93-1161-01FRAME ASM
30 TR322-4Schraube
31 TR3253-4Federring
32 TR66-7400-01PLATE-CONTROL
33 TR95-2814DECAL-SHUT OFF, FUEL
34 TR74-0360-01Heckrahmen
35 TR110-4895HOSE-FUEL
