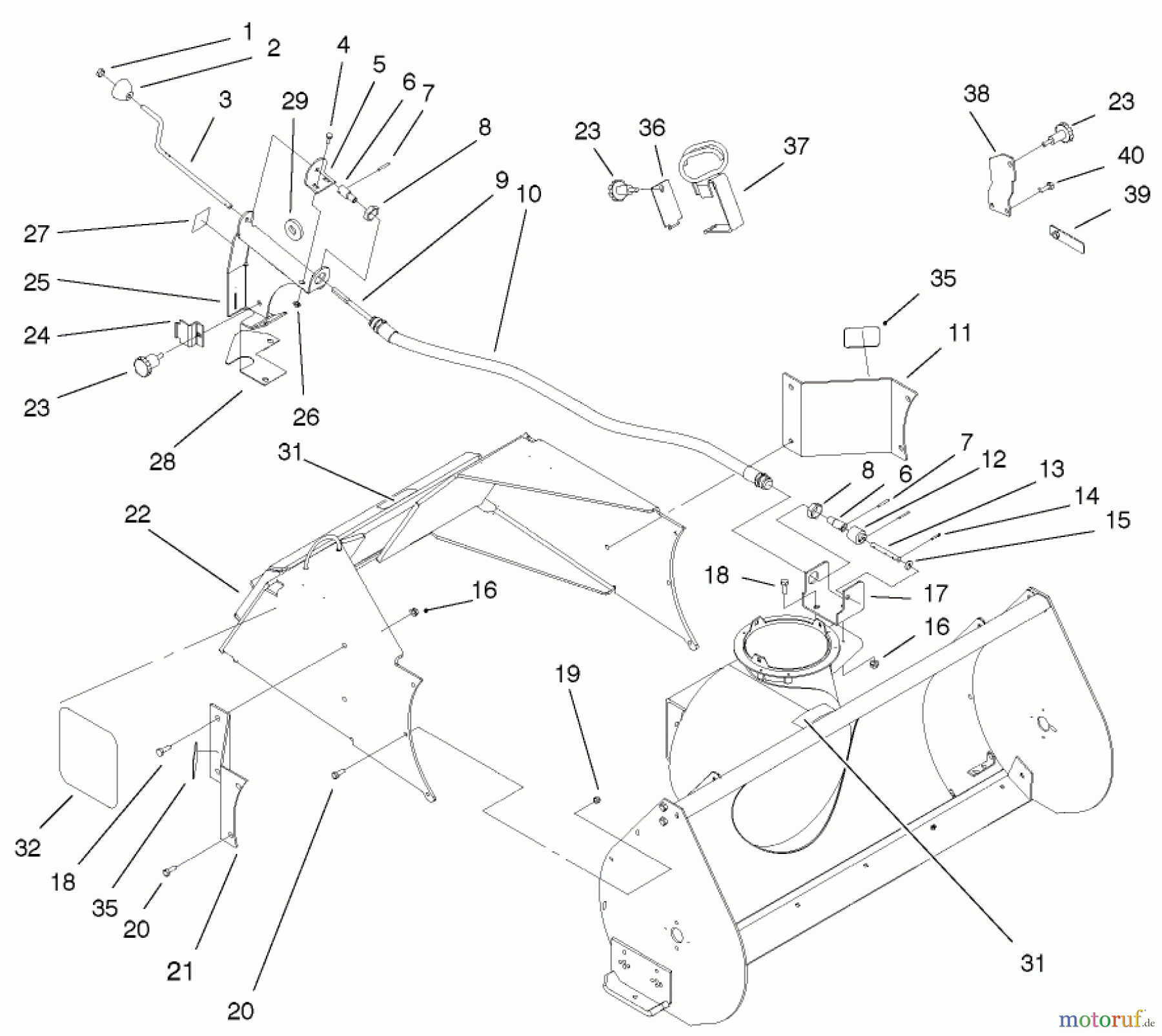

CRANK AND MOUNTING ASSEMBLY 22456 - Toro Snowthrower, Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001)

Compact Utility Attachments 22456 - Toro Snowthrower, Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) CRANK AND MOUNTING ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR3290-320Sicherungskappe
2 TR61-4890KNOB-CHUTE
3 TR99-5906ROD-CONTROL, CHUTE
4 TR3229-1Schraube
5 TR99-5904-01BRACKET-ROD, SUPPORT
6 TR61-4940COUPLER
7 TR32121-50PIN-SPRING
8 TR353-955LOCKNUT
9 TR99-4978SHAFT-FLEXIBLE
10 TR99-4979HOSE ASM
11 TR100-4603-01PLATE-EXTENSION, LH
12 TR8-8600GEAR-WORM, CHUTE
13 TR61-4950SHAFT-GEAR, WORM
14 TR3272-10PIN-COTTER
15 Compact Utility Attachments WASHER-FLATTR3256-24WASHER-FLAT
16 TR32-9639
17 TR99-5319-01BRACKET-GEAR, WORM
18 TR323-6Schraube
19 Compact Utility Attachments MutterTR3296-29Mutter
20 TR322-5Schraube
21 TR100-4604-01PLATE-EXTENSION, RH
22 TR99-4424-01SNOWTHROWER MOUNT ASM
23 TR99-6137KNOB-CONTROL, CHUTE
24 TR99-5907-01BRACKET-CLAMP
25 TR99-5909-01BRACKET-CONTROL, CHUTE
26 Compact Utility Attachments MutterTR3296-42Mutter
27 TR63-3510DECAL-CHUTE DIRECTION
28 TR99-6139FOAM-CHUTE, CONTROL
29 TR83-1040Scheibe
31 TR98-4683DECAL-ATTACHMENT
32 TR100-4762DECAL-DINGO
35 TR100-4627REFLECTOR
36 TR112-2615-03BRACKET-RETAINER
37 TR112-2617-03HOSE RETAINER ASM
38 TR100-4620-01BRACKET,CLAMP
39 TR100-4621-01PLATE ASM-RETAINER
40 TR32144-70Schraube
