Compact Utility Attachments SEAT AND MOUNTING ASSEMBLY Ricambi

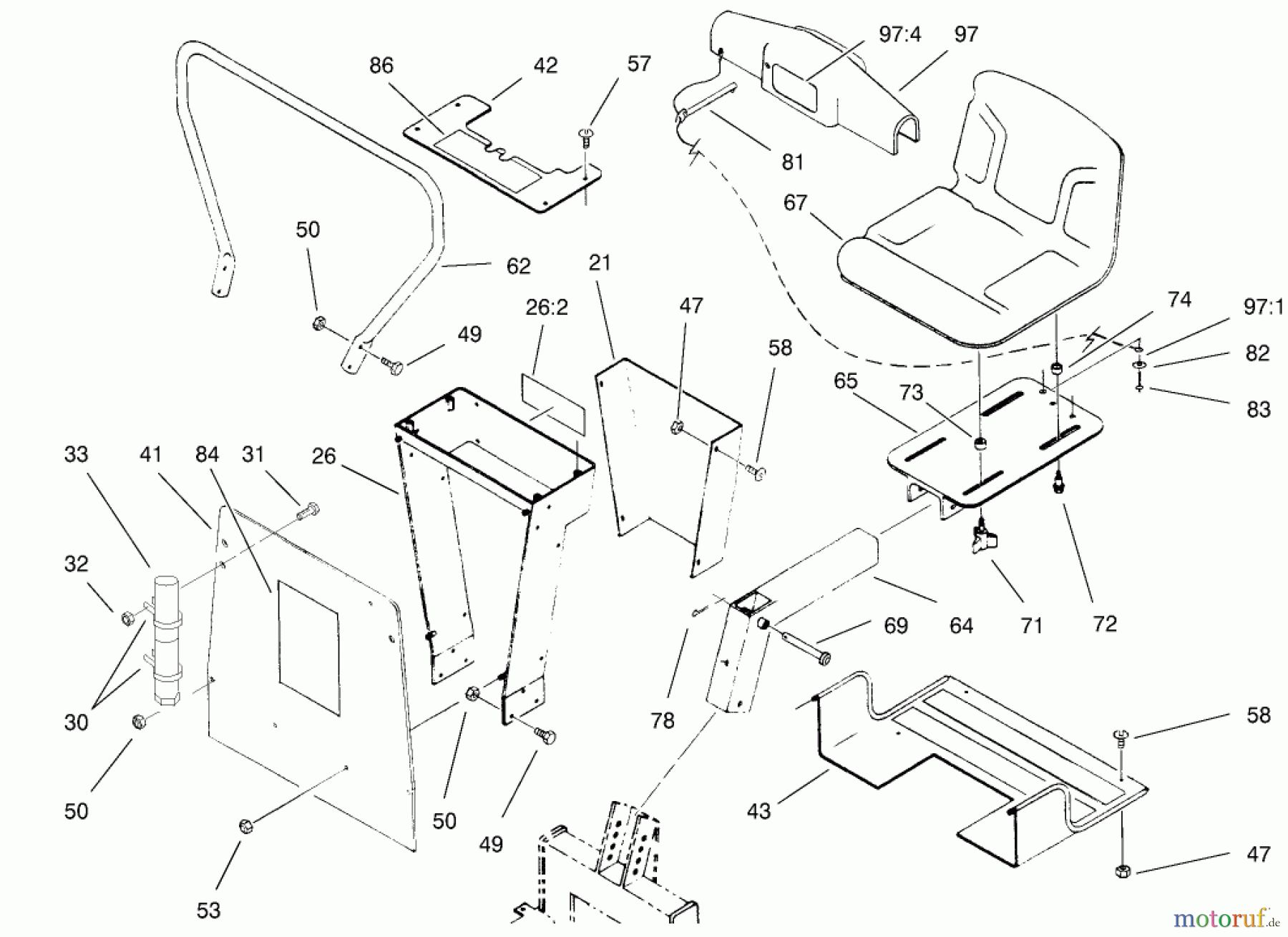

SEAT AND MOUNTING ASSEMBLY 22412 - Toro Backhoe, Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000)

Compact Utility Attachments 22412 - Toro Backhoe, Dingo Compact Utility Loader (SN: 200000001 - 200999999) (2000) SEAT AND MOUNTING ASSEMBLY
PosizioneArticolo numeroDescrizione
21 TR100-7166GUARD-HOSE
26 TR100-7207VALVE MOUNT ASM
26:2 TR100-4133DECAL-WARNING
30 TR2412-120Rohrschelle
31 TR32104-19SCREW
32 TR3296-2Mutter
33 TR74-0720Behaelter F.Bed.-Anl.
41 TR100-7165PANEL-FRONT
42 TR100-7169COVER-VALVE
43 TR100-7162FOOT PLATE ASM
47 Compact Utility Attachments MutterTR3296-42Mutter
49 TR322-3Schraube
50 Compact Utility Attachments MutterTR3296-29Mutter
53 TR32-9639
57 TR3258-2SCREW
58 TR3290-133Schraube
62 TR100-7167HANDLE-GUARD
64 TR100-7157SEAT MOUNT ASM
65 TR100-7158SEAT PLATE ASM
67 TR88-4330SEAT
69 TR100-7208PIN-CLEVIS
71 TR700806Fluegelschraube
72 TR92-6986Bolzen
73 TR92-6750Buechse
74 TR109989Buechse
78 TR3272-31Bolzen
81 TR100-7180PIN-COTTERLESS
82 TR9202704Scheibe
83 TR3269-4Niete
84 TR100-4762DECAL-DINGO
86 TR100-4138DECAL-PANEL, CONTROL
97 TR100-7181CLIP ASM-BACKHOE
97:1 TR100-7179LANYARD
97:4 TR100-4137DISCONTINUED
97:2 TR100-7180PIN-COTTERLESS
97:5 TR920270SCHEIBE
97:6 TR3269-4Niete
