Compact Utility Attachments PARKING BRAKE ASSEMBLY Ricambi

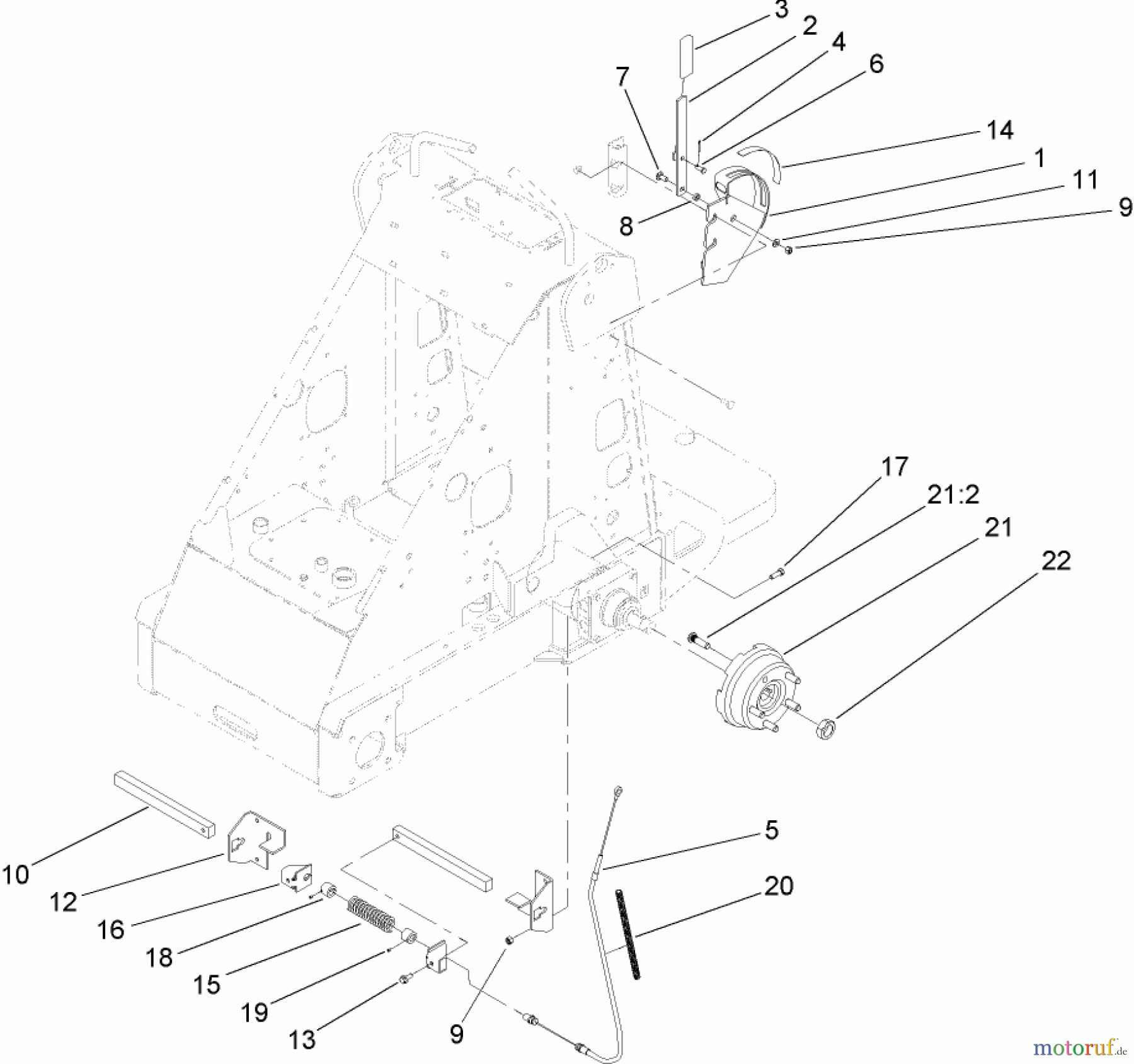

PARKING BRAKE ASSEMBLY 22366 - Toro CE Kit, Dingo 323 Compact Utility Loader

Compact Utility Attachments 22366 - Toro CE Kit, Dingo 323 Compact Utility Loader PARKING BRAKE ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR105-8414-03PLATE ASM
2 TR100-1684-03LEVER ASM
3 TR62-9130Handgriff
4 TR3272-6Splint
5 TR100-1679Bremsseil
6 TR283-62Bolzen
7 TR3230-23Schloss Schraube
8 TR100-1683HUB-LEVER
9 Compact Utility Attachments MutterTR3296-29Mutter
10 TR100-1674-03BAR-BRAKE
11 TR3256-23Scheibe
12 TR100-1676-03BRACKET-BRAKE
13 TR100-1668SCREW-FLANGE
14 TR100-1692DECAL-BRAKE
15 TR100-1678-03SPRING
16 TR100-1677-03BRACKET-CABLE
17 TR322-5Schraube
18 TR100-6274TUBE-GUIDE
19 TR3245-20SCREW-HSH
20 TR100-4697TUBE-CONVOLUTED
21 TR105-4056Radnabe
21:2 TR10-6830Bolzen
22 TR99-3171Splint
