Seat Group GC9520KW (84449) - Snapper 2x2 Grounds Cruiser Utility Vehicle, 9.5 HP, Series 0

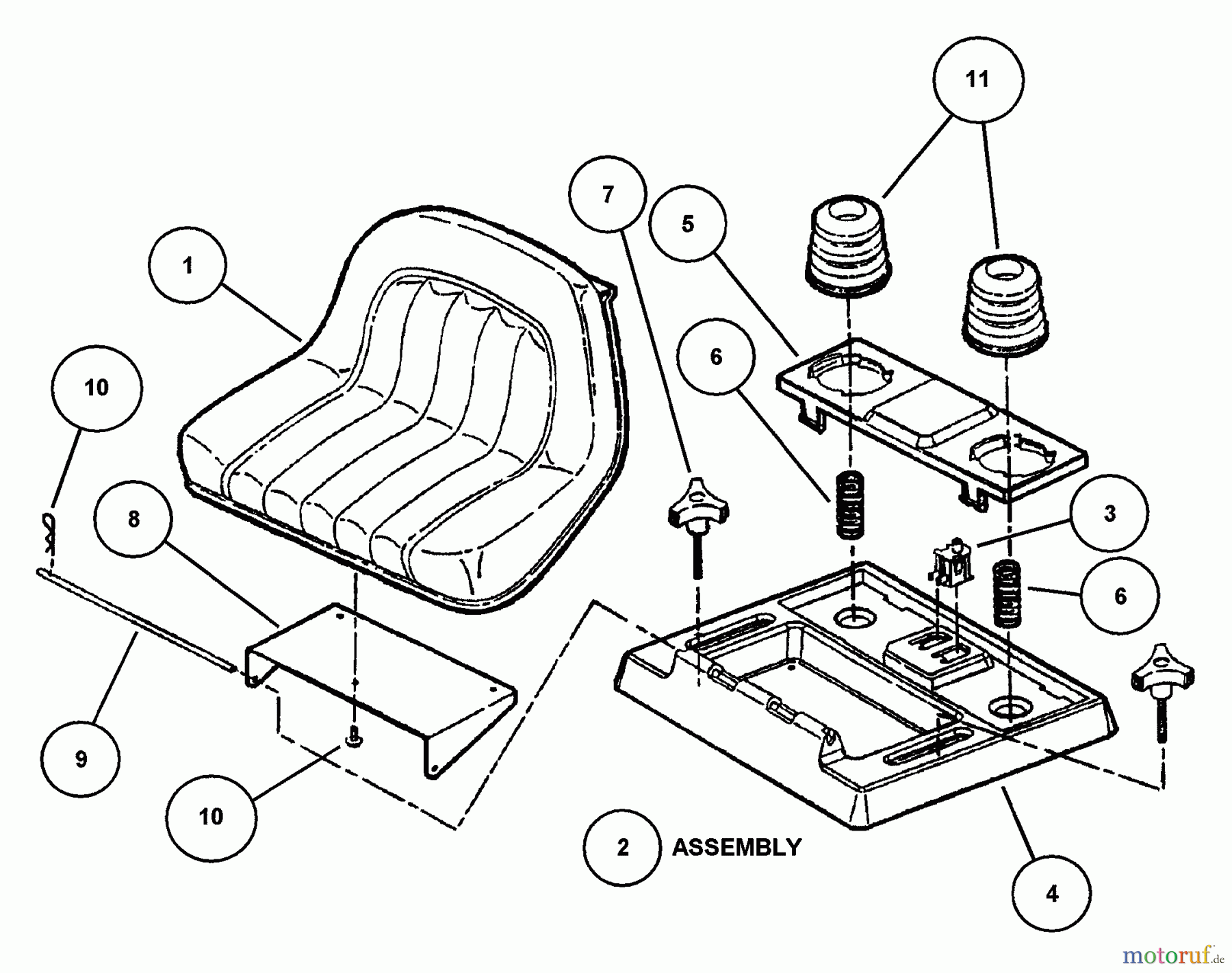

Snapper Utility Vehicles GC9520KW (84449) - Snapper 2x2 Grounds Cruiser Utility Vehicle, 9.5 HP, Series 0 Seat Group
PosizioneArticolo numeroDescrizione
1 BS7035271YPSEAT, MILSCO
2 BS7059215YPSEAT SUPPORT ASSY, MA
3 BS7023354YPSWITCH, SEAT
4 BS7074204YPSUPPORT, SEAT, E.
5 BS7028580YPHOLDER, SEAT CUSHION
6 BS7073266YPSPRING, CUSHION
7 BS7017875YPKNOB, 5/16-18MX2
8 BS7033318YPSUPPORT, SEAT, UP
9 BS7074452YPROD, SEAT HINGE
10 BS703300PIN, 3/32 X 1.6
11 Snapper COVER, SPRING, RUBBERBS7019109YPCOVER, SPRING, RUBBER
12 BS7091525YPBOLT, 5/16CX1/2
