Snapper GC9520KW (84449) - 2x2 Grounds Cruiser Utility Vehicle, 9.5 HP, Series 0 Front Suspension Group Ricambi

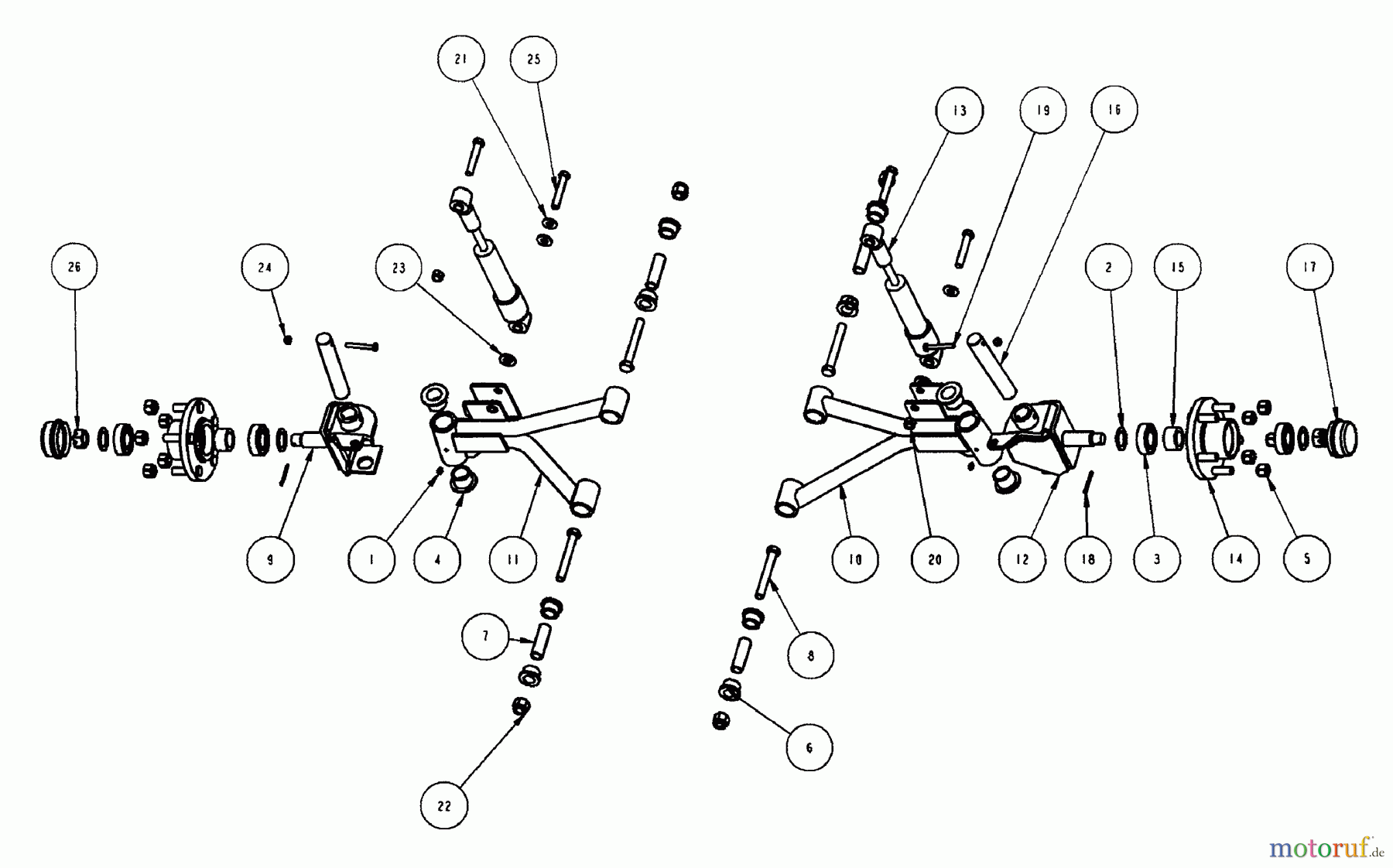

Front Suspension Group GC9520KW (84449) - Snapper 2x2 Grounds Cruiser Utility Vehicle, 9.5 HP, Series 0

Snapper Utility Vehicles GC9520KW (84449) - Snapper 2x2 Grounds Cruiser Utility Vehicle, 9.5 HP, Series 0 Front Suspension Group
PosizioneArticolo numeroDescrizione
1 BS7013864SMLUBE FITTING, 3/16 PR
2 BS7016561YPBUSHNG, MCH 1 X 1-1/2
3 BS7019572YPBEARING, BALL
4 BS7023556YPBUSHING, CASTER
5 BS7027192SMKLEMMMUTTER, 1/2-20 Y
6 BS7029258YPBUSHING, SUSPENSION
7 BS7029263YPSLEEVE, SUSPENSION
8 BS7029355YPHHCS, 1/2C X3-3/4
9 BS7058419YPSPINDLE, LH
10 BS7053445YPA-ARM ASSY, RH
11 BS7053444YPA-ARM ASSY, LH
12 BS7058485YPSPINDLE, RH
13 BS7072614
14 BS7072615YPHUB, FRONT
15 BS7072618YPSPCR, 1-1/2OD X 53/64
16 BS7072679YPROD, SPINDLE PIVO
17 BS7073120YPCAP, DUST
18 BS7091809YPPIN, COTTER 1/8 X 1.2
19 BS7090505YPHHCS, 1/4C X2 GR5 BZ
20 BS7090970YPHTLN, 7/16F GR.A ZP
21 BS7090517SMFW, .438X1X.084 YZ
22 BS7091325YPHLN, NYLON, 1/2C YZ
23 BS7091587SMUNTERLAGSCHEIBE, .531X1.062X.1
24 Snapper MUTTER, 1/4-20, NYLOCKBS703232MUTTER, 1/4-20, NYLOCK
25 BS7091703SM
26 BS7092038YPNUT, HX SLTTD, 3/4 G5
