Snapper RT2451 - Walk-Behind Trimmer RT2451 Frame Ricambi

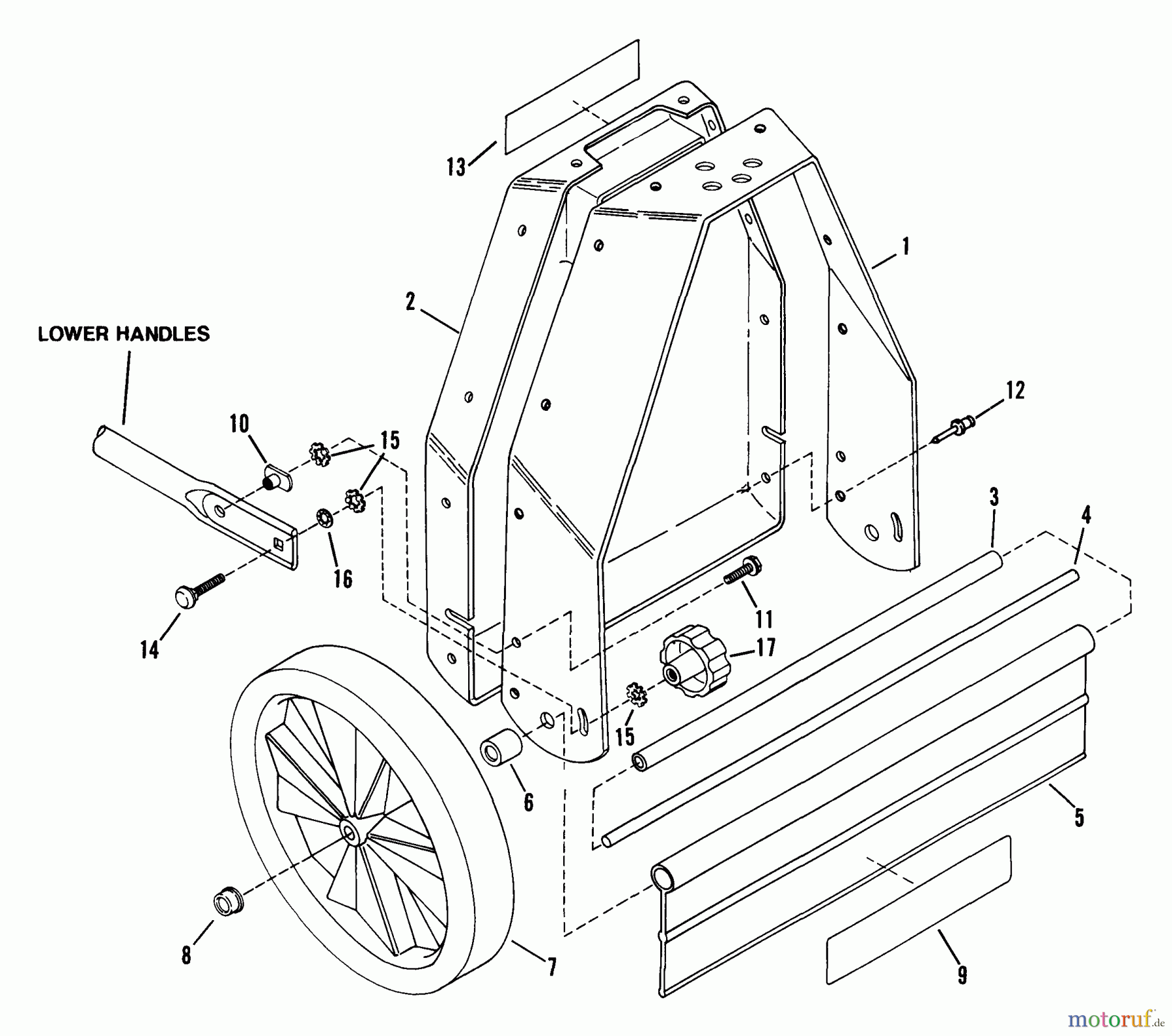

RT2451 Frame RT2451 - Snapper Walk-Behind Trimmer
| Posizione | Articolo numero | Descrizione | |
| 1 | BS33125 | ||
| 2 | BS17103 | ||
| 3 | BS7016294 | ||
| 4 | BS7038541 | ||
| 5 | BS19116 | ||
| 6 | BS7023508 | ||
| 7 | BS7017065YP | WHEEL,12X1.75-PLAS-RI | |
| 8 | BS7013024YP | RADKAPPE, 3/8 ID | |
| 9 | BS7044640YP | (C) DECAL, SNAPPER | |
| 10 | BS7090388YP | T-NUT, 5/16C | |
| 11 | BS7090721YP | CPSCW, LAG 5/16 X 1/2 | |
| 12 | BS17102 | ||
| 13 | BS16237 | ||
| 14 | BS703185 | RHSSNB | |
| 15 | BS703936 | WASHER, .325IDX.850OD | |
| 16 | BS703297 | RETAINER, GR5, 5/16 | |
| 17 | BS703065 | WINGKNOB, 5/16-18 | |
