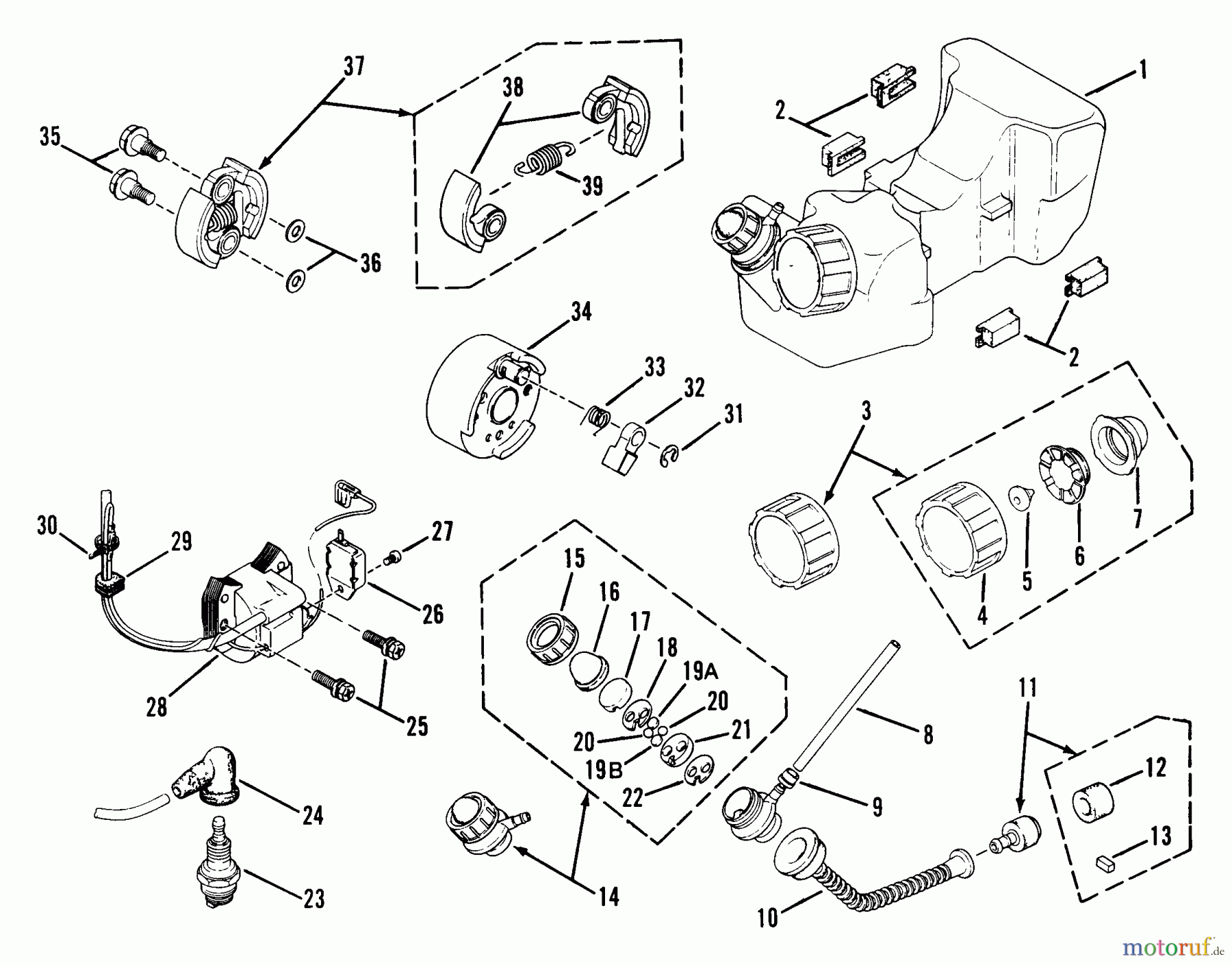

240SS Fuel Tank, Filter, Primer Pump, And Clutch Assmy 240SS - Snapper 24.1cc Straight Shaft Trimmer, Series 0
| Posizione | Articolo numero | Descrizione | |
| 1 | BS7044383 | ||
| 2 | BS7044382 | ||
| 3 | BS7044150 | ||
| 4 | BS7044150 | ||
| 5 | BS7044133 | ||
| 6 | BS7044134 | ||
| 7 | BS7044150 | ||
| 8 | BS7044381YP | TUBE, FUEL ## | |
| 9 | BS7044127YP | CLIP, FUEL PIPE | |
| 10 | BS7044238 | ||
| 11 | BS7044125YP | FUEL FILTER ASSY. | |
| 12 | BS7044143YP | FELT ## | |
| 13 | BS7044144 | ||
| 14 | BS7044129 | ||
| 15 | BS7044090 | ||
| 16 | BS7044118 | ||
| 17 | BS7044119YP | SEAT, VALVE B | |
| 18 | BS7044120 | ||
| 19A | BS7044121 | ||
| 19B | BS7044237 | ||
| 20 | BS7044122 | ||
| 21 | BS7044123 | ||
| 22 | BS7044124 | ||
| 23 | BS | Eingangswelle UE 600 | |
| 24 | BS7044150 | ||
| 25 | BS7044306 | ||
| 26 | BS7044391YP | TRANSISTOR IGNITION U | |
| 27 | BS7044390 | ||
| 28 | BS7044394YP | IGNITION COIL | |
| 29 | BS7044393 | ||
| 30 | BS7012080SM | CABLE TIE, 7.0 | |
| 31 | BS7044389 | ||
| 32 | BS7044388YP | RATCHET ## | |
| 33 | BS7044387YP | SPRING, RETURN ## | |
| 34 | BS7044386 | ||
| 35 | BS7044368 | ||
| 36 | BS7044370 | ||
| 37 | BS7044369YP | CLUTCH ASSY. ## | |
| 38 | BS7044366YP | SHOE, CLUTCH ## | |
| 39 | BS7044367 | ||
