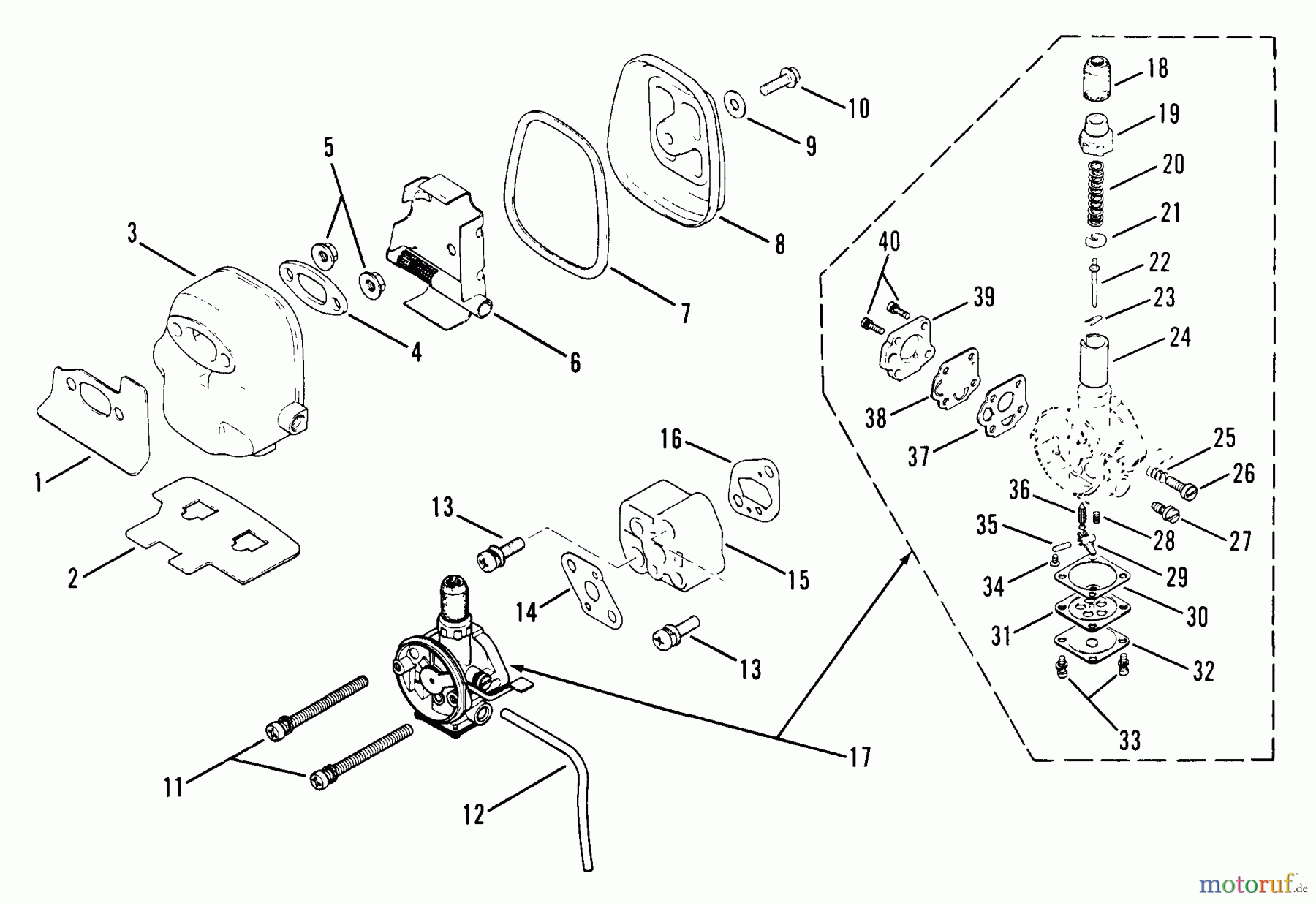

Snapper 240SS - 24.1cc Straight Shaft Trimmer, Series 0 240SS Carburetor Assmy And Engine Parts Ricambi

240SS Carburetor Assmy And Engine Parts 240SS - Snapper 24.1cc Straight Shaft Trimmer, Series 0

Snapper Trimmer, Motorsensen 240SS - Snapper 24.1cc Straight Shaft Trimmer, Series 0 240SS Carburetor Assmy And Engine Parts
PosizioneArticolo numeroDescrizione
1 BS7044356YPGASKET, MUFFLER
2 BS7044365
3 BS7044357
4 BS7044358YPPLATE, MUFFLER
5 BS7044359
6 BS7044360YPPLATE, ARRESTER #
7 BS7044361YPGASKET, MUFFLER ##
8 BS7044362YPCOVER, MUFFLER ##
9 BS7044363YPWASHER ##
10 BS7044364YPBOLT, FLANGE ##
11 BS7044056
12 BS7044330YPTUBE, FUEL ##
13 BS7044549YPSCREW & WASHER, CARB.
14 BS7044329YPGASKET, CARBURETOR
15 BS7044326
16 BS7044327YPGASKET, INSULATOR #
17 BS7044331
18 BS7044057
19 BS7044332YPCARB.CAP ##
20 BS7044333YPSPRING, THROTTLE #
21 BS7044334
22 BS7044335
23 BS7044336
24 BS7044337
25 BS7044338
26 BS7044339
27 BS7044340YPNEEDLE, MAIN ADJ
28 BS7044341YPSPRING, VALVE INLET
29 BS7044346
30 BS7044342YPGASKET, MAIN DIAPHRAG
31 BS7044348
32 BS7044349YPCOVER, MAIN DIAPHRAGM
33 BS7044078
34 BS7044076
35 BS7044347
36 BS7044073
37 BS7044345YPGASKET, PUMP COVER
38 BS7044344
39 BS7044343
40 BS7044069
