Snapper 214DCST - 21.2cc Double Curved Shaft Trimmer Main Assembly Ricambi

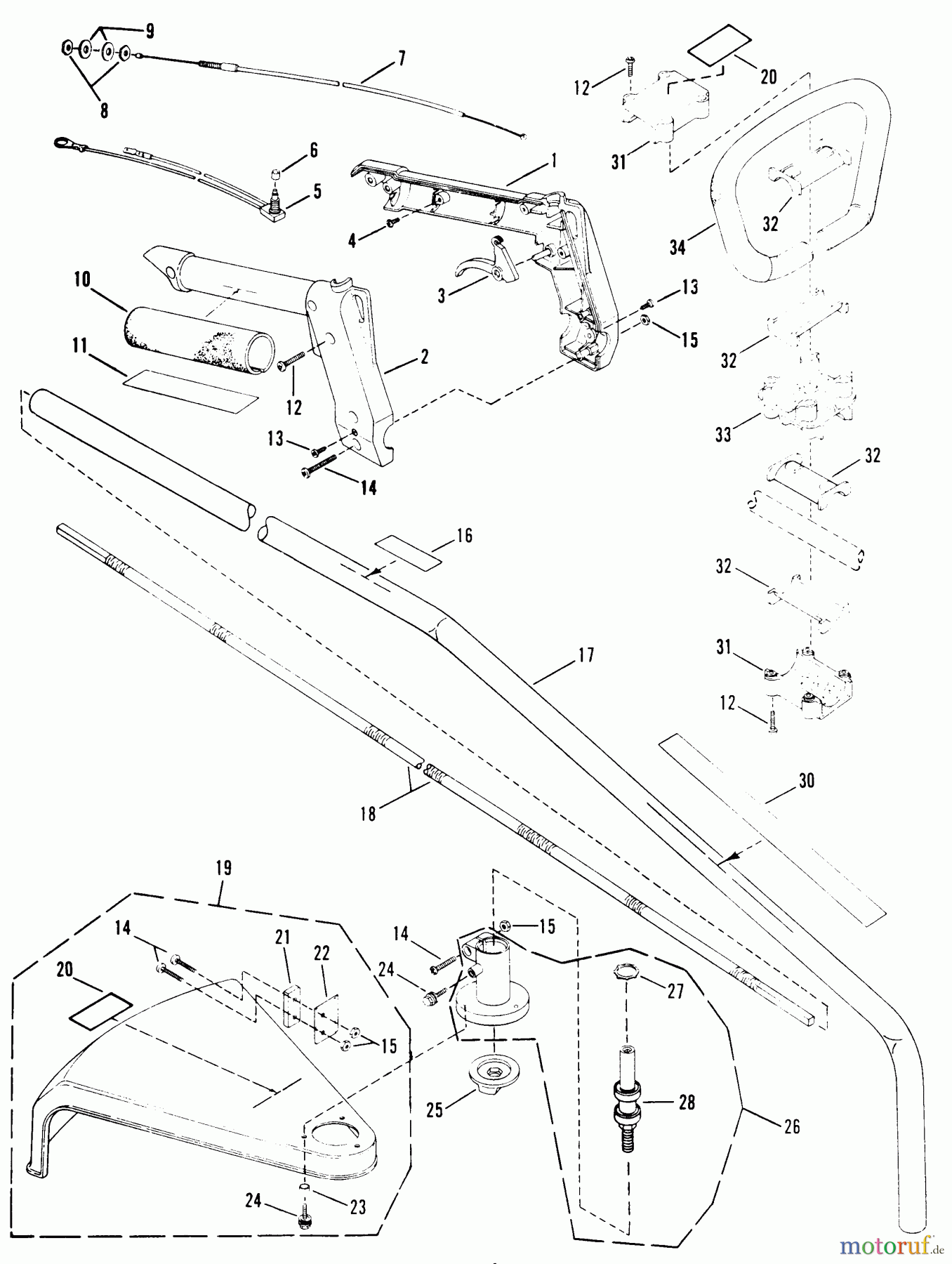

Main Assembly 214DCST - Snapper 21.2cc Double Curved Shaft Trimmer

Snapper Trimmer, Motorsensen 214DCST - Snapper 21.2cc Double Curved Shaft Trimmer Main Assembly
PosizioneArticolo numeroDescrizione
1 BS7019761YPHALF, HANDLE, LH
2 BS7017003YPHALF, HANDLE, RH
3 BS7018854YPTRIGGER, TRIMMER
4 BS7090957
5 BS7042304
6 BS7015620YPCAP, SWITCH
7 BS7042302YPTHROTTLE CONTROL
8 BS7042504
9 BS7042505
10 BS7015091
11 BS7015134YPADHESIVE STRIP
12 BS7090902YPPHST, Sternantrieb, #10-16 X3
13 BS7090900YPPHST, Sternantrieb, #6X5/16 G
14 BS7090901YPPHMS, Sternantrieb, #10F X7/8
15 BS7090885YPHLN, #10F BZ #
16 BS7023457
17 BS7057501
18 BS7042419
19 BS7016007YPSHIELD, PLASTIC
20 BS7015984YPDECAL ##
21 BS7015644YPBLOCK, MOUNTING
22 BS7015645YPLINE CUTTER, STRAIGHT
23 BS7015240YPSPACER, 6.7MM OD X5.3
24 BS7091075SMSCHRAUBE, SELF TAPPING
25 BS7018887YPSHIELD, DUST ##
26 BS7051791
27 BS7015768YPRETAINING RING, ID PU
28 BS7051791
30 BS7018886
31 BS7018909
32 BS7015739
33 BS7017001
34 BS7051671
