Snapper 5521FT (1695578) - Front Tine Tiller, 5.5 HP Engine Mount Group Ricambi

Engine Mount Group 5521FT (1695578) - Snapper Front Tine Tiller, 5.5 HP

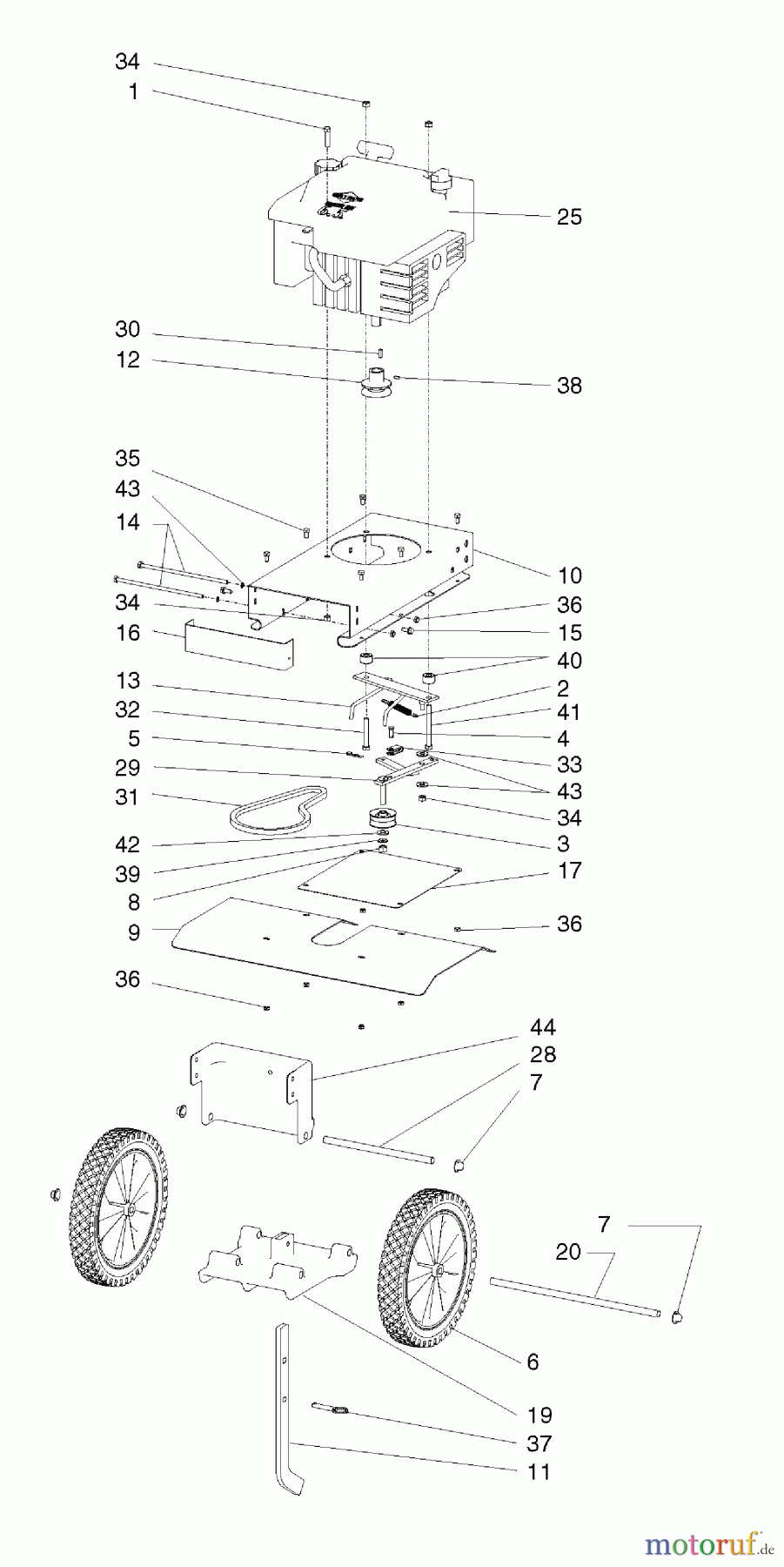

Snapper Motorhacken und Kultivierer 5521FT (1695578) - Snapper Front Tine Tiller, 5.5 HP Engine Mount Group
PosizioneArticolo numeroDescrizione
1 BS1921977SMCAPSCREW - HEX HD
2 BS1716802SM
3 BS1716805SM
4 BS1716702SM
5 BS1716703SM
6 BS1738774YP
7 BS703179PUSHNUT, CAP TYPE
8 BS703577NUT, HEX, 1/2-13
9 BS1738691YP
10 BS1738692
11 BS1738705YP
12 BS1738713
13 BS1738718YP
14 BS1960283SMCAPSCREW-HEX HD 1/4-
15 BS703466BOLT, GR5, 1/4X.0750
16 BS1738719YP
17 BS1738695YP
19 BS1738703YP
20 BS1738709YP
25 BS10T702-0124-B1
28 BS1738704YP
29 BS1738710YP
30 BS1716771YP
31 BS37X138MAANTRIEBSRIEMEN
32 BS7027174SMHHCS, 5/16C X 2 GR5
33 BS1716728SM
34 BS703164MUTTER
35 BS1921978
36 Snapper MUTTER, 1/4-20, NYLOCKBS703232MUTTER, 1/4-20, NYLOCK
37 BS1738771YP
38 BS1716758SM
39 BS018X31MAWASHER,SPLIT .37X.68X
40 BS1738775YP
41 BS1926106SMCAPSCREW-HEX HD 5/16-
42 BS703302U-SCHEIBE, 5/16
43 BS7090052SMSLW, .256X.487X.062 Z
44 BS1738898YP
