Snapper SS5220E (1695470) - 22" Snowthrower, 5 HP, Single Stage (2009) Auger and Housing Group Ricambi

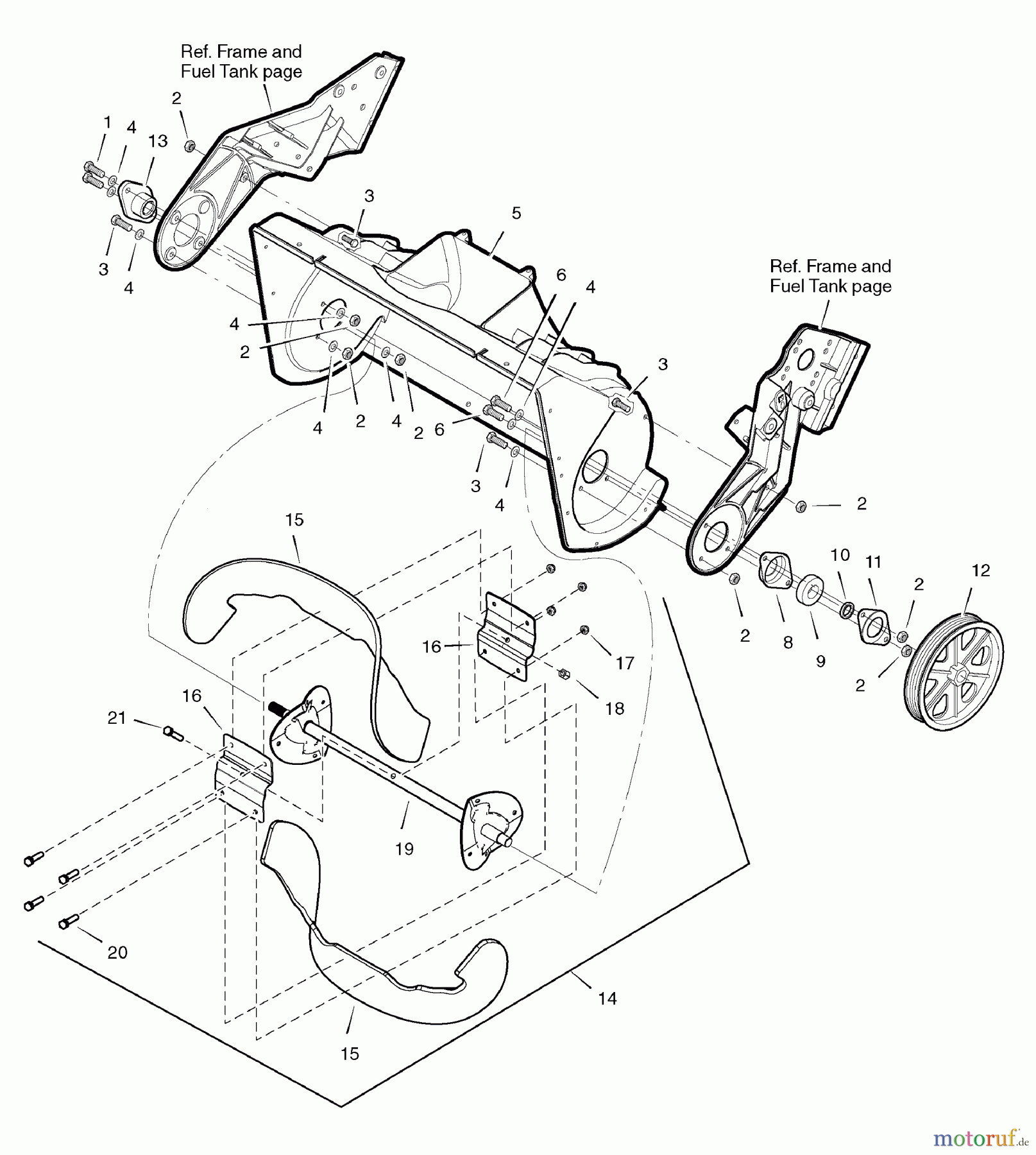

Auger and Housing Group SS5220E (1695470) - Snapper 22" Snowthrower, 5 HP, Single Stage (2009)

Snapper Schneefräsen SS5220E (1695470) - Snapper 22
PosizioneArticolo numeroDescrizione
1 BS710263MASCHRAUBE, 1/4-20X1.00 HH
2 BS1501216MAKIT,SHEAR BOLT.25-20X
3 BS703186BOLT,HEX
4 BS71067MAUNTERLEGSCHEIBE
5 BS1736375YPNESSERGEH. KOMPL.
6 BS579052MASCHRAUBE.25-20X0.62 HHC
8 BS580251MAHALTERUNG,LAGER YZ
9 BS043846MAGASGRIFF
10 BS578101MADISTANZBUCHSE .640X0.8
11 BS334287MAHALTEBLECH, LAGER SCHWARZ
12 BS333446MAPULLEY,POLYV 6OD 10RI
13 BS577023MALAGER, FLANSCH
14 BS1735771YPSPINDELMESSER KOMPL.
15 BS1735606YPSCHNECKENMESSER, SCHWARZ
16 BS1735609YPHALTER, SINDELMESSER
17 Snapper MUTTER, 1/4-20, NYLOCKBS703232MUTTER, 1/4-20, NYLOCK
18 BS1919438SM
19 BS1735610YPACHSE, UNTEN
20 BS5025299X8YPKAPPE SCHRAUBE
21 BS7091540YPSECHSK.SCHRAUBE, 5/16-18
