Snapper SS50220E (7800080) - 22" Snowthrower, 5 HP, Single Stage, Series 0 Body Covering Group Ricambi

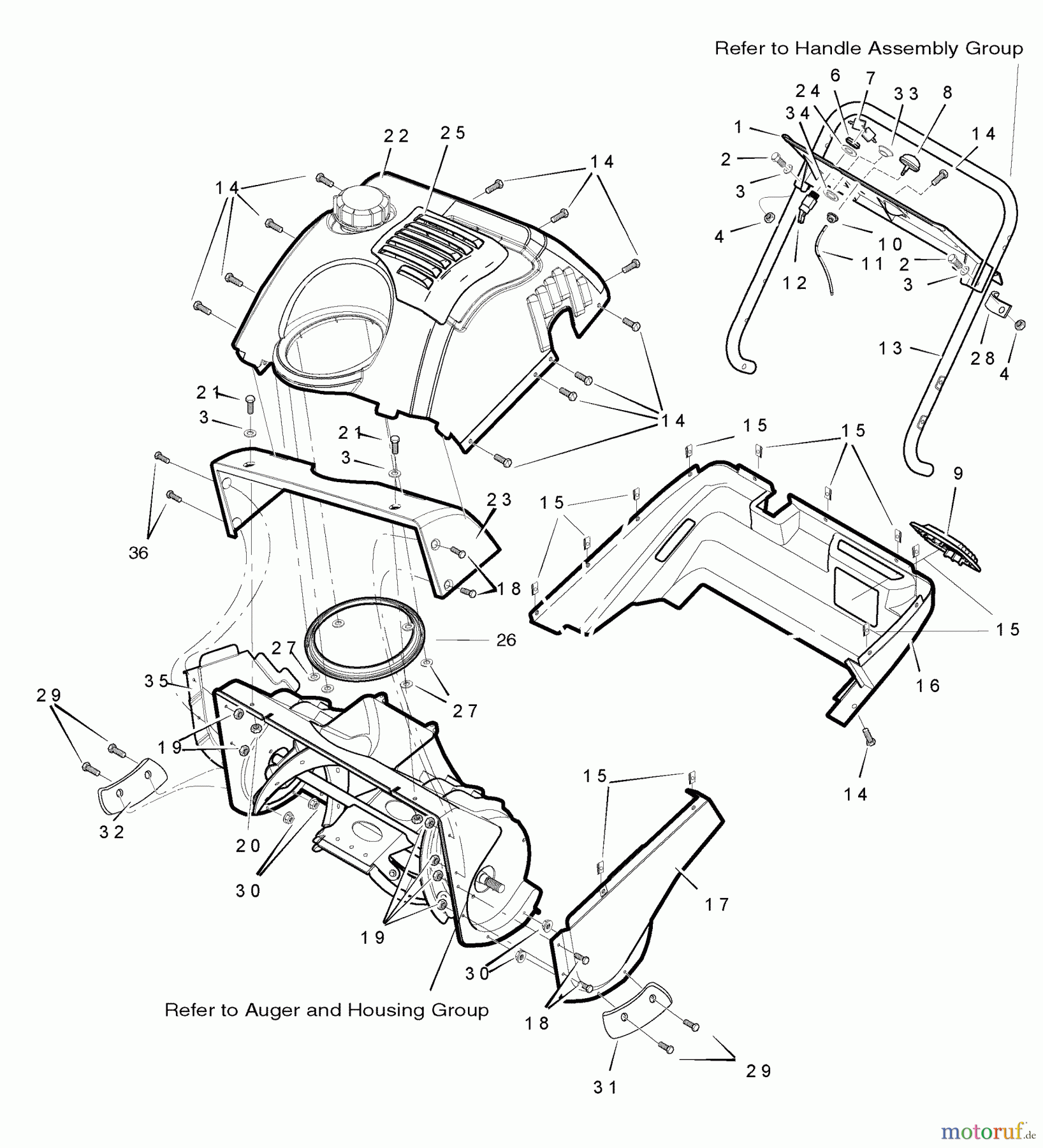

Body Covering Group SS50220E (7800080) - Snapper 22" Snowthrower, 5 HP, Single Stage, Series 0

Snapper Schneefräsen SS50220E (7800080) - Snapper 22
PosizioneArticolo numeroDescrizione
1 BS1740006MAPANEL, CONTROL
2 BS313674MASCREW, 1/4-20X1.25 HH
3 BS71067MAUNTERLEGSCHEIBE
4 BS1501216MAKIT,SHEAR BOLT.25-20X
6 BS300193MANUT.62-32 ACC #125 PL
7 BS392832VERWEIS ZU
8 BS394281SPRIMER-VERGASER
9 BS1501878MAPANEL, ACCESS
10 BS271172MAMUTTER, 1/4-20 REGHEXKEP
11 BS335507MAHOSE,PRIMER 9.50 LG
12 BS56992MAZUNDSCHALTER 45 DE
13 BS1501860E701MAASSY, GRIFF UNTEN
14 BS313685MASCHRAUBE, 1/4-14X .75 SL
15 BS578109MANUT, 1/4-10 SPEED J
16 BS1740004MAABDECKUNG, UNTEN
17 BS1740005MAAQNTRIEBSRIEMENVERKL.
18 BS12342MASCREW, 10-24X.50 WAHH
19 BS312300MAMUTTER,10-24 HEX CTRLK
20 BS7001278MACHUTE HDWARE KIT SEAR
21 BS1740383
22 BS1740351
23 BS1740007
24 BS313683MASCHEIBE 640-1.10
25 BS1740002MAPANEL, COVER ACCESS
26 BS1740020MAGASKET, CHUTE RING
27 BS028X85MANUT, PUSH
28 BS583435MAKLAMMER, KABEL 38 C951PC
29 BS1740381SMSCHRAUBE - 10-32X3/4
30 BS1740382SMNUT - 10-32 NYLOCK
31 BS1740397MASHOE, SKID - LH
32 BS1740398MASHOE, SKID - RH
33 BS1502074MASEILDURCHFUHRUNG
34 BS57587MAGUMMITULLE&SCHEIBE,SEILFUHRUNG
35 BS1740071SMCOVER - AUGER RH
